Barqan cable trays organise, support and protect power and control cabling across plants, utilities, warehouses and commercial buildings, and Alzab Algharbiyah supplies the range from Dammam to projects throughout Saudi Arabia. This category covers perforated trays, stainless steel SS316 trays, Sendzimir galvanized trays, cable ladders, FMD ladders, enclosed cable trunking and wire mesh trays in 100 mm and 400 mm widths, in hot-dip galvanized, stainless and aluminium construction tested to IEC 61537 and NEMA VE 1. The five Barqan categories are indexed on the Barqan brand page inside our wider products directory.
Perforated Cable Trays
Perforated trays are the standard for mixed low-voltage power and control runs where cables must stay ventilated and inspectable. The CT-P 100 heavy tray is a 100x60 mm section in 1.5 mm hot-dip galvanized steel supplied in 3 m lengths, with ventilation slots that release heat from bundled circuits. The CT-P 200 XL widens to 200x85 mm in 2.0 mm steel with a class 8B rating at a 2.4 m support span, which suits main distribution feeders on plant floors.
CT-S Stainless Steel SS316 Tray

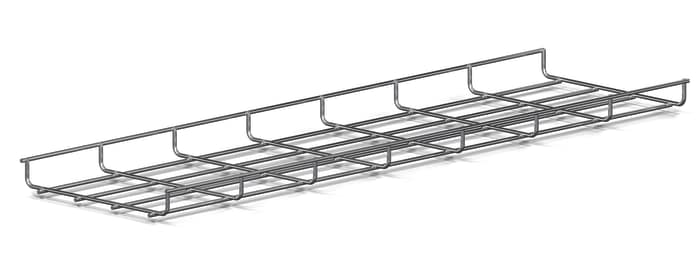

The CT-S 100 is a 100x30 mm stainless steel tray in 316 grade for 3 m runs, specified where coastal air, washdown duty or chemical exposure would shorten the life of galvanized steel; 304 grade is also available for less aggressive interiors.

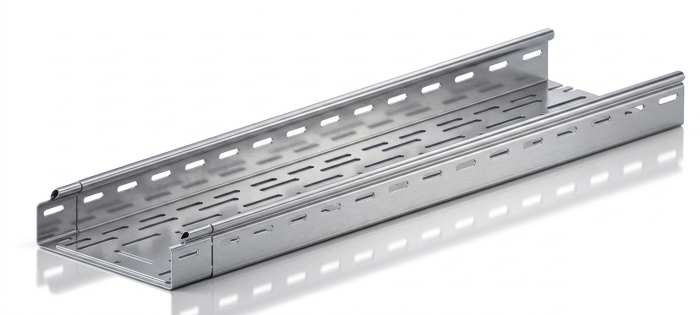

CT-P Sendzimir Light Duty Tray
The CT-P 300 is a 300x60 mm self-coupling tray in Sendzimir galvanized steel to EN 10346, with adhesive-backed corrosion resistance for commercial branch circuits that need wide, shallow routing.
Cable Ladders

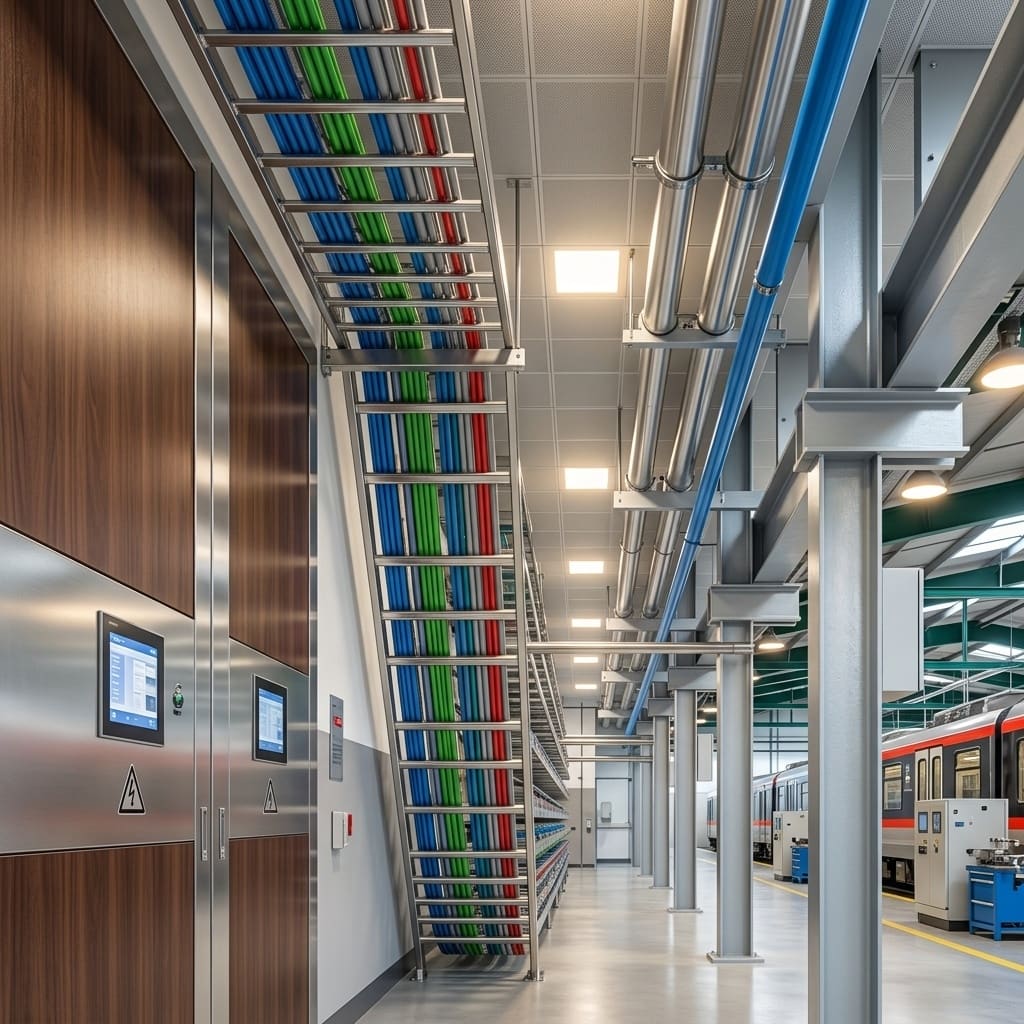

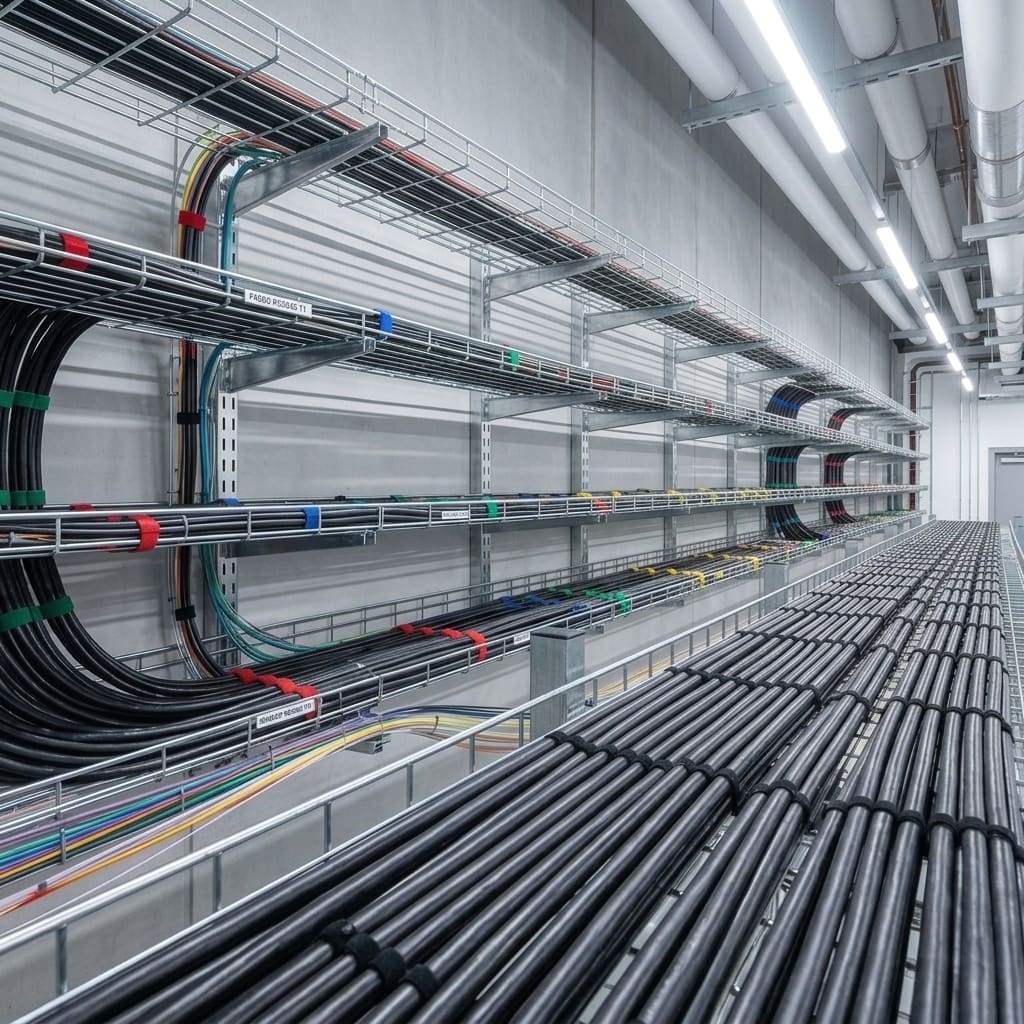

Cable ladders carry heavy feeders and vertical risers where a tray would flex. The CT-L 100 ladder uses 1.5 mm side rails with 125 mm rung spacing for medium feeders, while the CT-L 300 heavy duty ladder steps up to 2.0 mm rails and a class 8C rating for spans of up to 6 m between supports on high and medium voltage routes, with 304 and 316 stainless options.

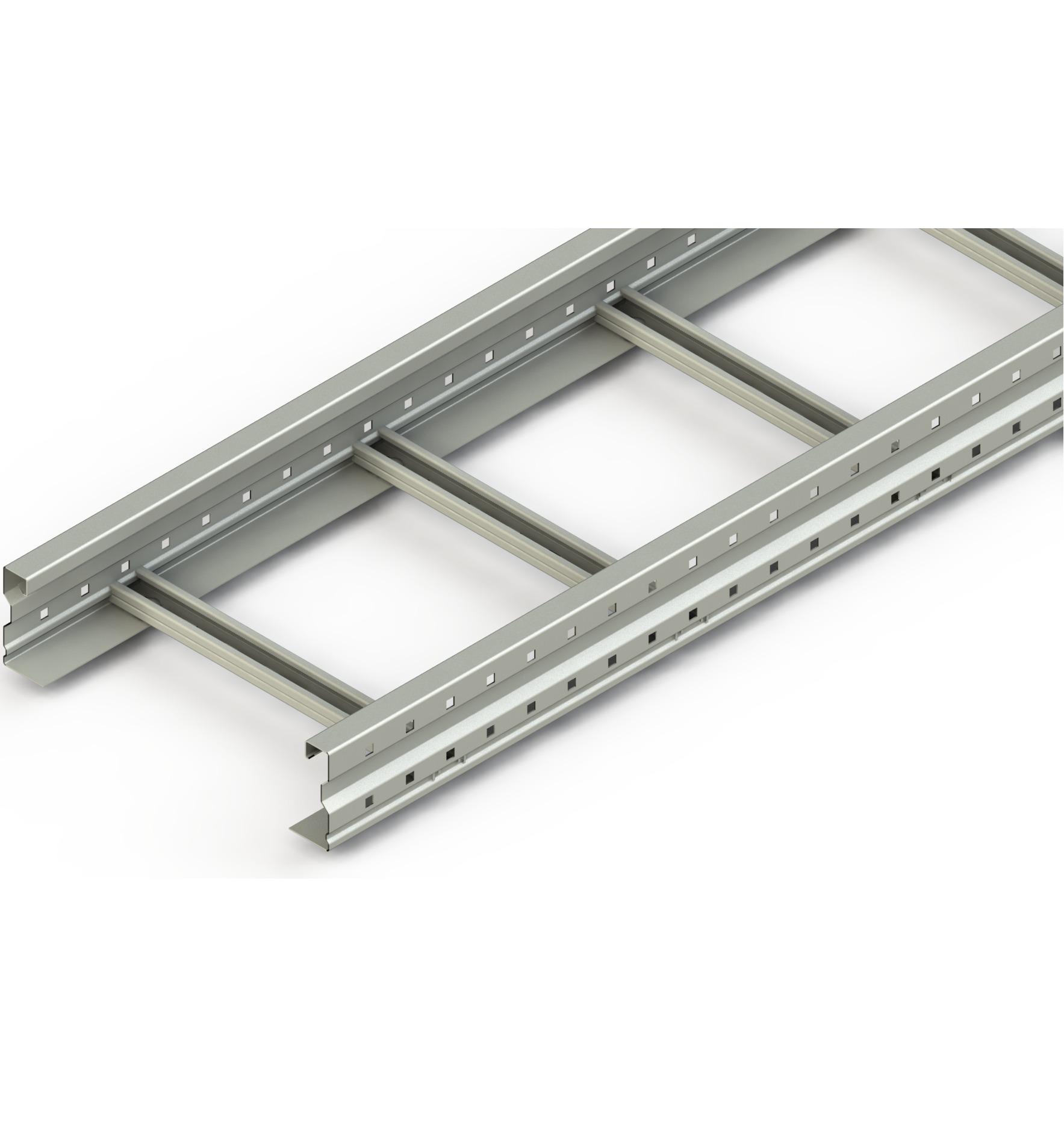

CT-L 200 FMD Cable Ladder
The CT-L 200 FMD ladder is a 200x100 mm section with a click-in rung system, ten rungs per 3 m length and vibration and seismic resistance for long-span feeders that must be assembled quickly and stay rigid.
Cable Trunking

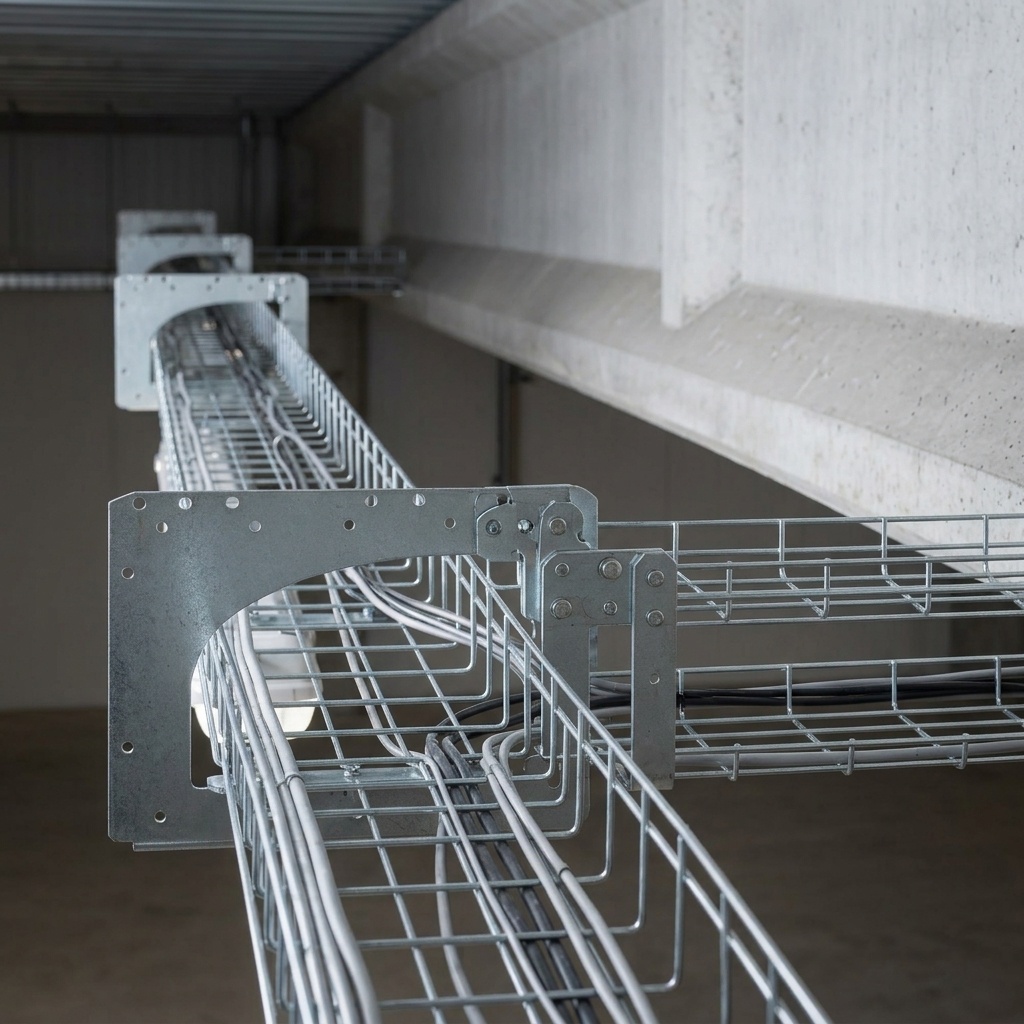

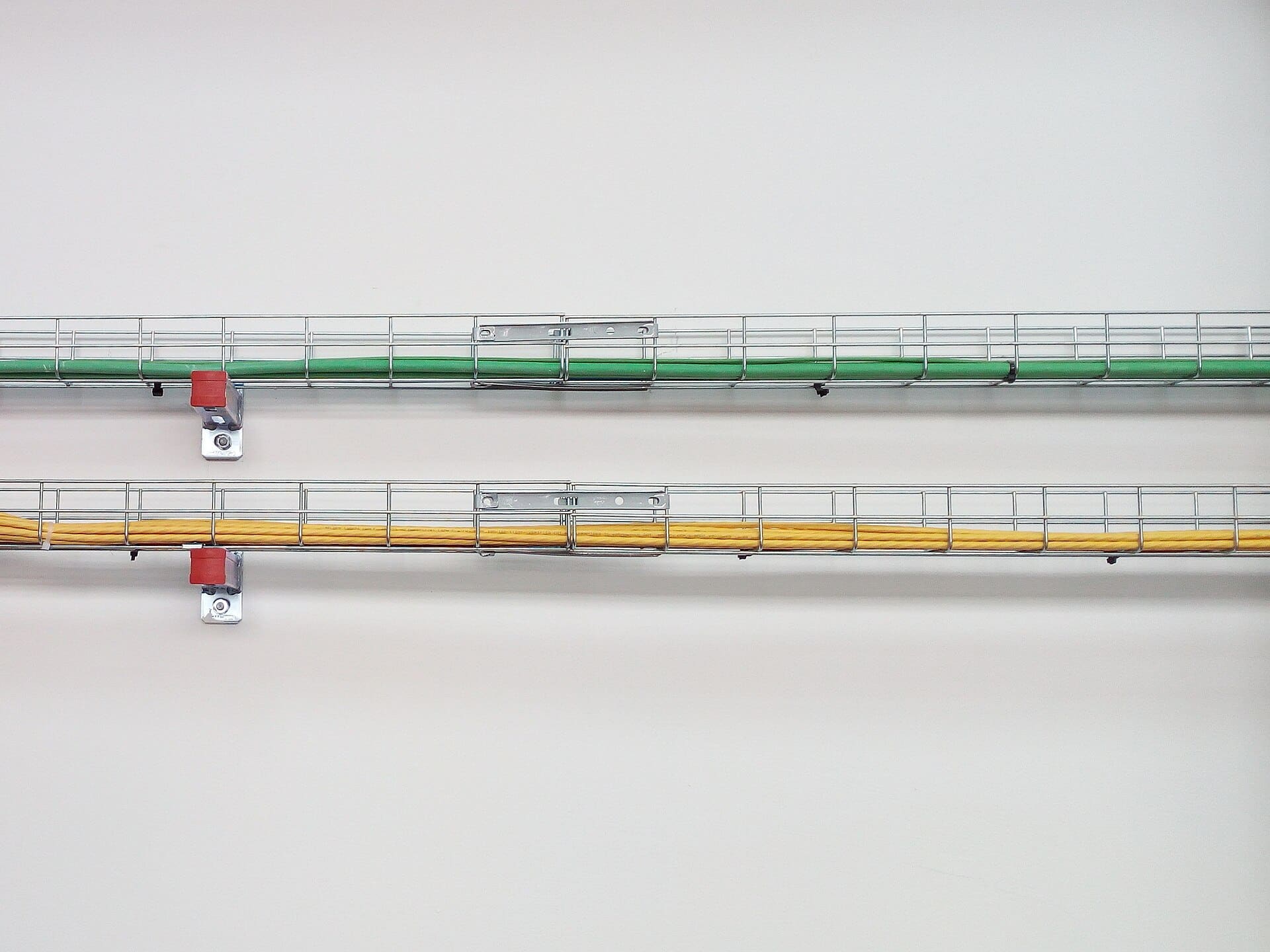

Enclosed trunking finishes visible wiring runs in offices and commercial fit-outs. The CT-T 50 is a 50x50 mm box section with a removable perforated cover and knock-out entries, while the CT-T 100 is a 100x50 mm section with a hinged lid, an optional gasket for dusty areas and internal barriers that separate power and data compartments.
Wire Mesh Trays

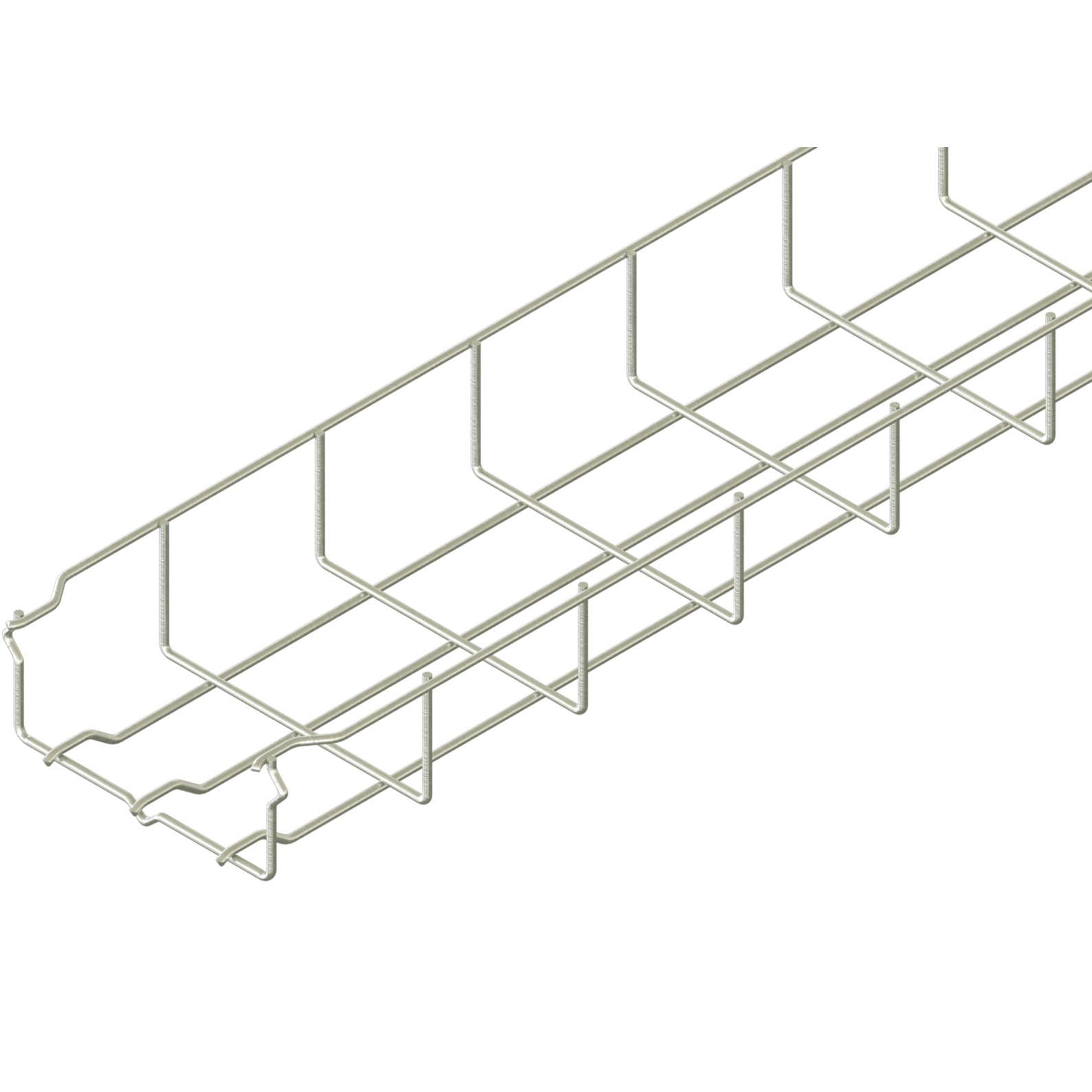

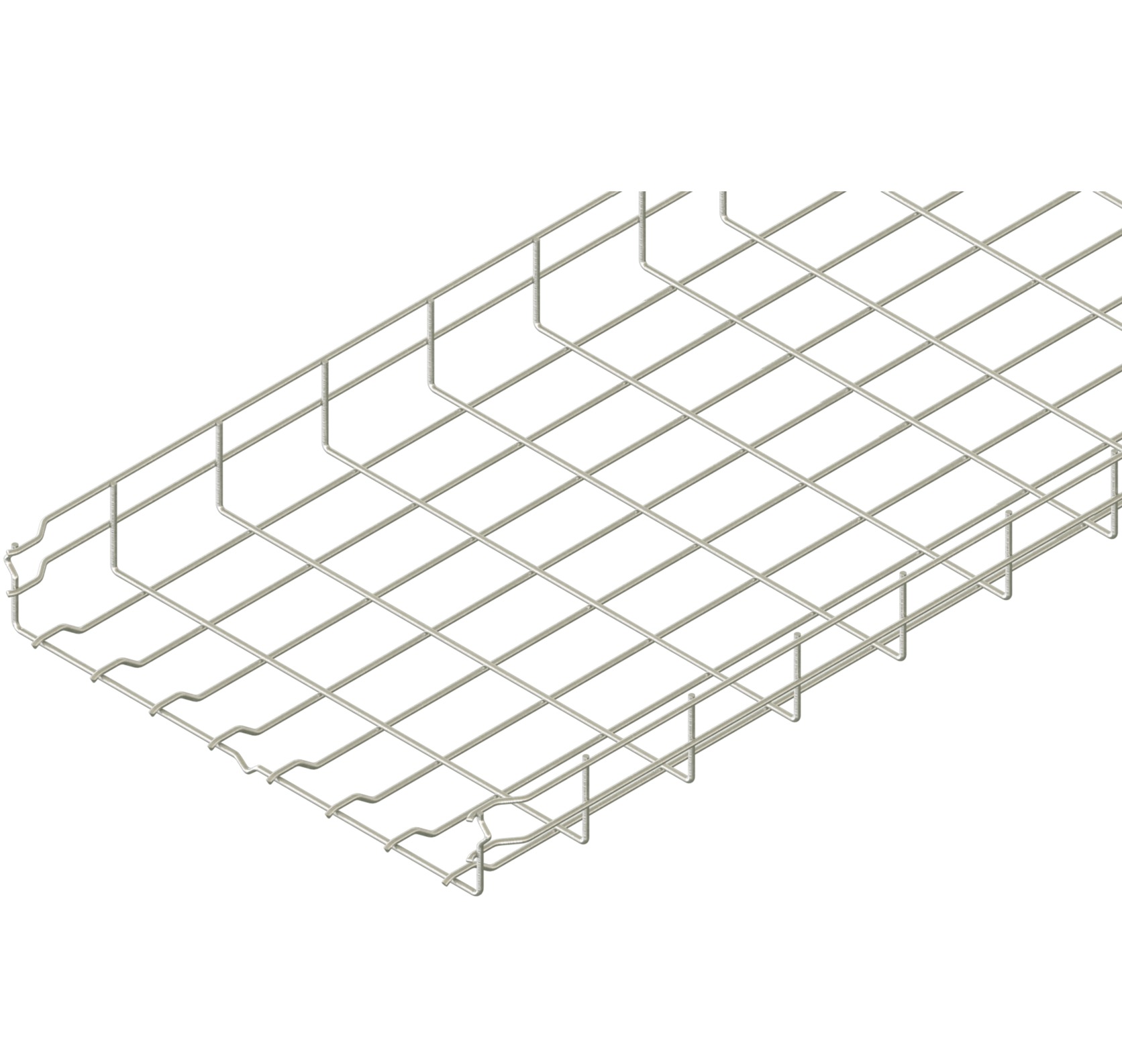

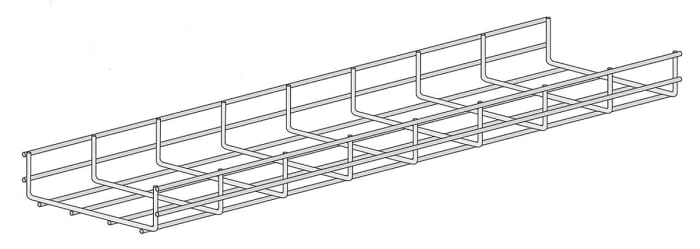

Wire mesh trays route data and low-voltage cabling that is added to or changed often. The CT-M 150 uses 4 mm stainless 304 wire with snap-fit joints that need no separate connectors, and the wire is cut and bent on site for tight indoor runs. The CT-M 100 deep wire basket is electrogalvanized at 100x60 mm in 3 m sections joined with clamp couplers, and the CT-M 400 heavy tray uses 5 mm hot-dip galvanized wire at 400x60 mm for harsh and outdoor environments.
Alzab has specified cable support systems on more than 500 projects since 1989, and our team can match tray material, finish and load class to your route drawing. For the second containment half of the same installation, see the Barqan conduit systems category, and for trays, ladders, industrial ducts and support structures from a German alternative, compare OBO Bettermann KTS cable support systems. Request a quote for your project schedule.
