Light Fixtures

Complete industrial and commercial lighting for Barqan installations — LED high bays, stadium and sports floodlights, heavy-duty luminaires, road and tunnel lights, downlights, spotlights and landscape fixtures from HansaGreen and global brands, for projects across Saudi Arabia.

Back to Barqan

High Bay & Industrial Bay Lights

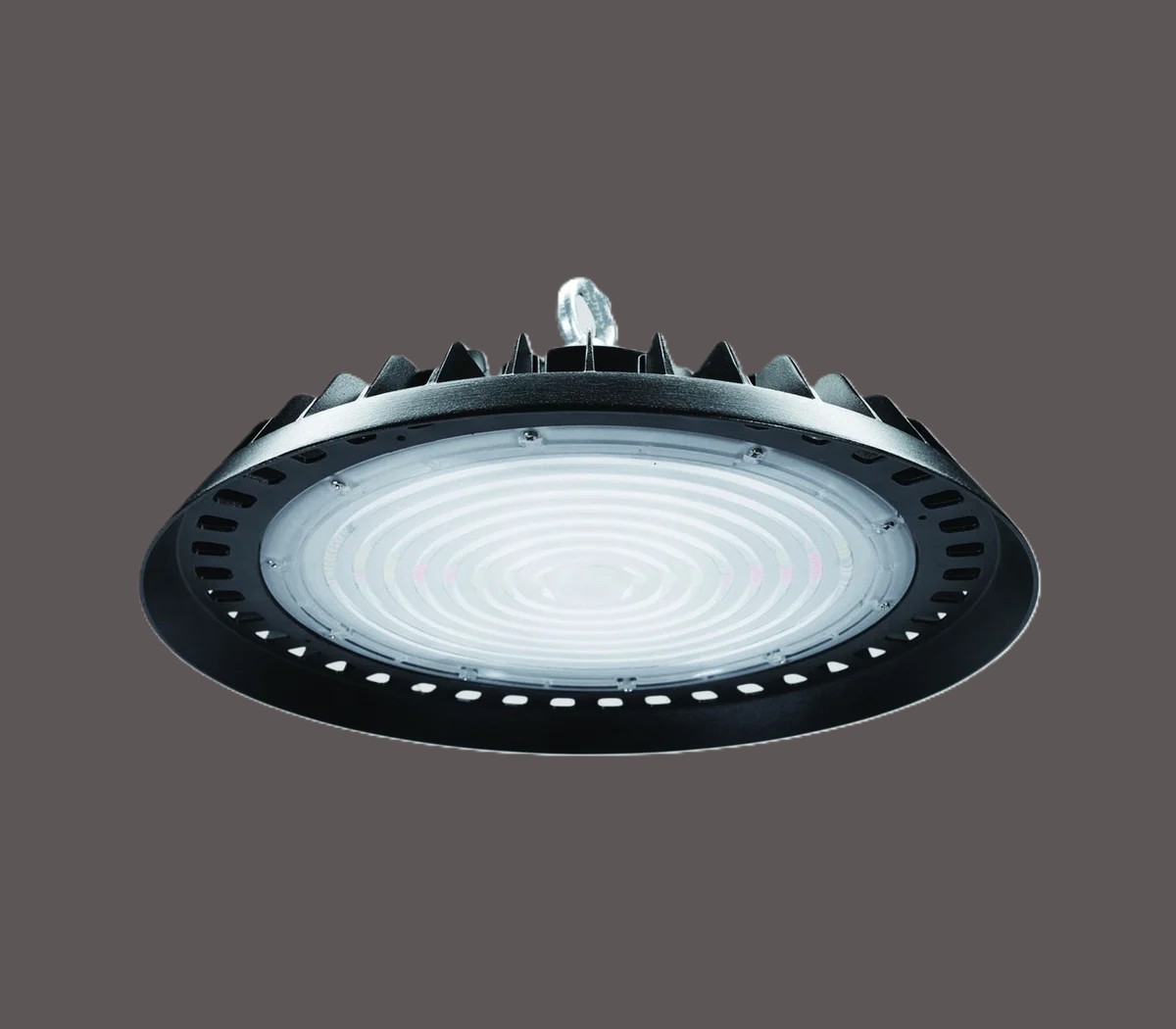

Barqan Vector UFO High Bay Highbay

Barqan Vector UFO High Bay

UFO highbay of 14,000-28,000 lm at 140 lm/W with multiple beam options and tool-free hanging, IP65/IK08.

  • Multiple beam options
  • Tool-free hanging
  • High impact resistant body
IP65 IK08 140 lm/W 14,000 - 28,000 lm 83° - 85°

Models: HBL-UFO-100 / HBL-UFO-150 / HBL-UFO-200

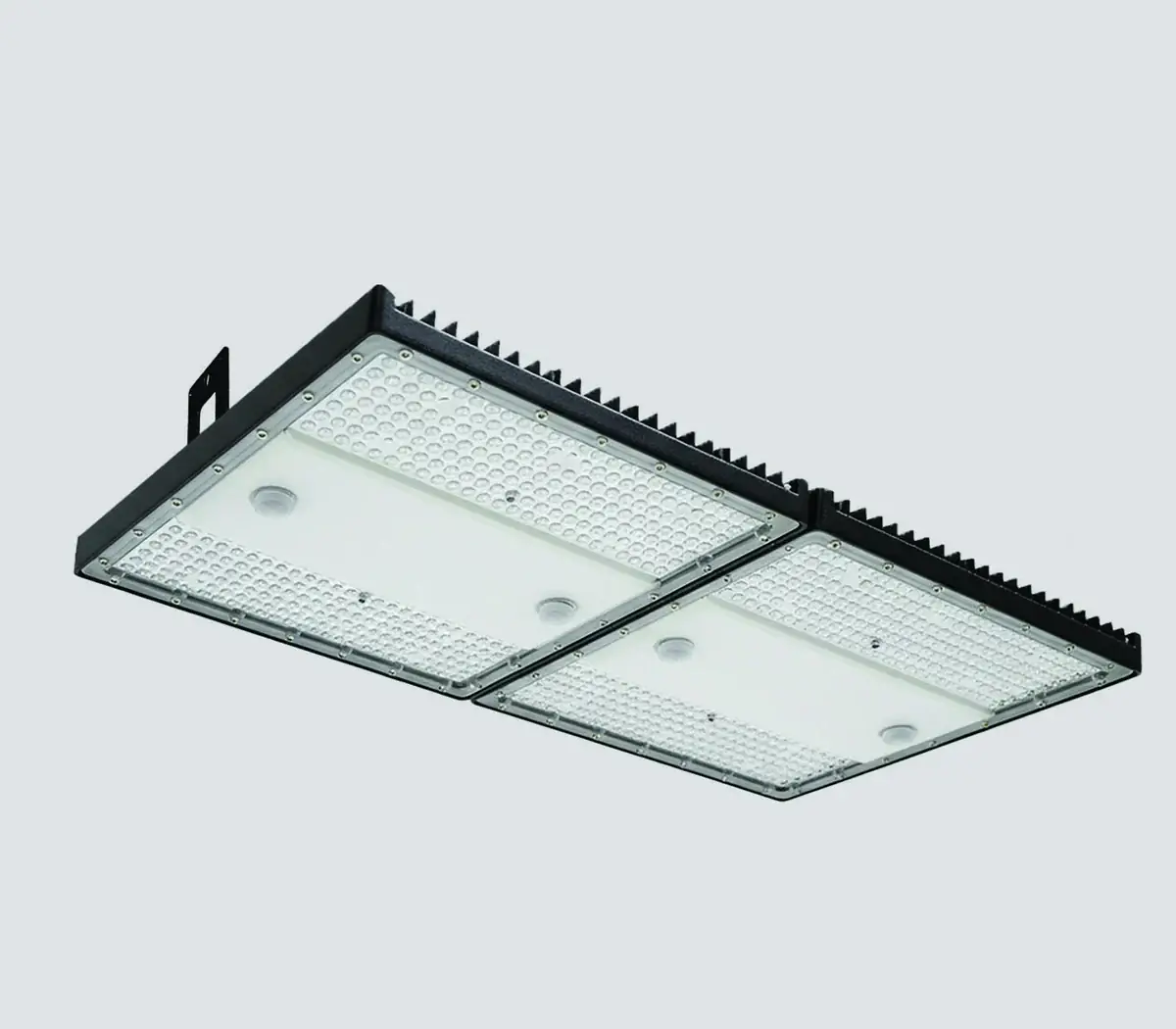

Barqan Vector Line High Bay Highbay

Barqan Vector Line High Bay

Linear highbay delivering 12,000-36,000 lm at 140 lm/W with tool-free hanging and IP65/IK08 sealing.

  • Tool-free hanging
  • High heat dissipation
  • High impact resistant body
IP65 IK08 140 lm/W 12,000 - 36,000 lm 70° - 104°

Models: HBL-CBL-100 / HBL-CBL-200 / HBL-CBL-300

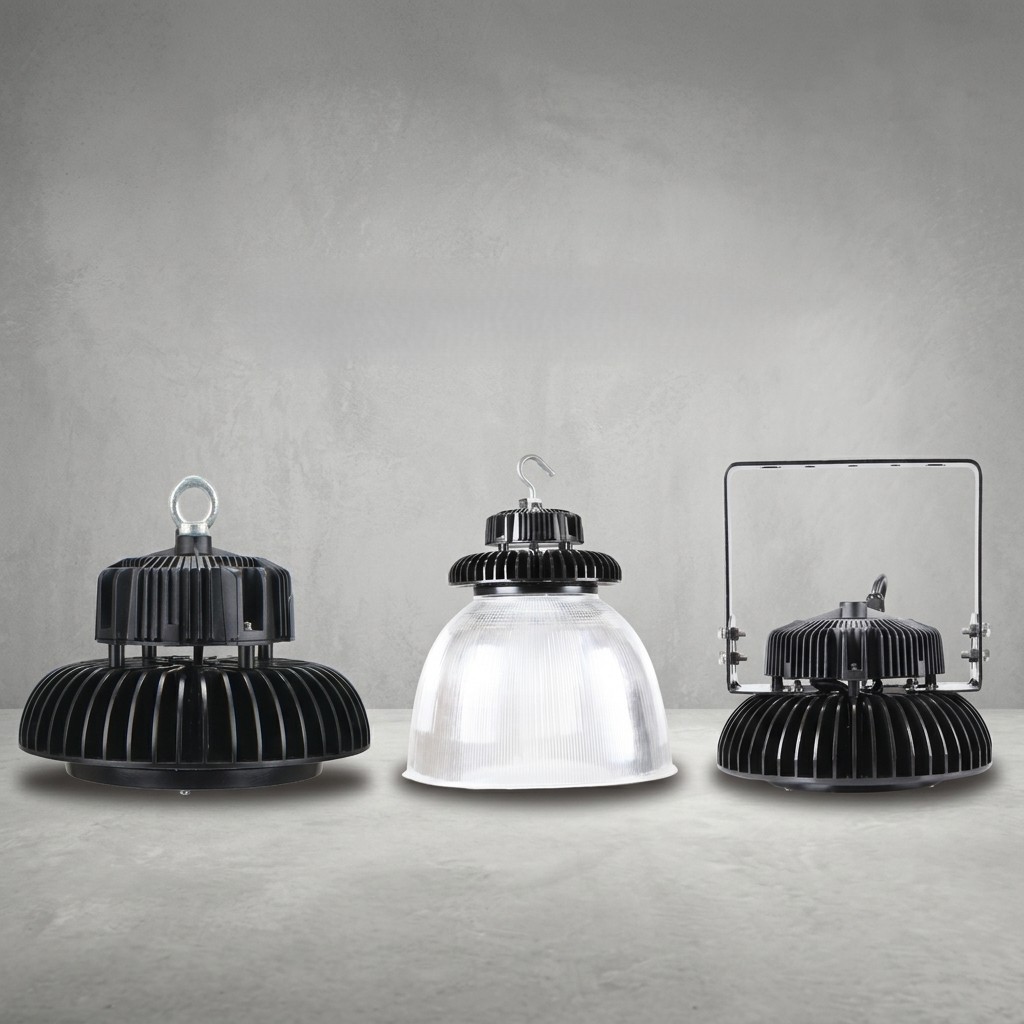

UFO LED High Bay 150W

UFO LED High Bay 150W

150W UFO high bay, 21,000 lm at 140 lm/W, 5000K, IP65/IK08, die-cast aluminium heatsink; warehouses, factories and retail halls.

150W21,000 lmIP65

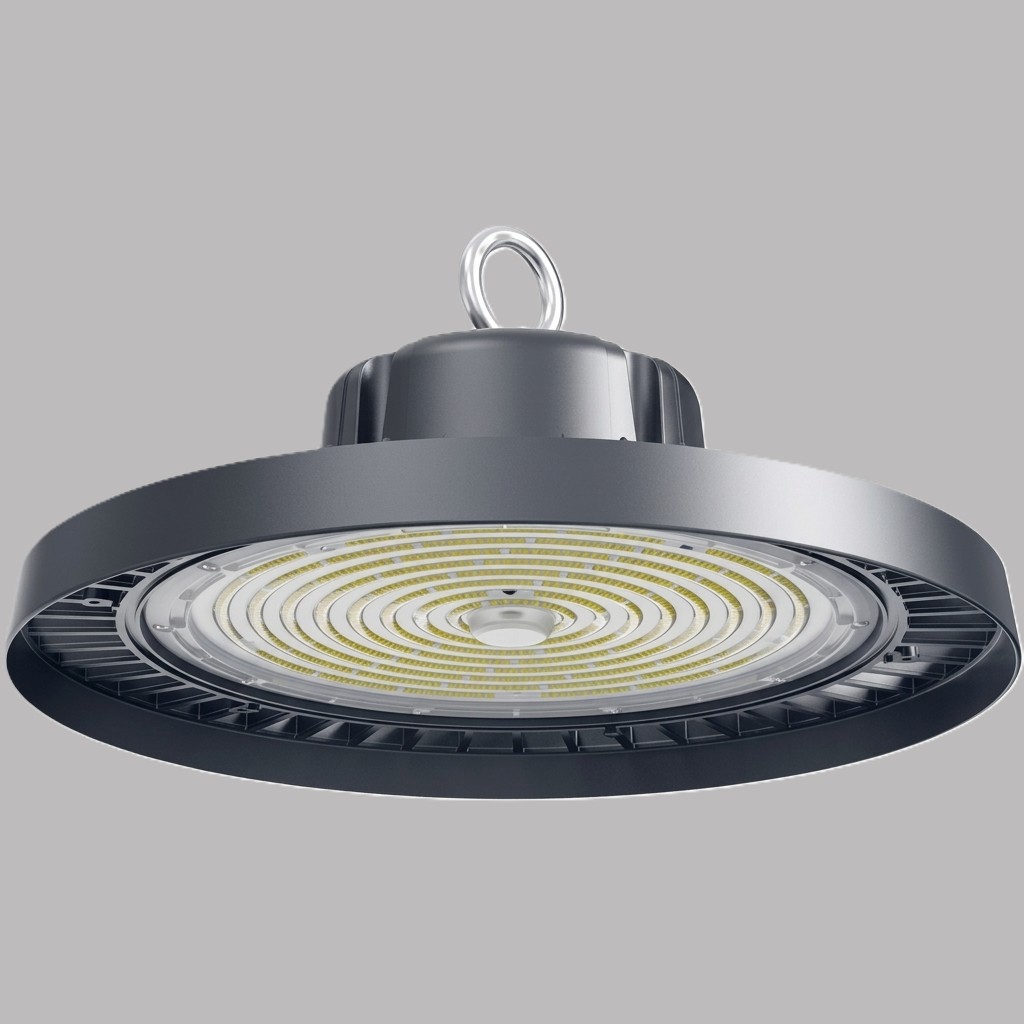

Barqan Vector LED High Bay 100-500W

Barqan Vector LED High Bay 100-500W

Round UFO high bay with 100-500W selectable power, 30/60/90/120° optics, waterproof breather vent, 0-10V dimming and microwave or infrared sensing; warehouses, factories and logistics halls.

100-500WIP650-10V30-120°

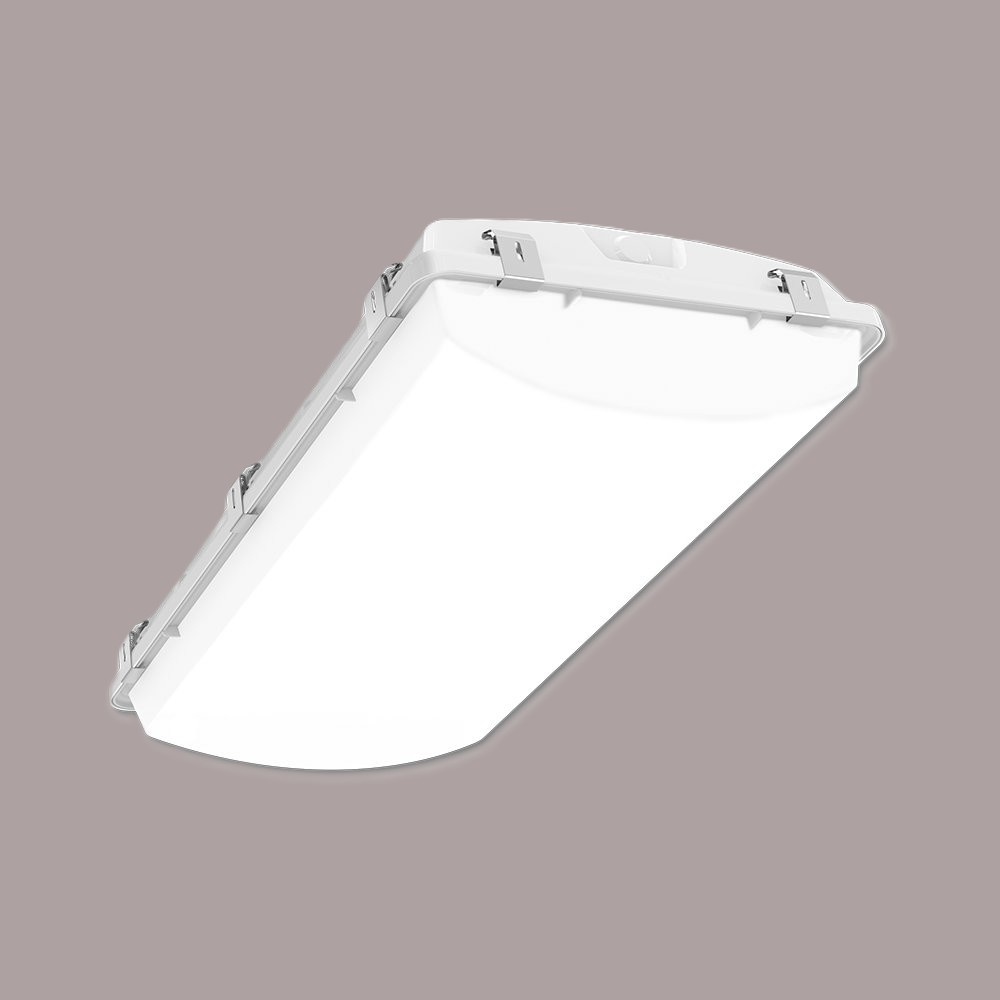

Barqan Vector Vapor-Tight High Bay

Barqan Vector Vapor-Tight High Bay

IP65/IP67 vapor-tight high bay in one-piece reinforced housing; >140 lm/W, 8,000-30,000 lm, NSF listed for food processing, parking garages and wash-down areas.

IP65/IP67NSF>140 lm/WL80 60,000h

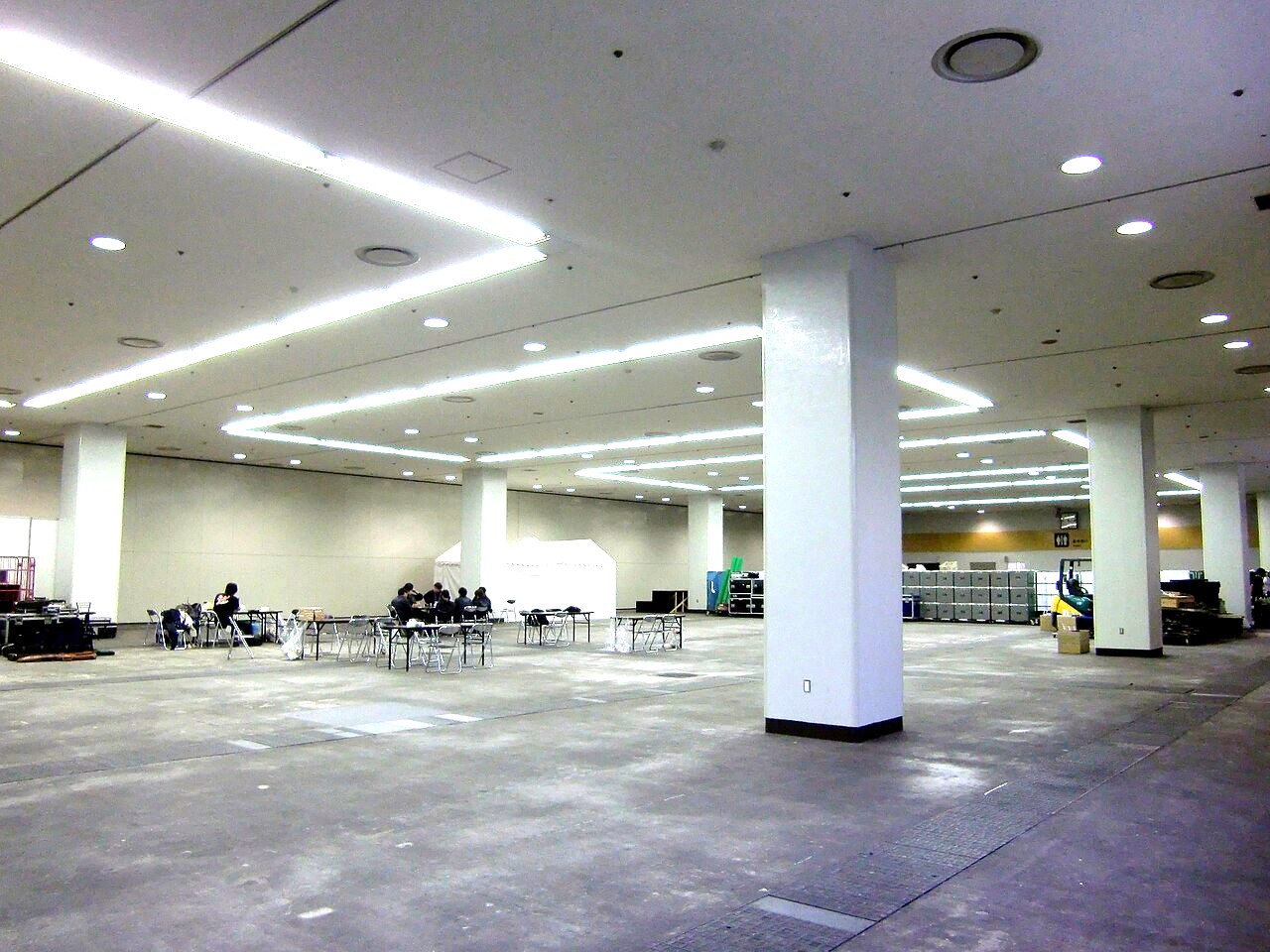

Linear LED High Bay 100W

Linear LED High Bay 100W

100W linear bay with batwing optics for narrow warehouse aisles; 14,000 lm, 1–10V dimming, powder-coated steel body.

100WAisle Optics1–10V

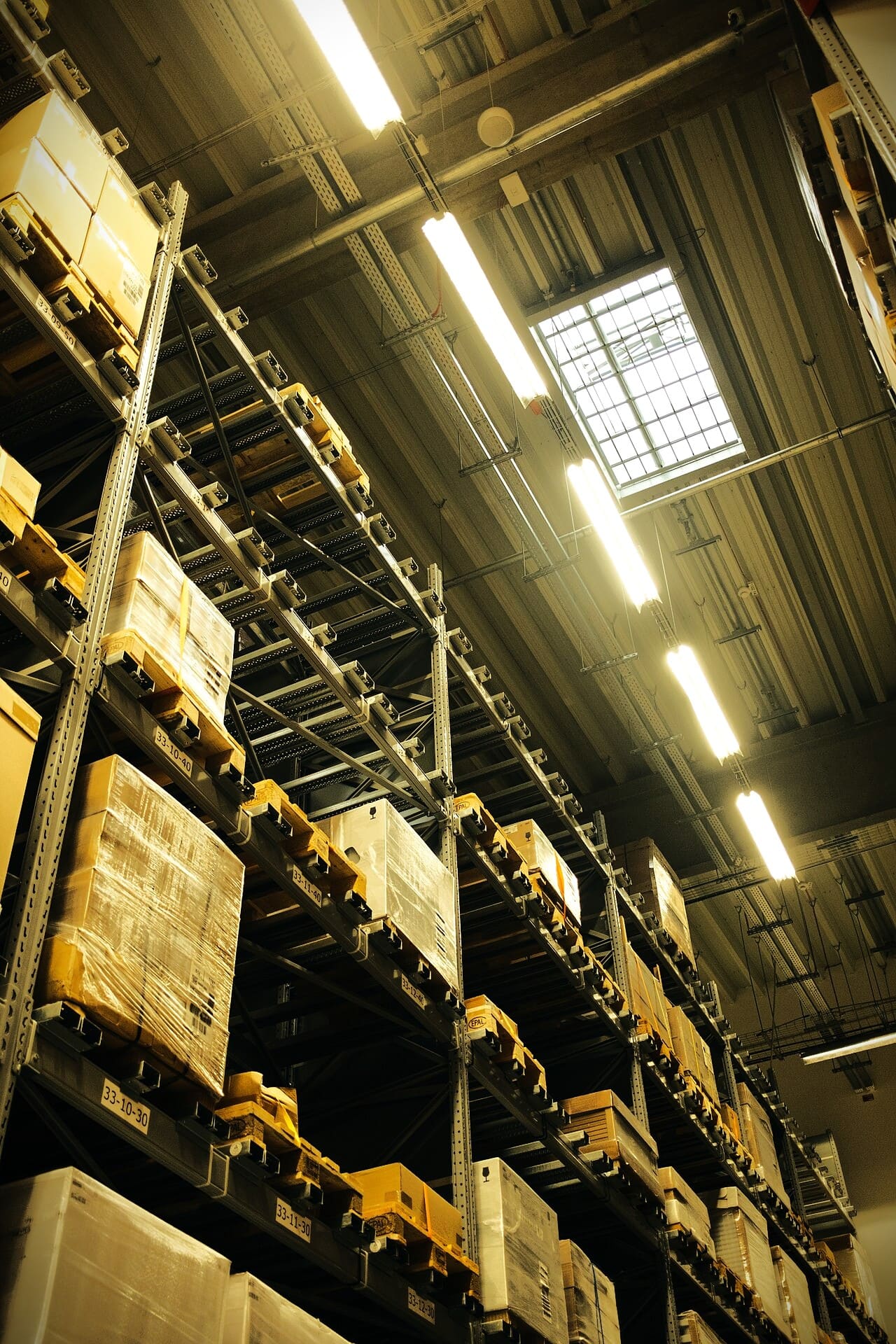

Warehouse Aisle Bay 120W

Warehouse Aisle Bay 120W

120W narrow-beam aisle luminaire for pallet racking; 16,800 lm, IP54, 3000/4000K.

120WPallet RackingIP54

Barqan light fixtures cover the exterior and industrial side of a project: LED highbays, stadium and sports lighting, high-power floodlights, heavy-duty industrial luminaires, road and tunnel fittings, retrofit kits and architectural downlights and spotlights. Alzab supplies the range from Dammam across Saudi Arabia, every family sits under the Barqan brand page in our products directory, and schedules can be issued through our team.

High Bay and Industrial Bay Lights

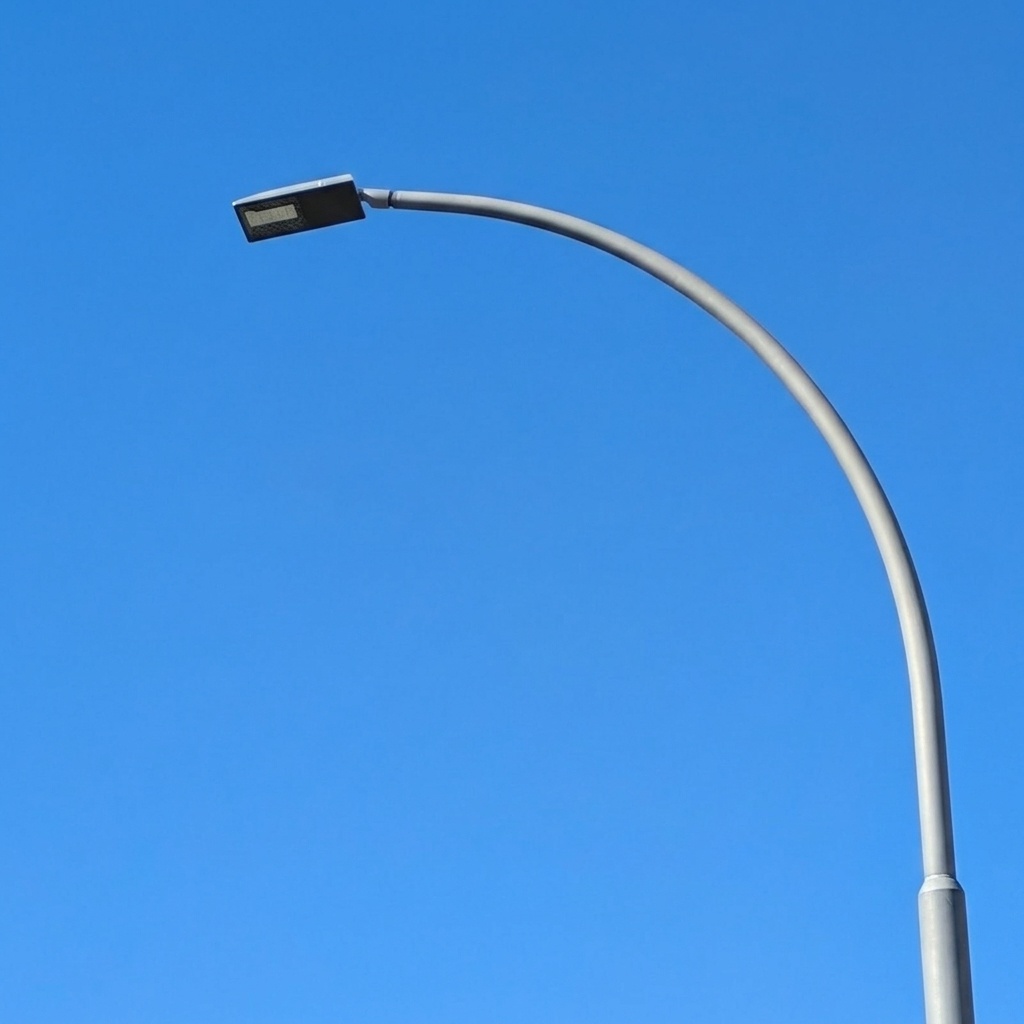

The highbay group runs from the Barqan Vector UFO high bay at 14,000 to 28,000 lm and 140 lm/W with tool-free hanging and IP65/IK08 sealing, to the Vector line high bay at 12,000 to 36,000 lm. A 150W UFO unit delivers 21,000 lm at 5000K for warehouses and retail halls, the Vector HB40 covers 100 to 500W, and the vapor-tight variant is NSF listed for food processing and washdown areas. Aisle and linear versions handle pallet racking with batwing optics and 1-10V dimming, and a 150W high bay LED retrofit kit replaces existing HID lamps.

Stadium and Sports Lighting

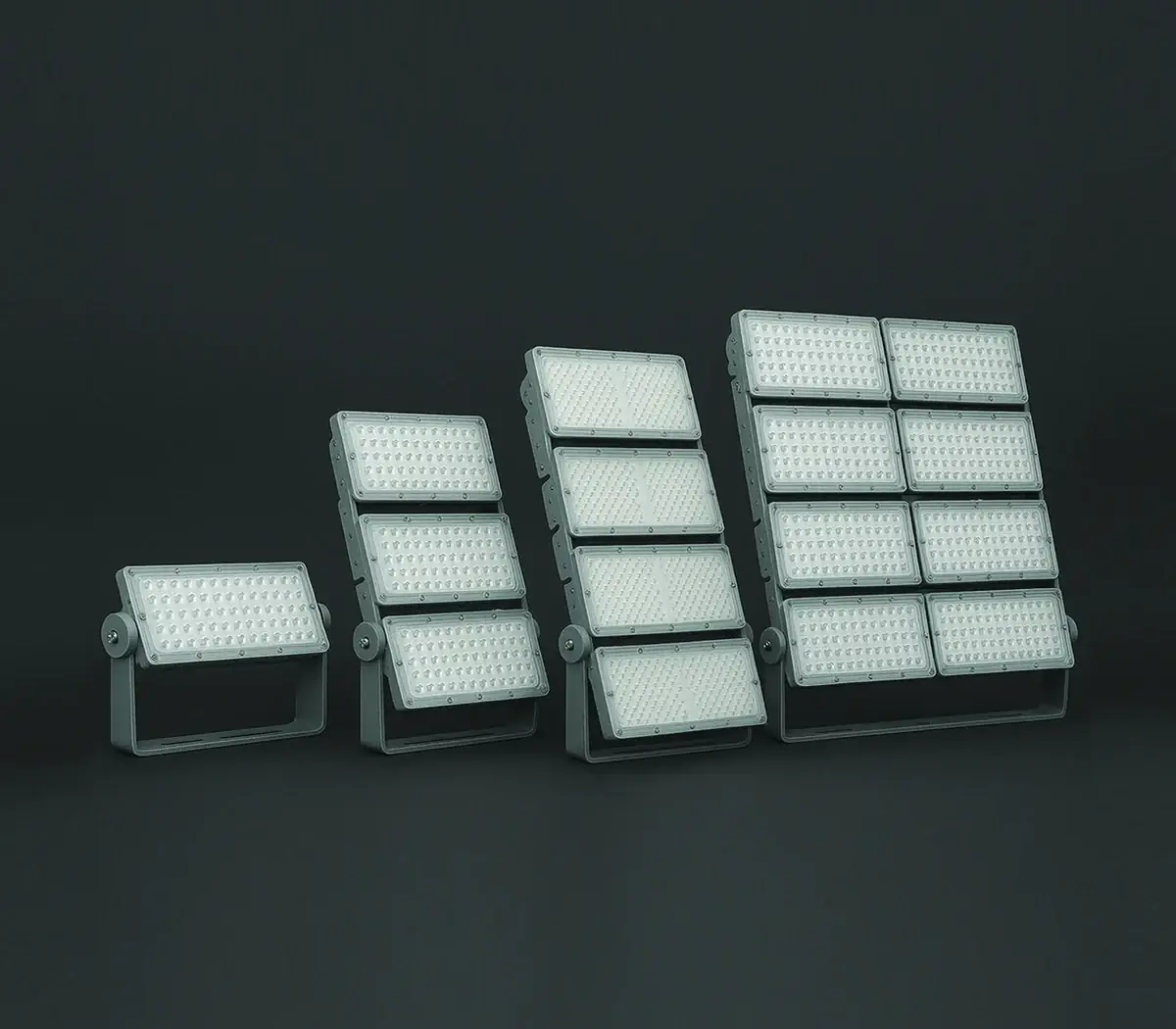

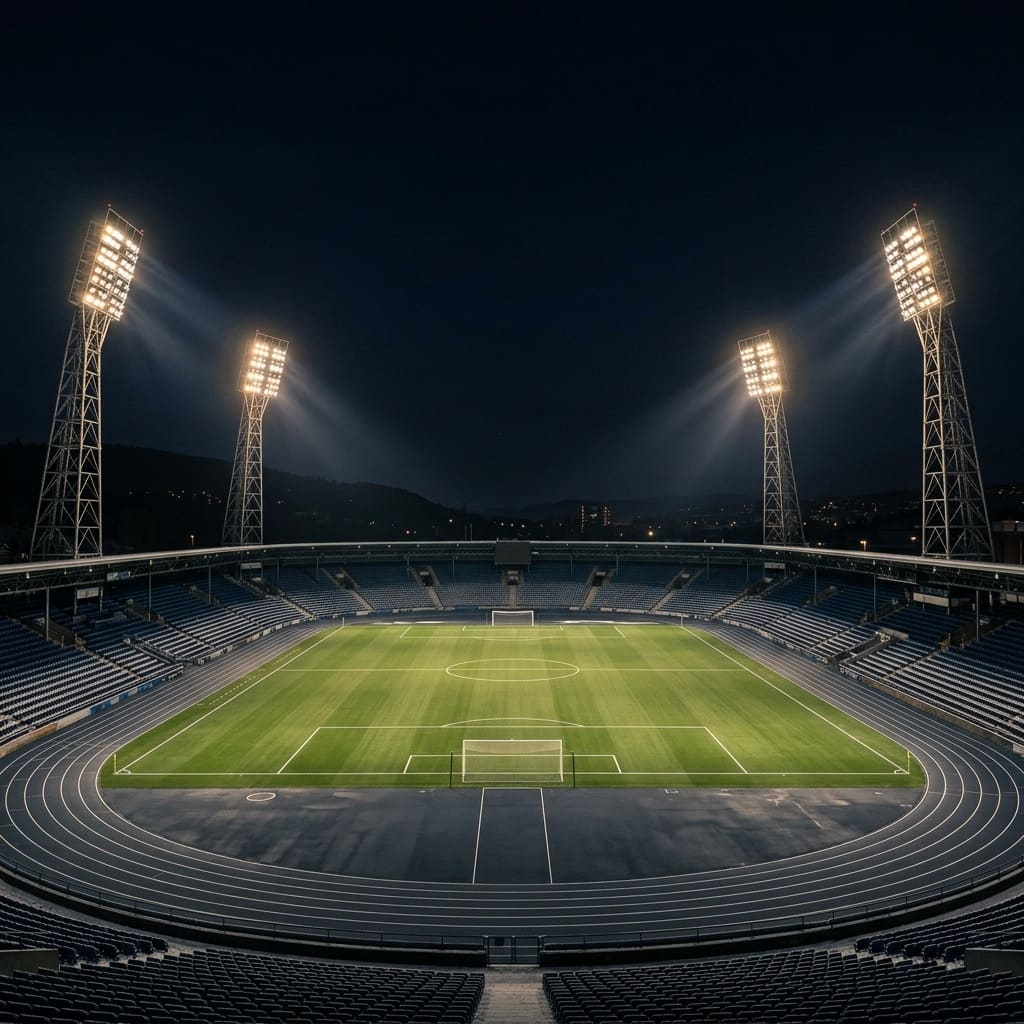

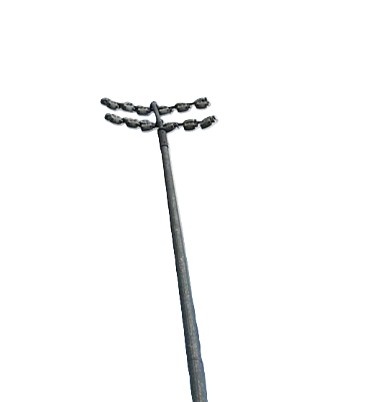

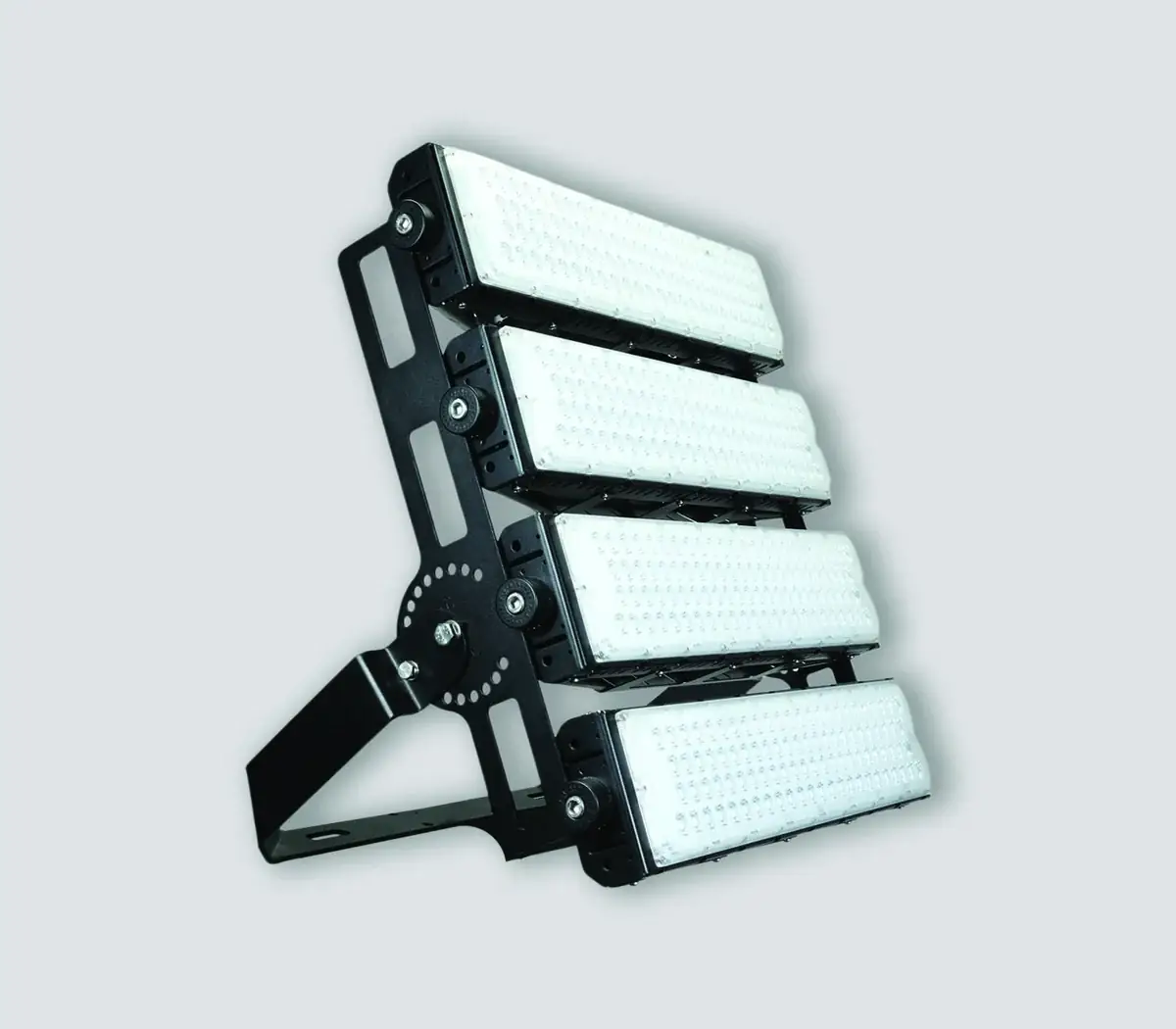

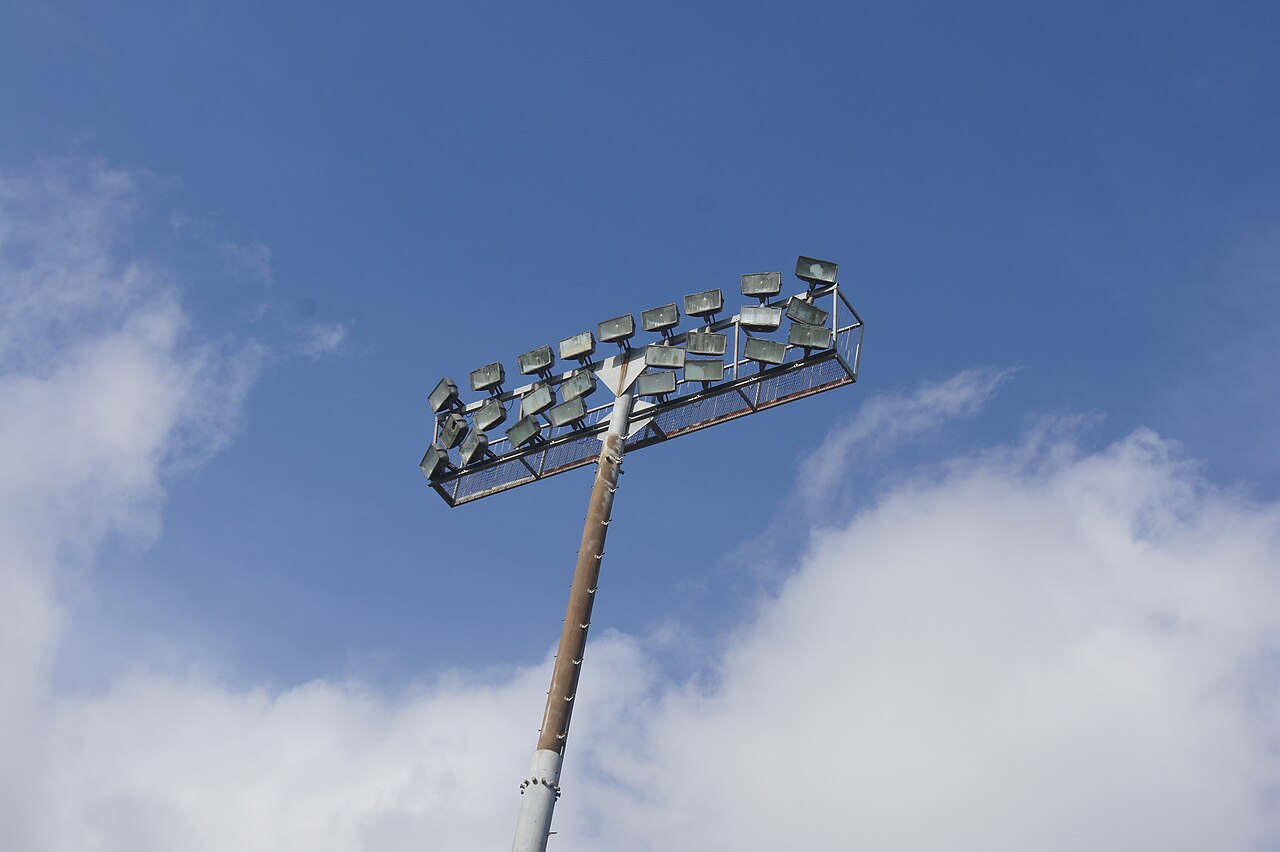

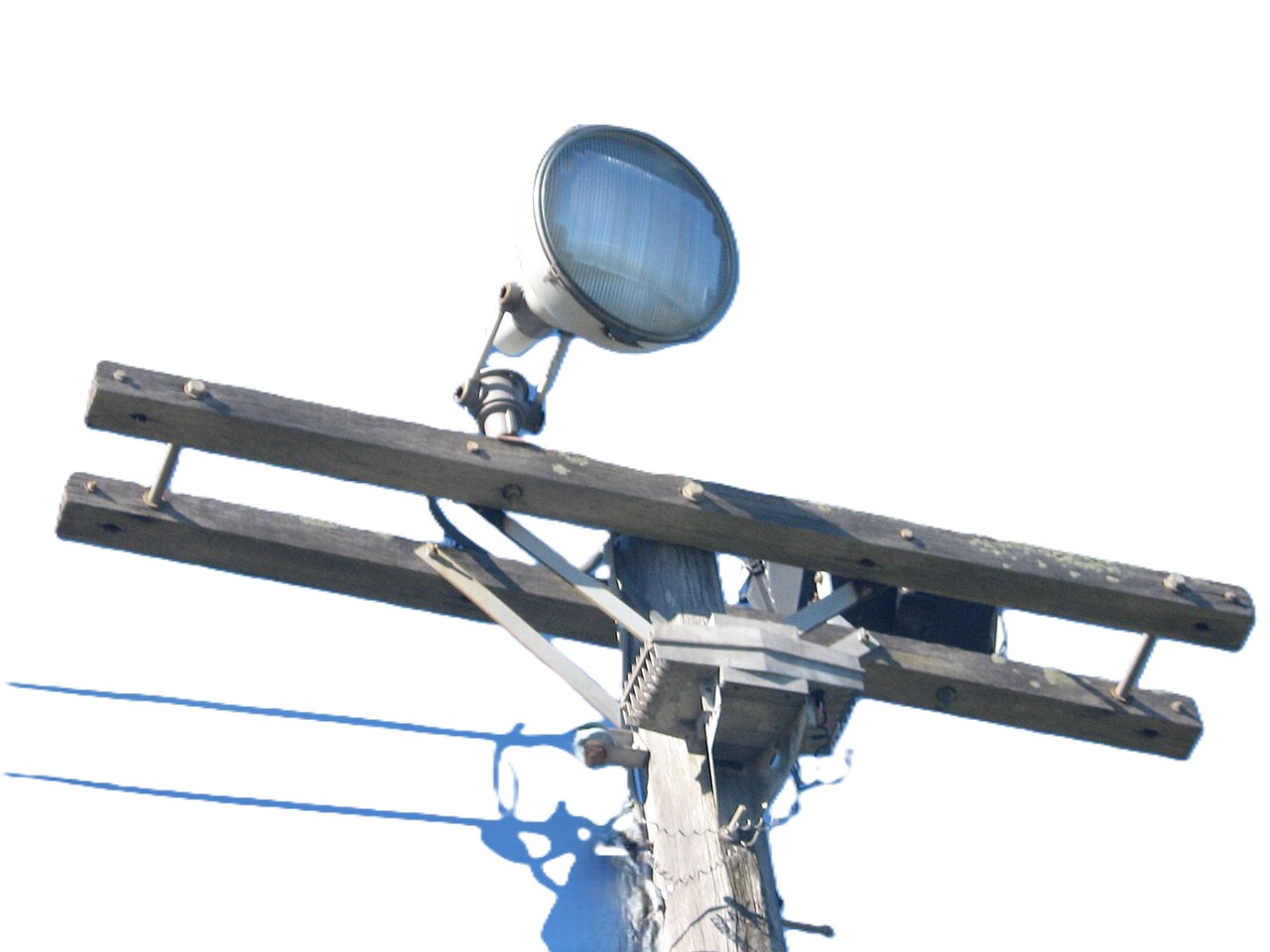

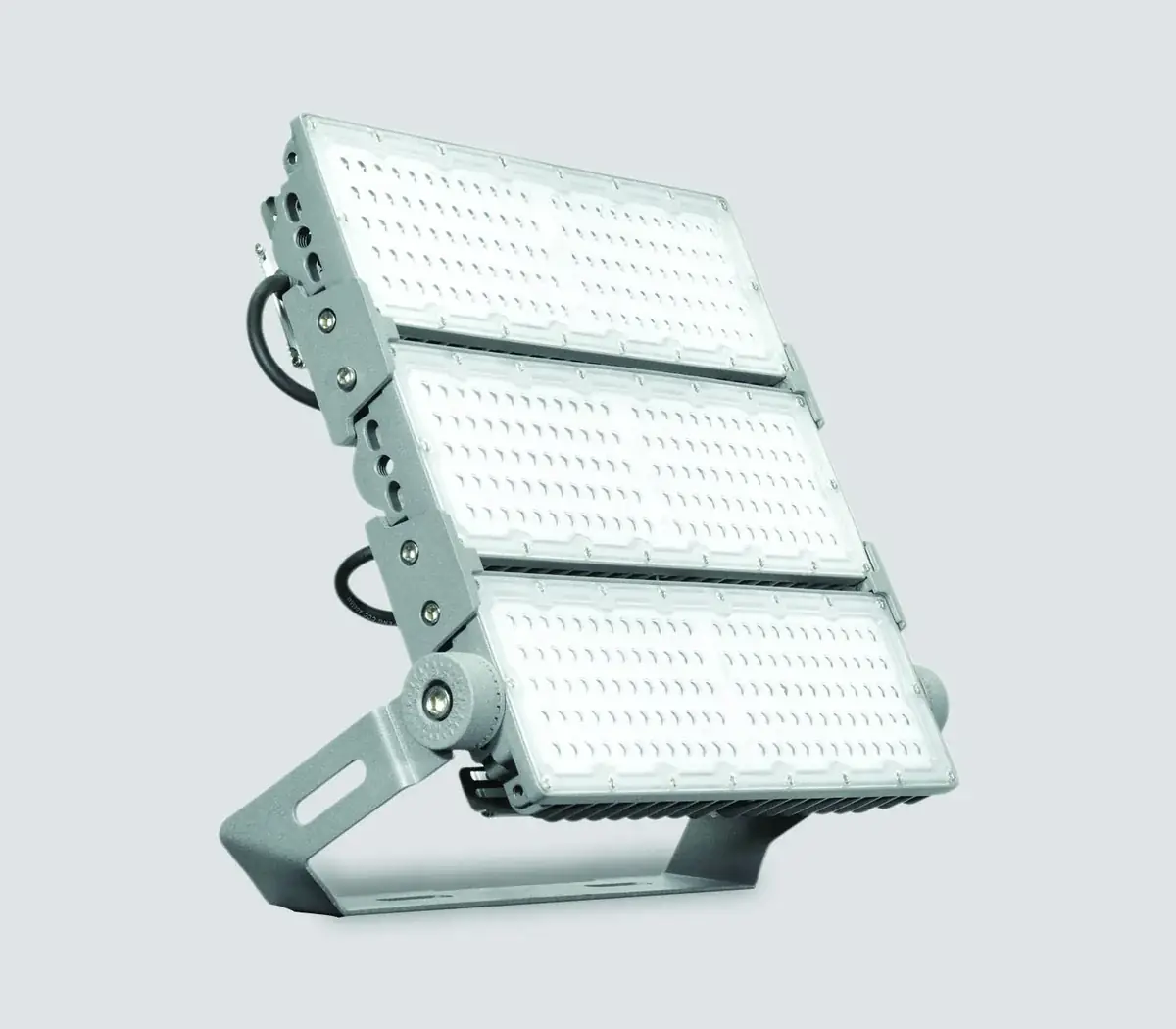

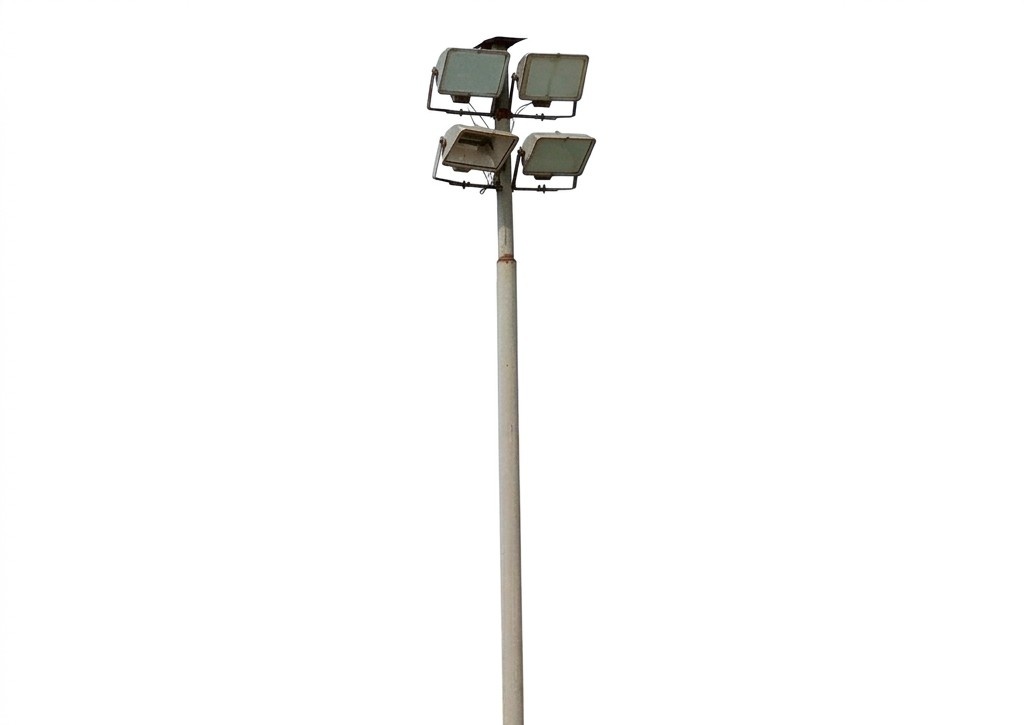

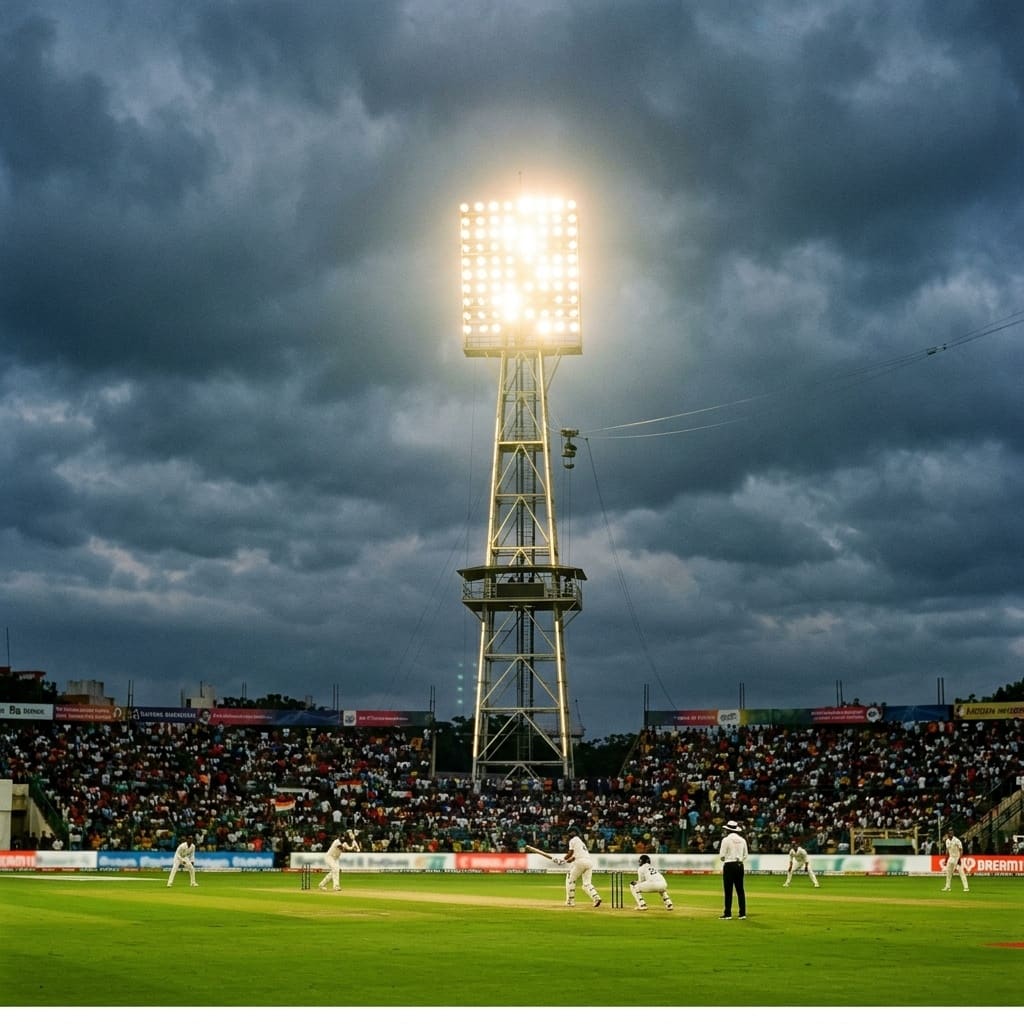

Stadium lighting starts with the Pinnacle LX modular floodlight, scalable from 250 W to 1500 W with add-on power modules and 100,000-hour lumen maintenance, and the 2T twin-module unit covering 200 W to 2000 W for wide uniform coverage. Single-module Pinnacle T fixtures, 1000W stadium floods with long-throw optics, mast clusters, arena modular heads, corner mast lights and double-deck floodlight towers cover grandstands and training fields.

High-Power Floodlights

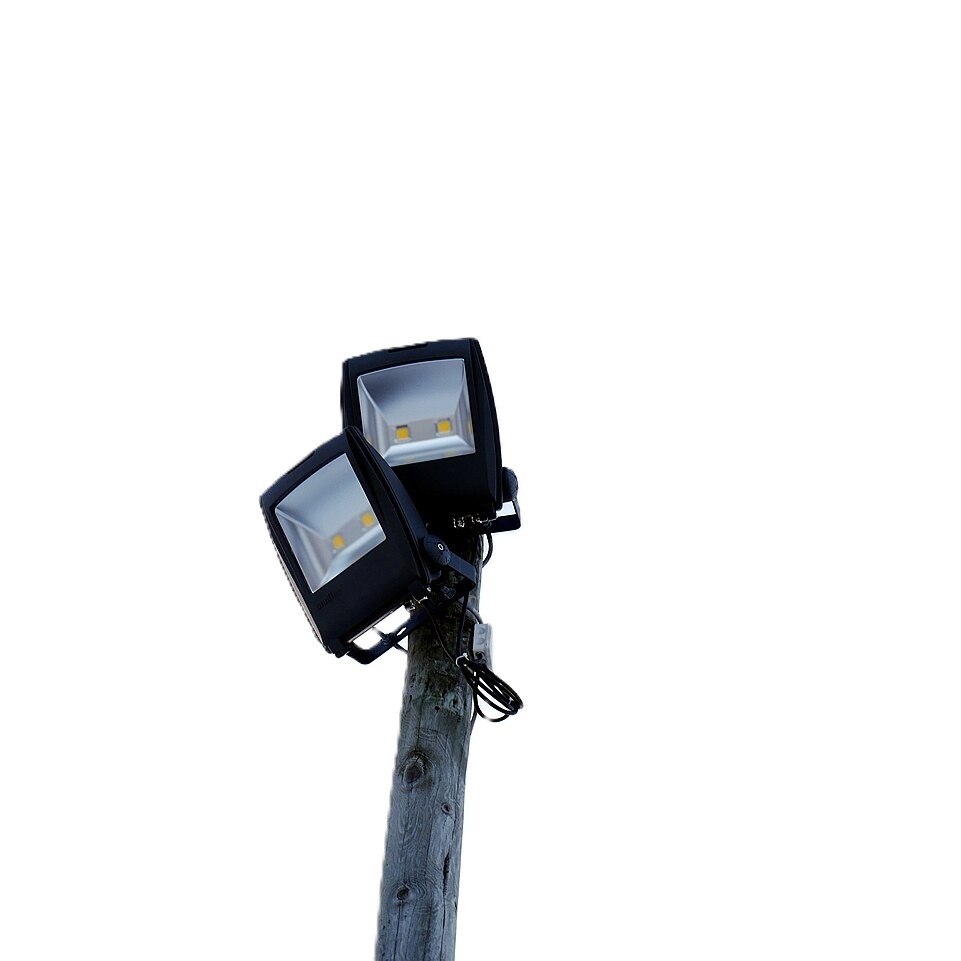

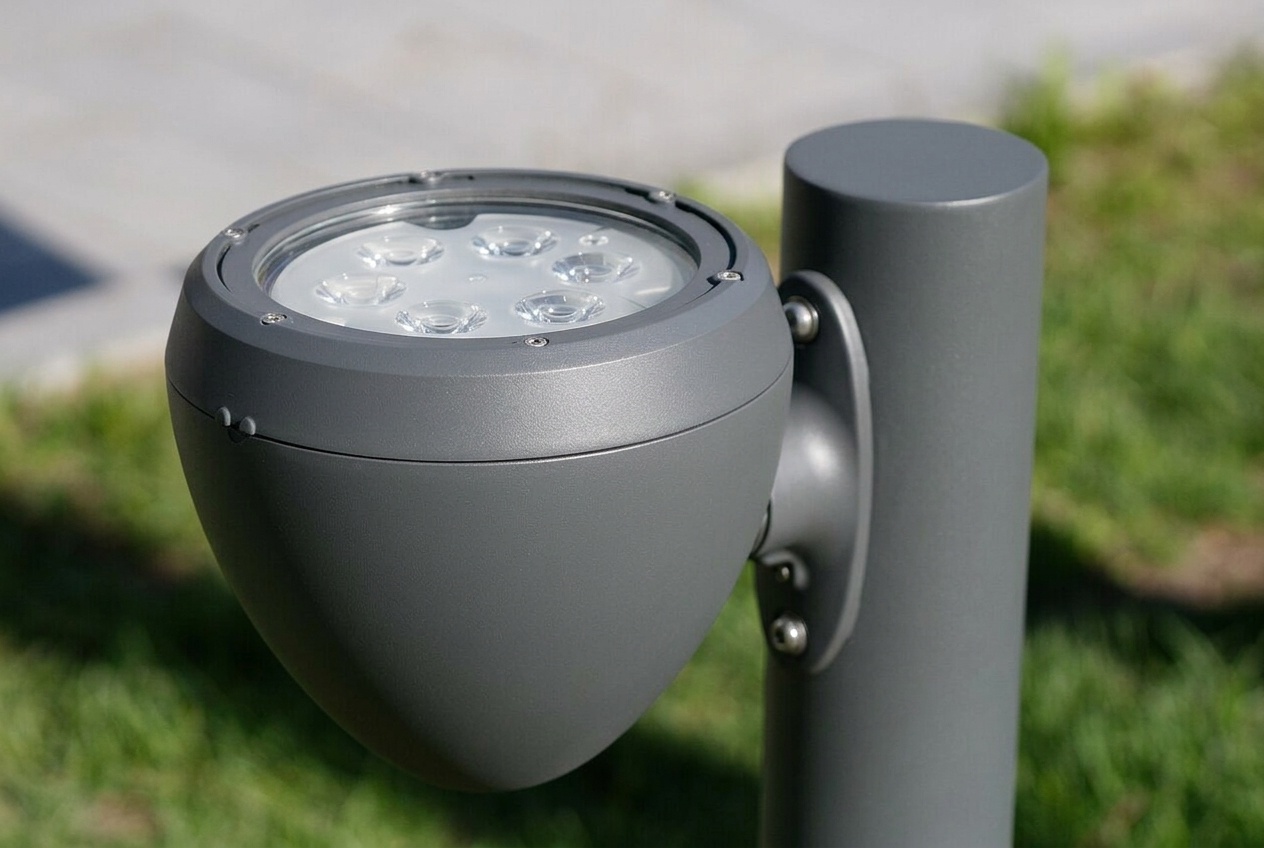

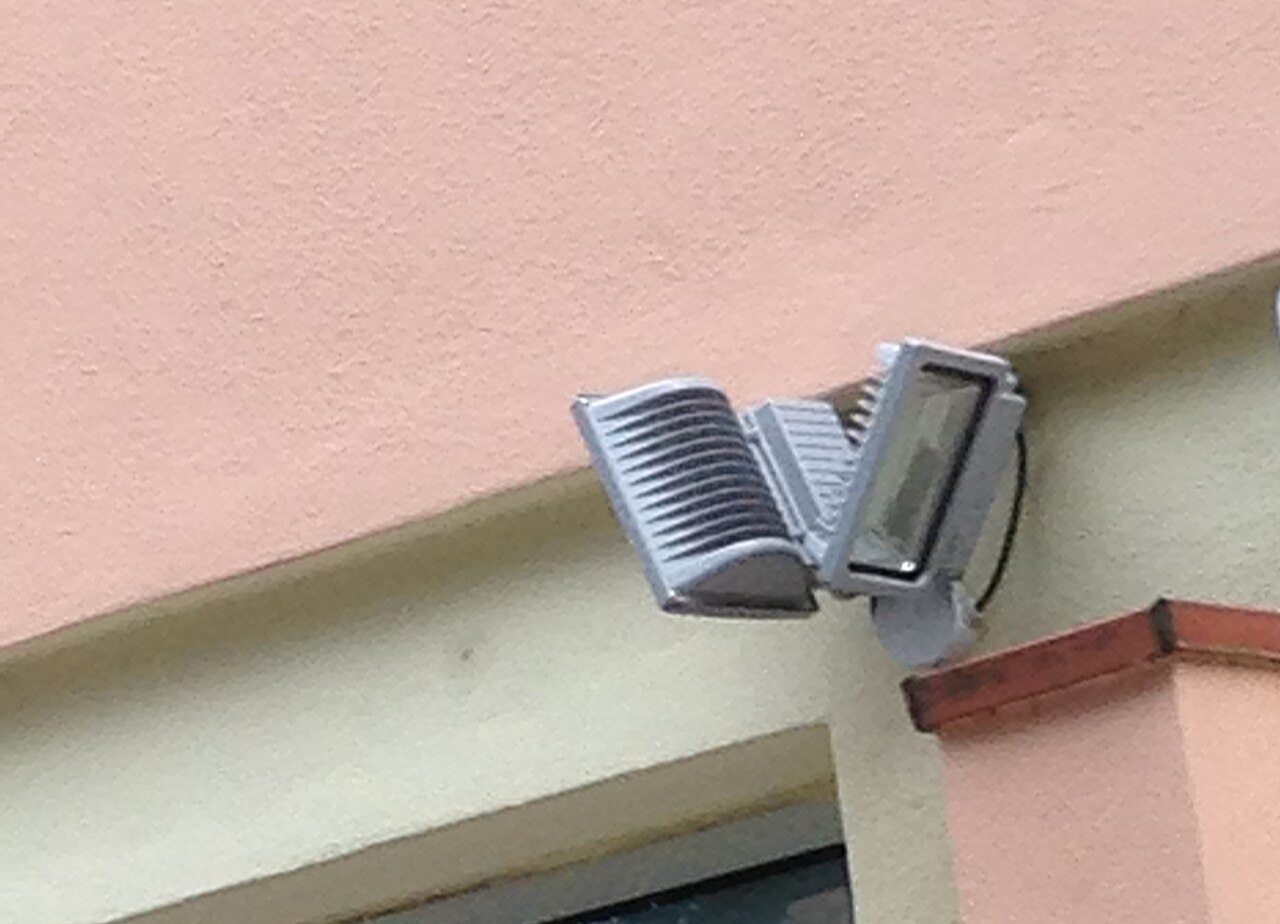

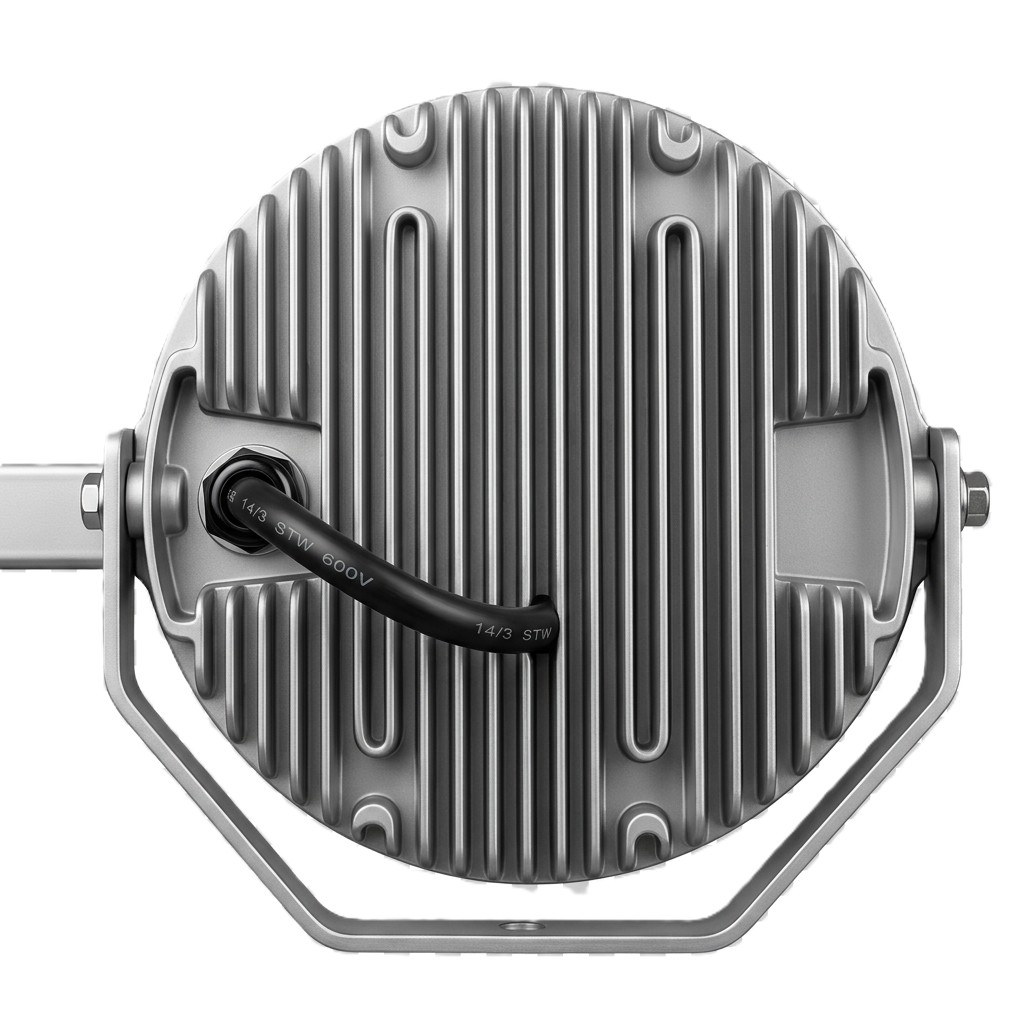

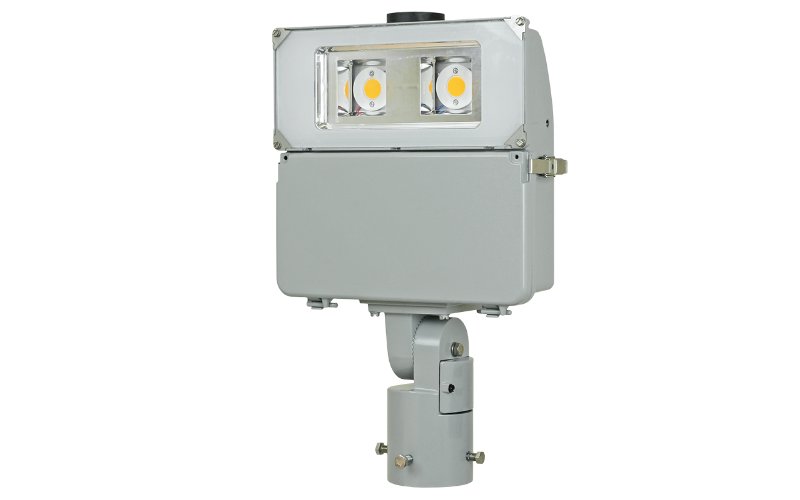

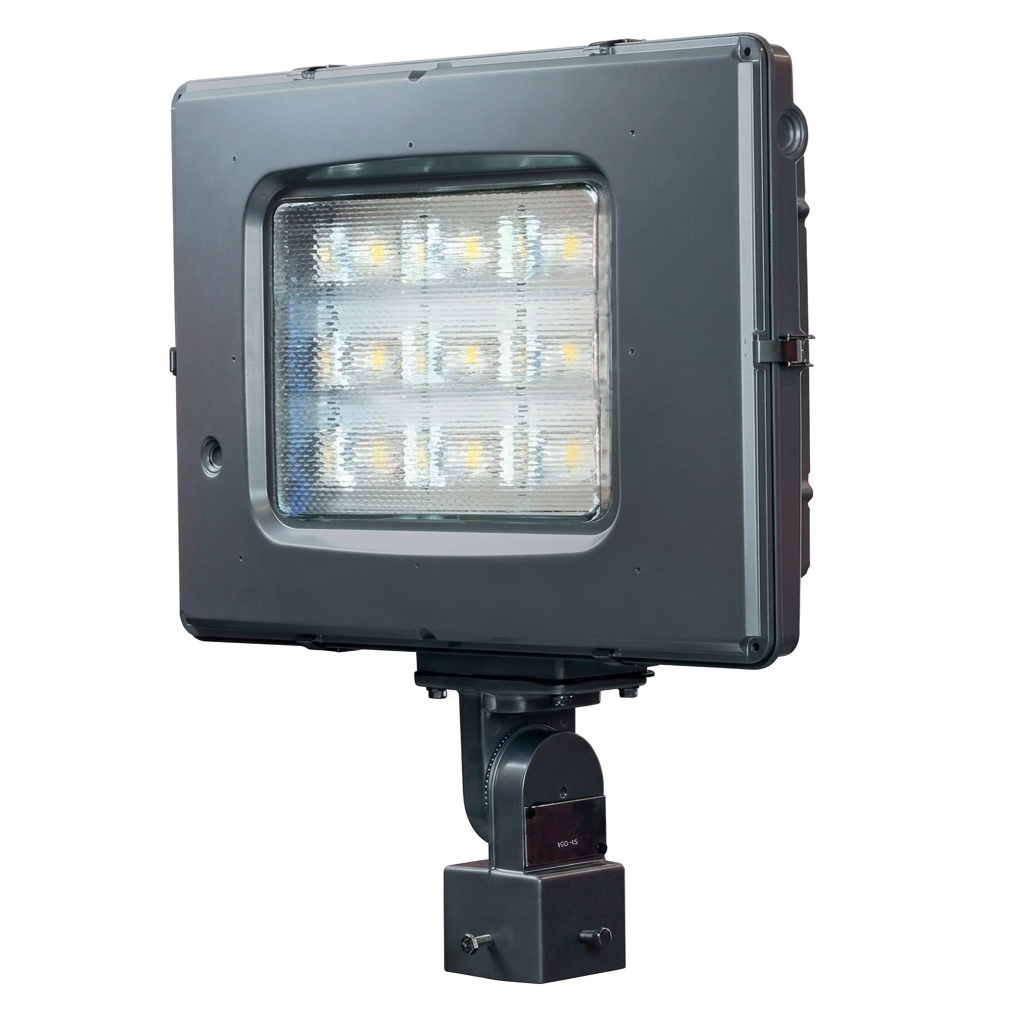

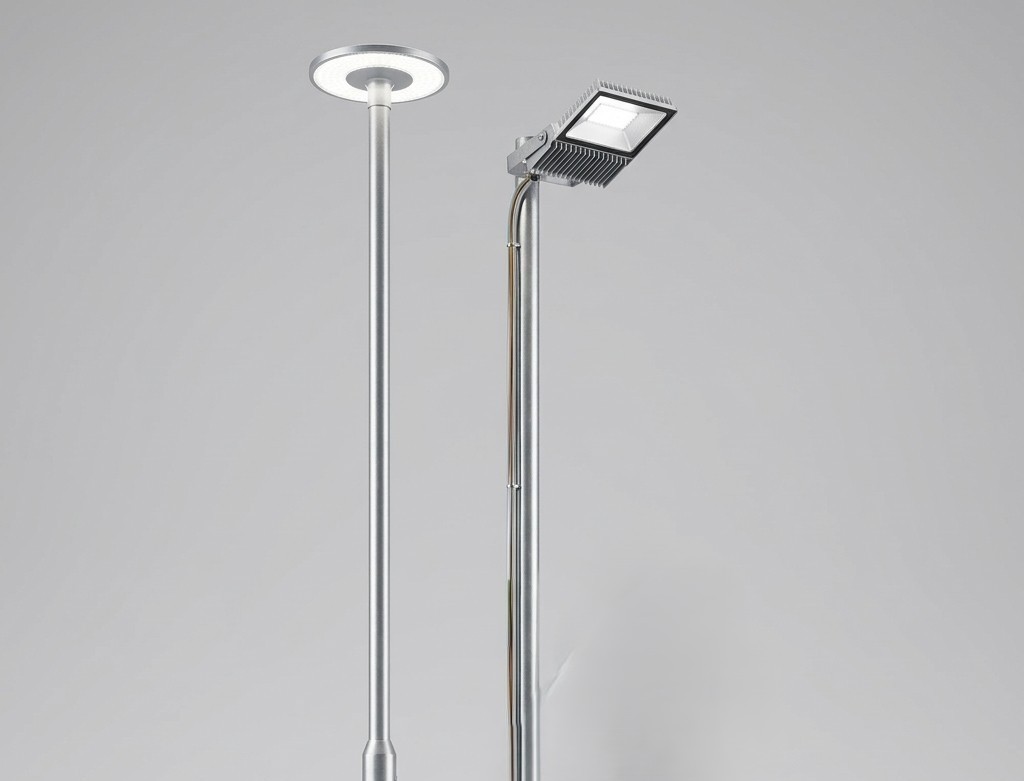

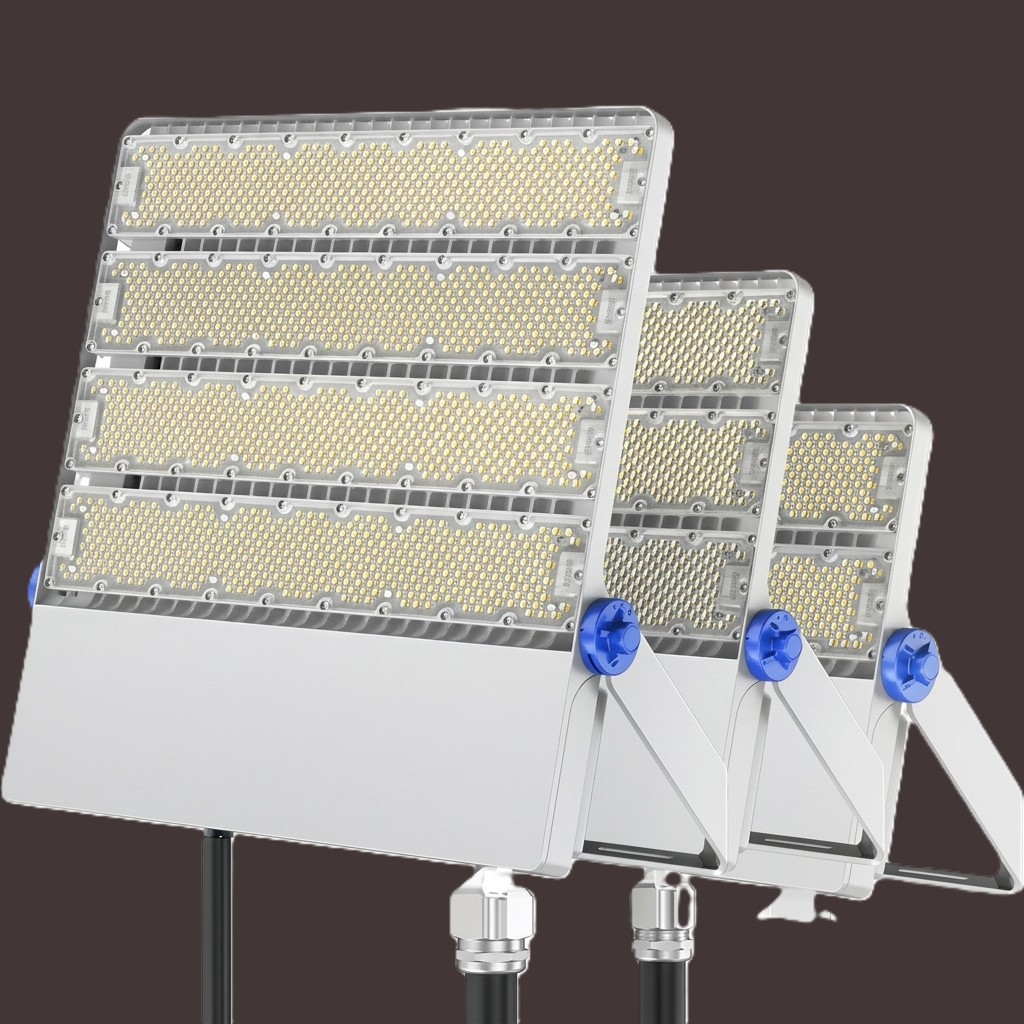

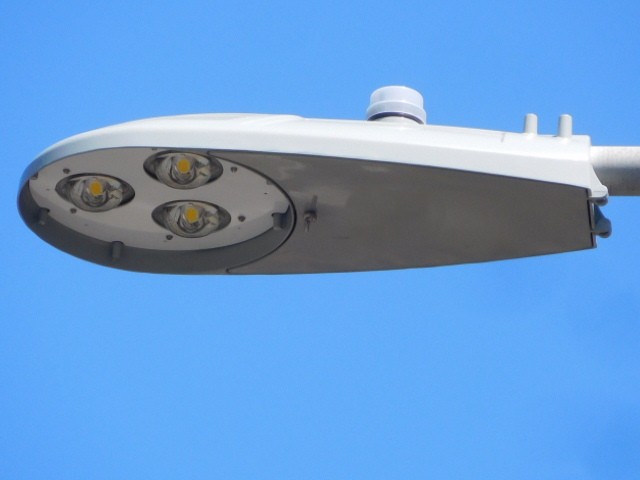

The Pinnacle floodlight family runs from 50 W to 1000 W: utility models replace 100 to 400W HID at up to 170 lm/W, industrial units cover yards, 200W and 300/500W die-cast fixtures serve ports and rail yards, circular floods suit petrol stations, slim facade floods wall-wash with optional DMX control, upward floods light monuments, and highway mast floods use cut-off optics against glare.

Heavy-Duty Industrial Fixtures

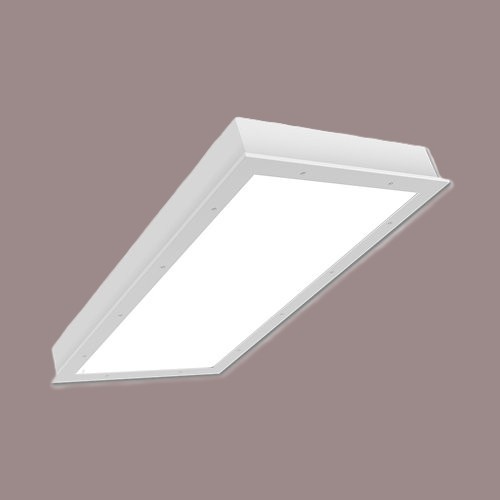

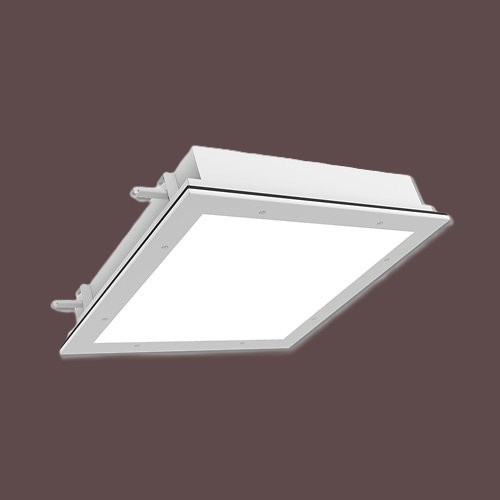

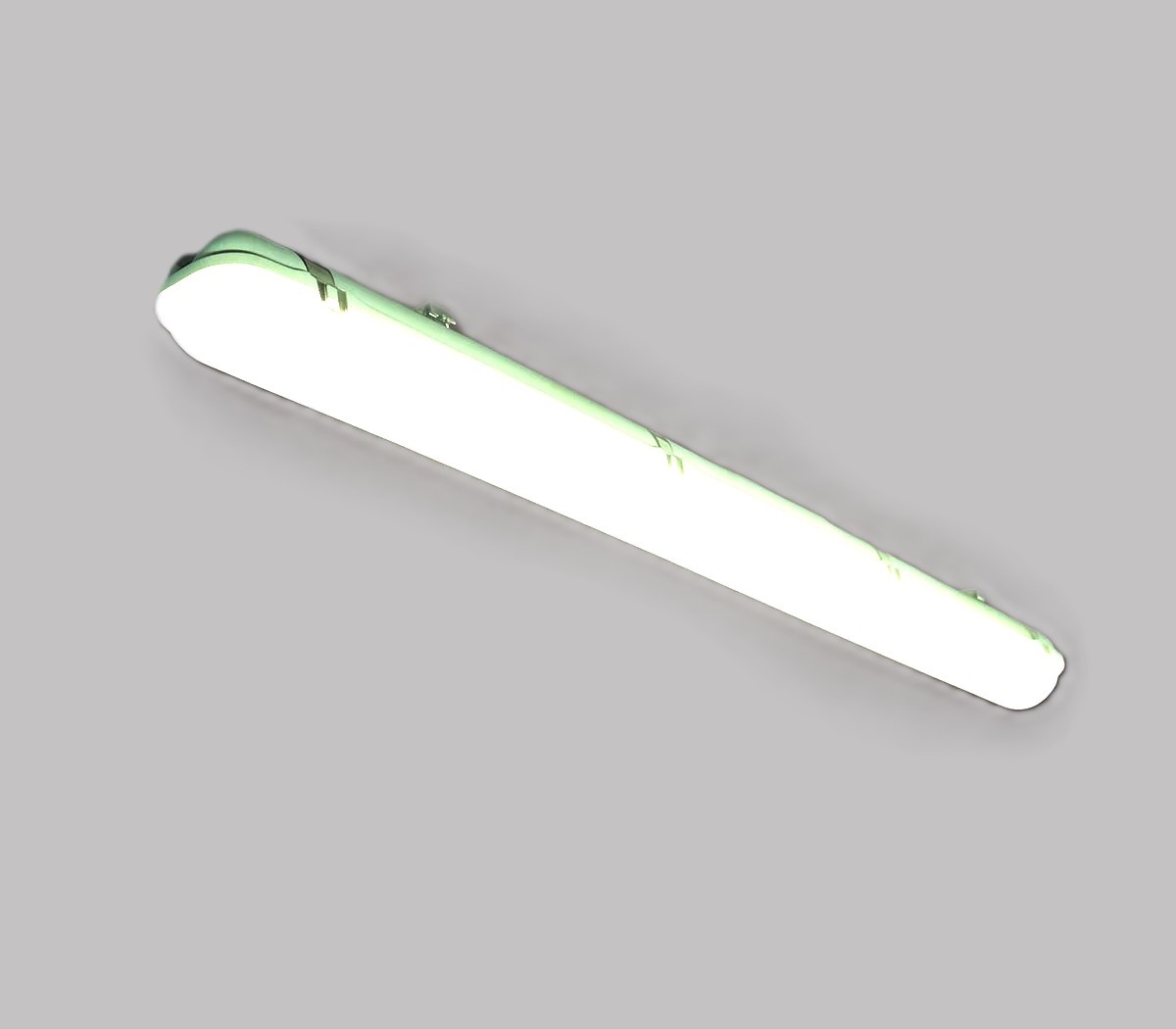

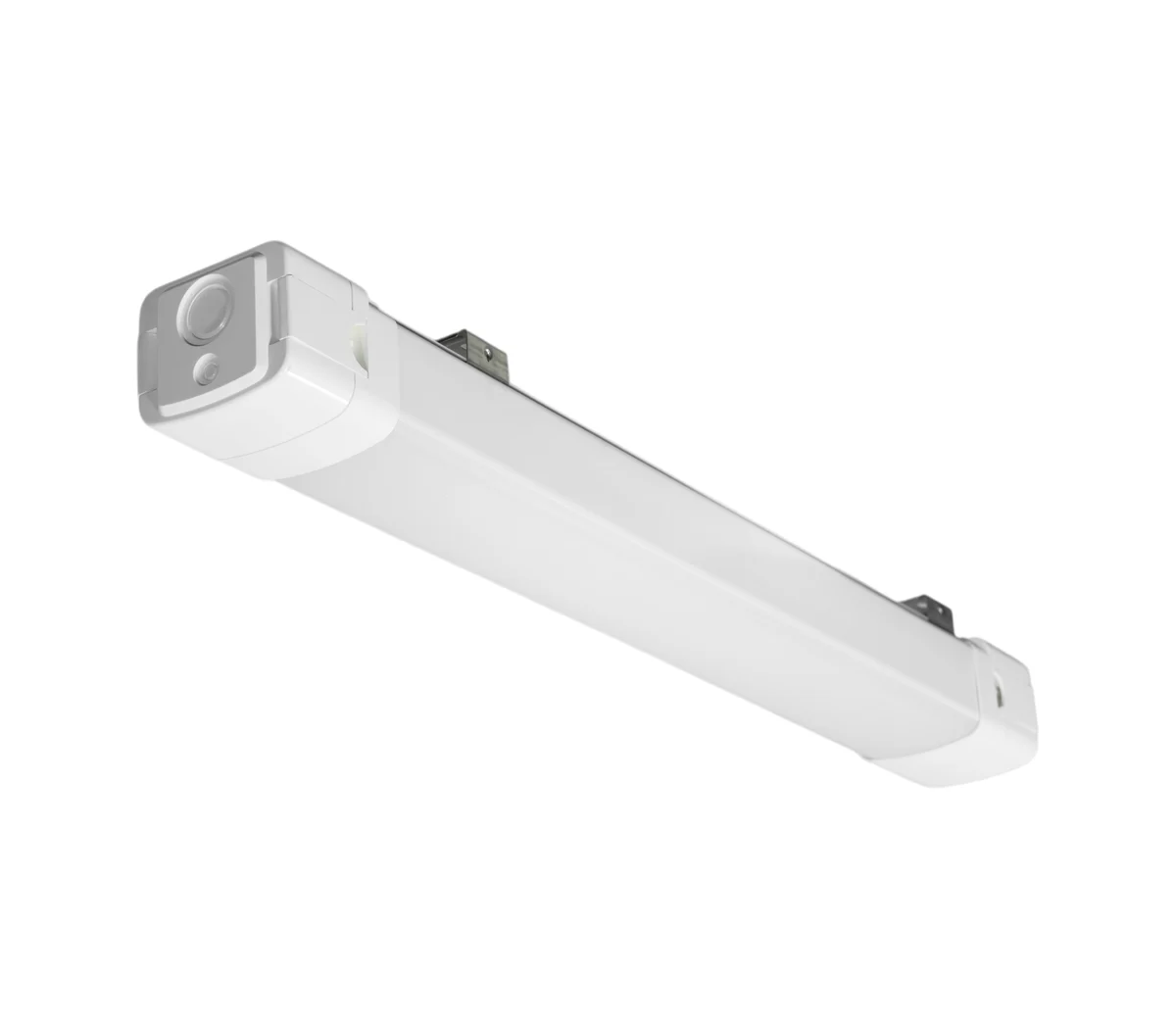

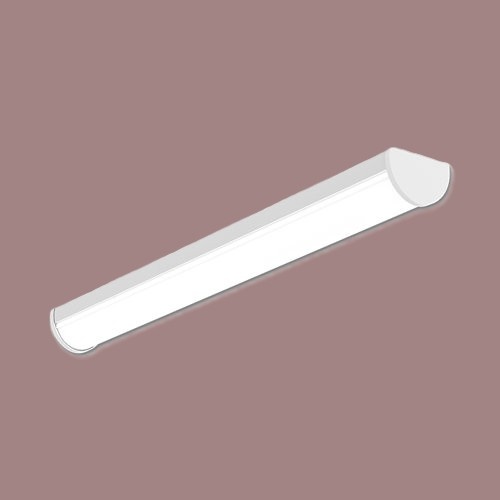

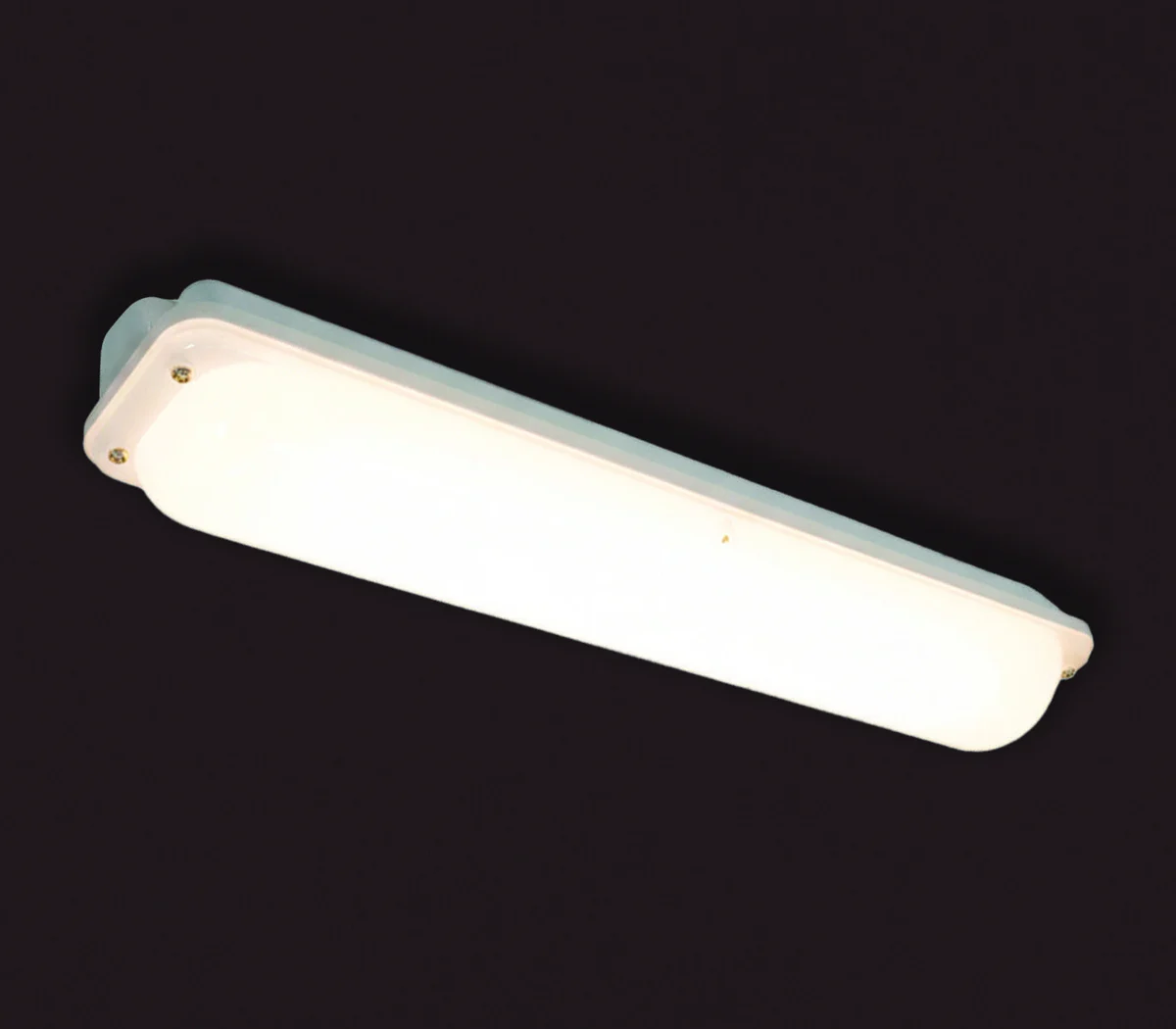

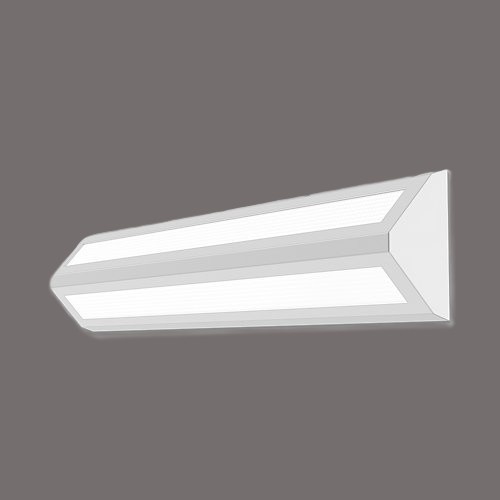

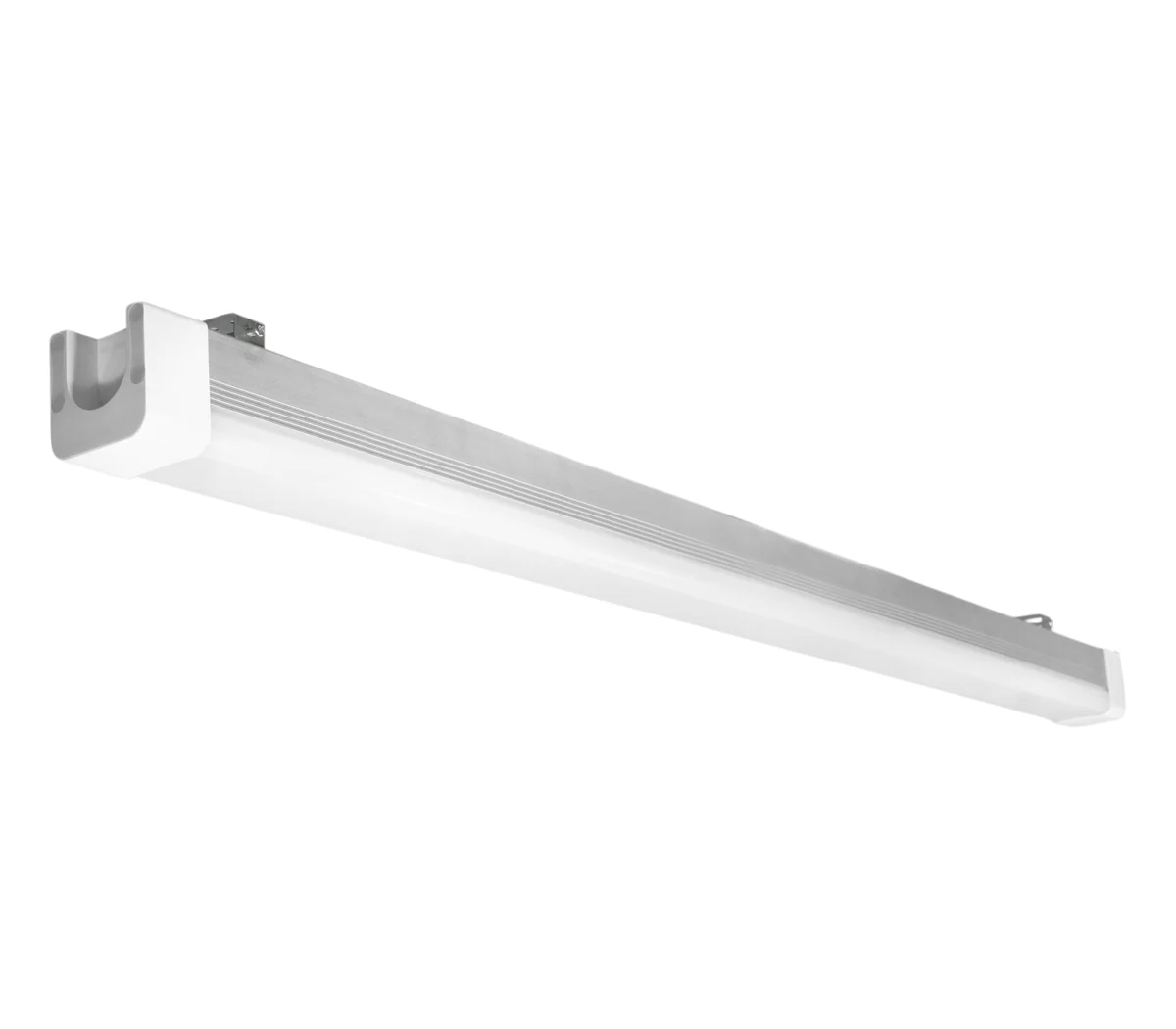

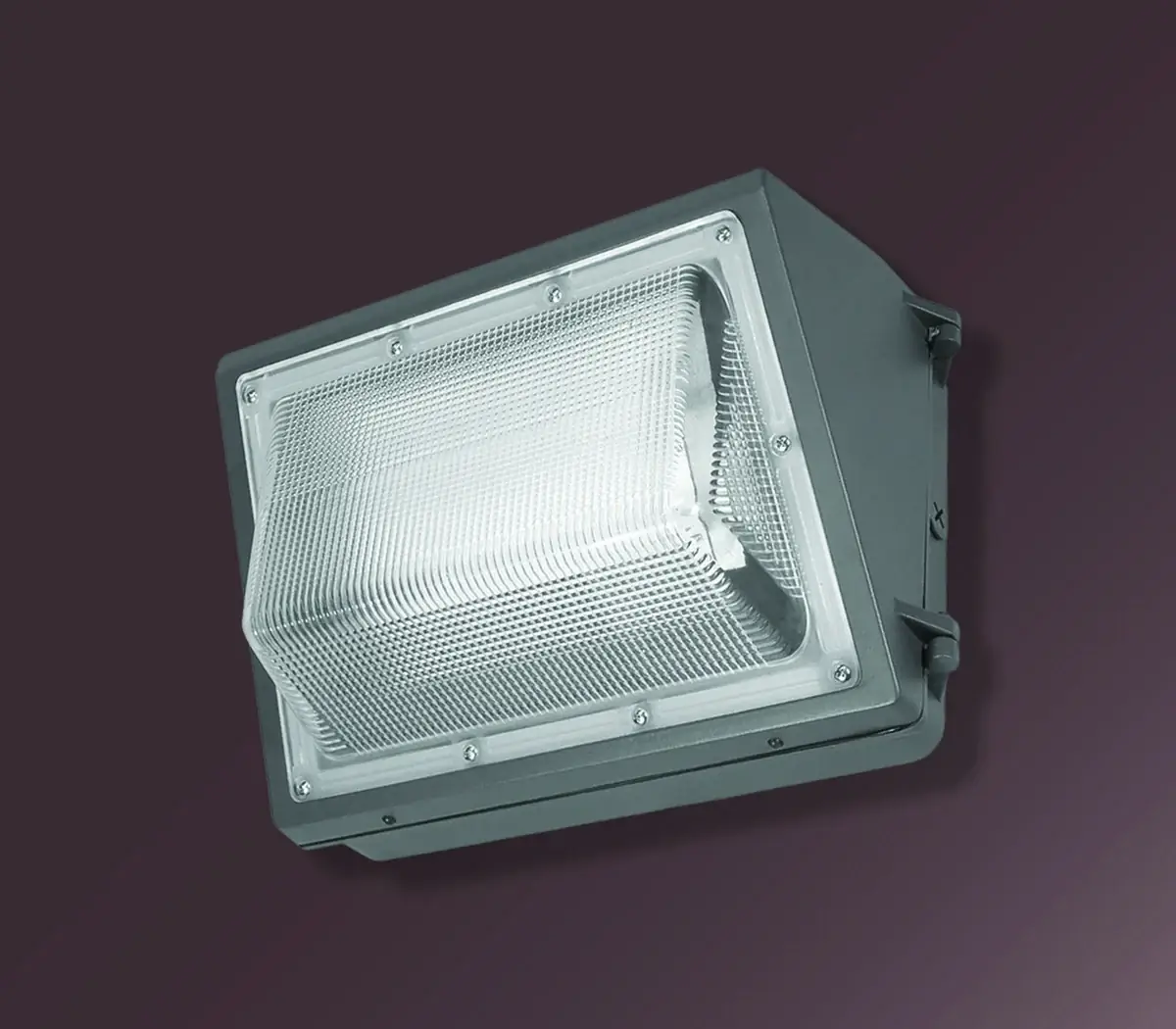

Where fixtures take abuse, the Fortress vandal-proof luminaire is rated IK12 and IP66 for transport hubs and public institutions, and the Fortress refractor wall pack delivers 4,000 lm at 110 degrees for facades. The Shield family adds high-abuse recessed and vandal-proof linear luminaires, while Fortress Slim, TP and CON weatherproof battens run 10 to 60 W in 2, 4, 5 and 6 ft lengths, with CON units linking end to end in car parks.

Road, Street and Tunnel Lighting

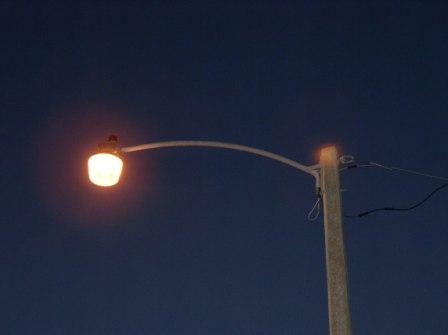

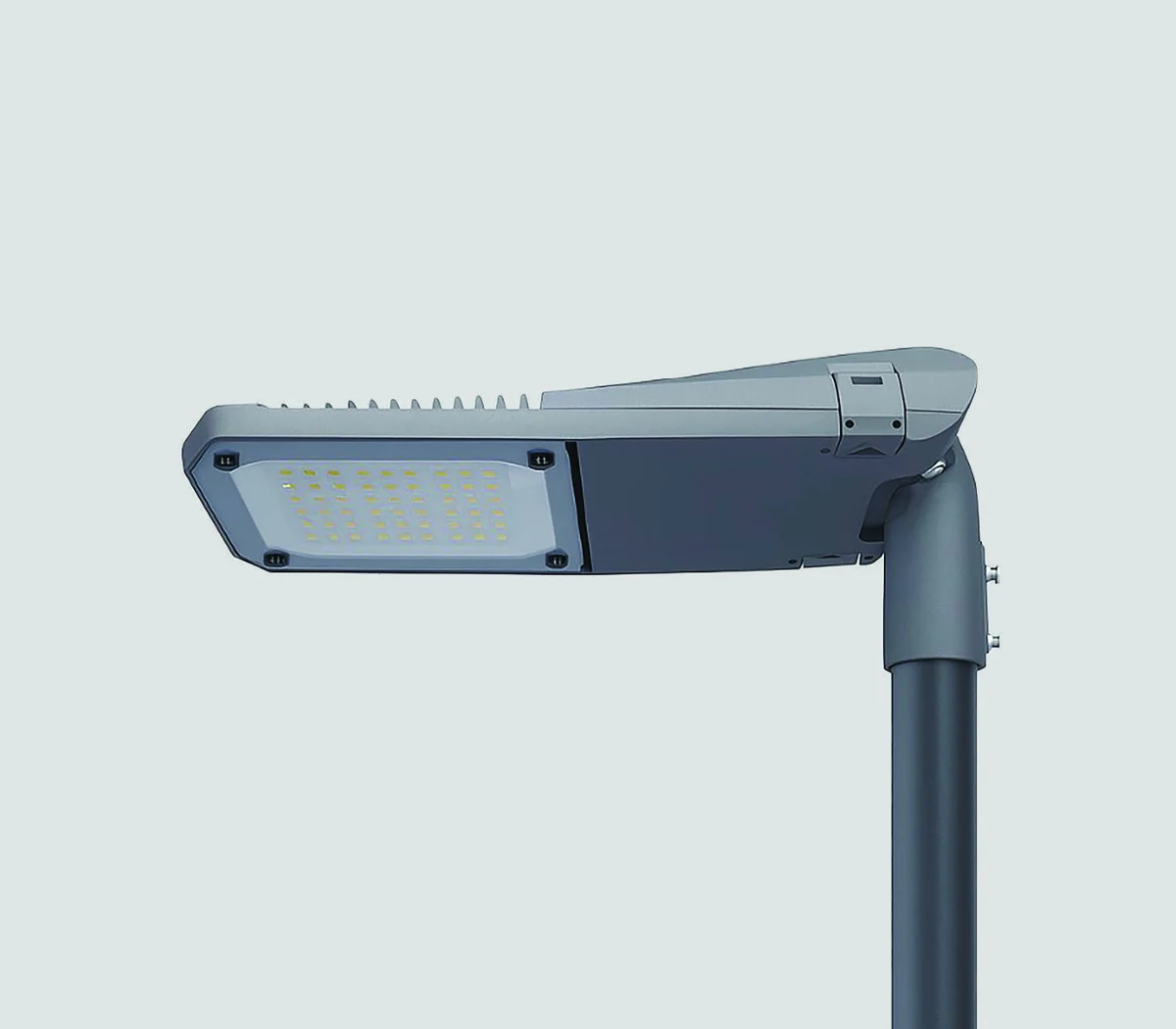

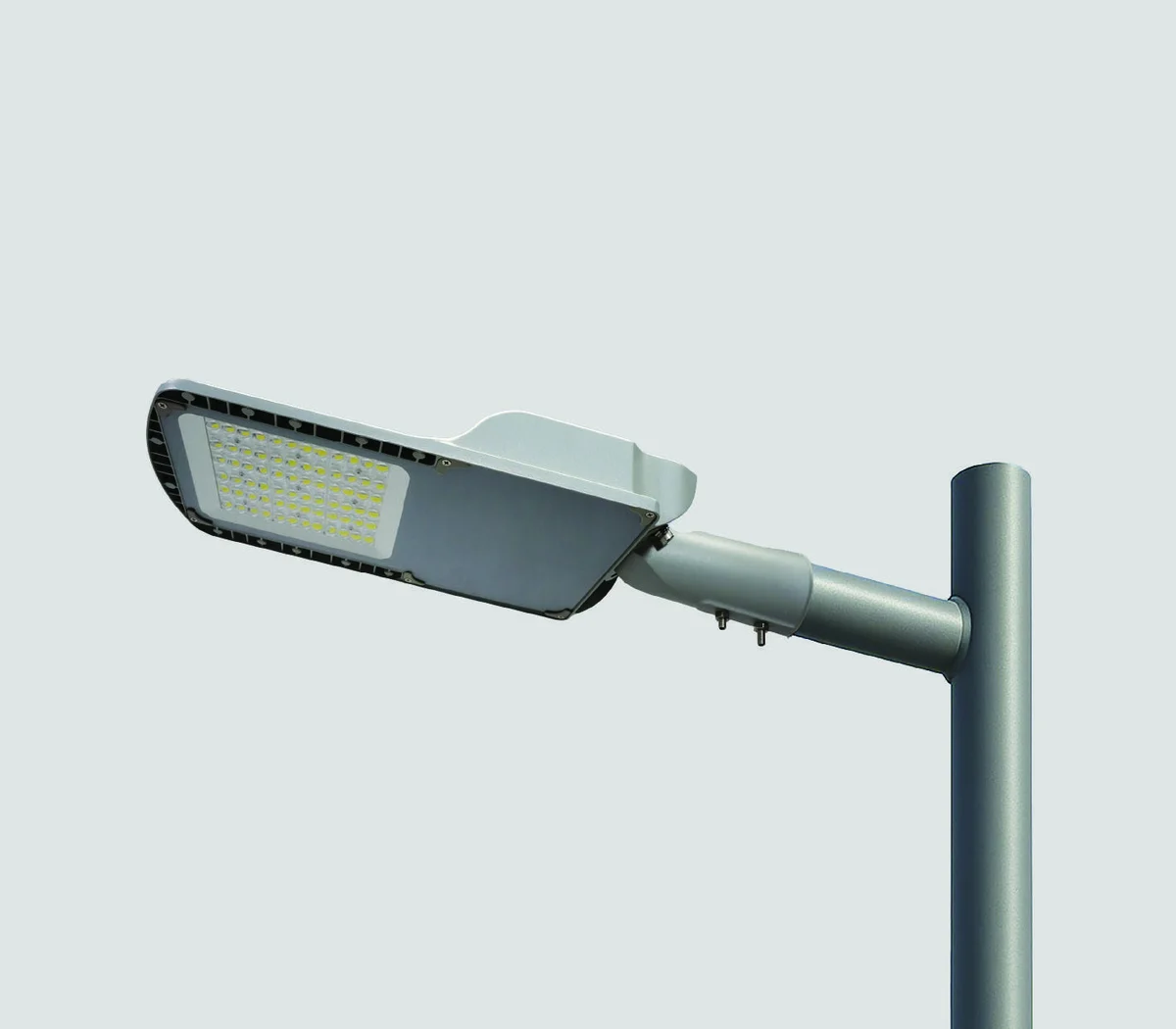

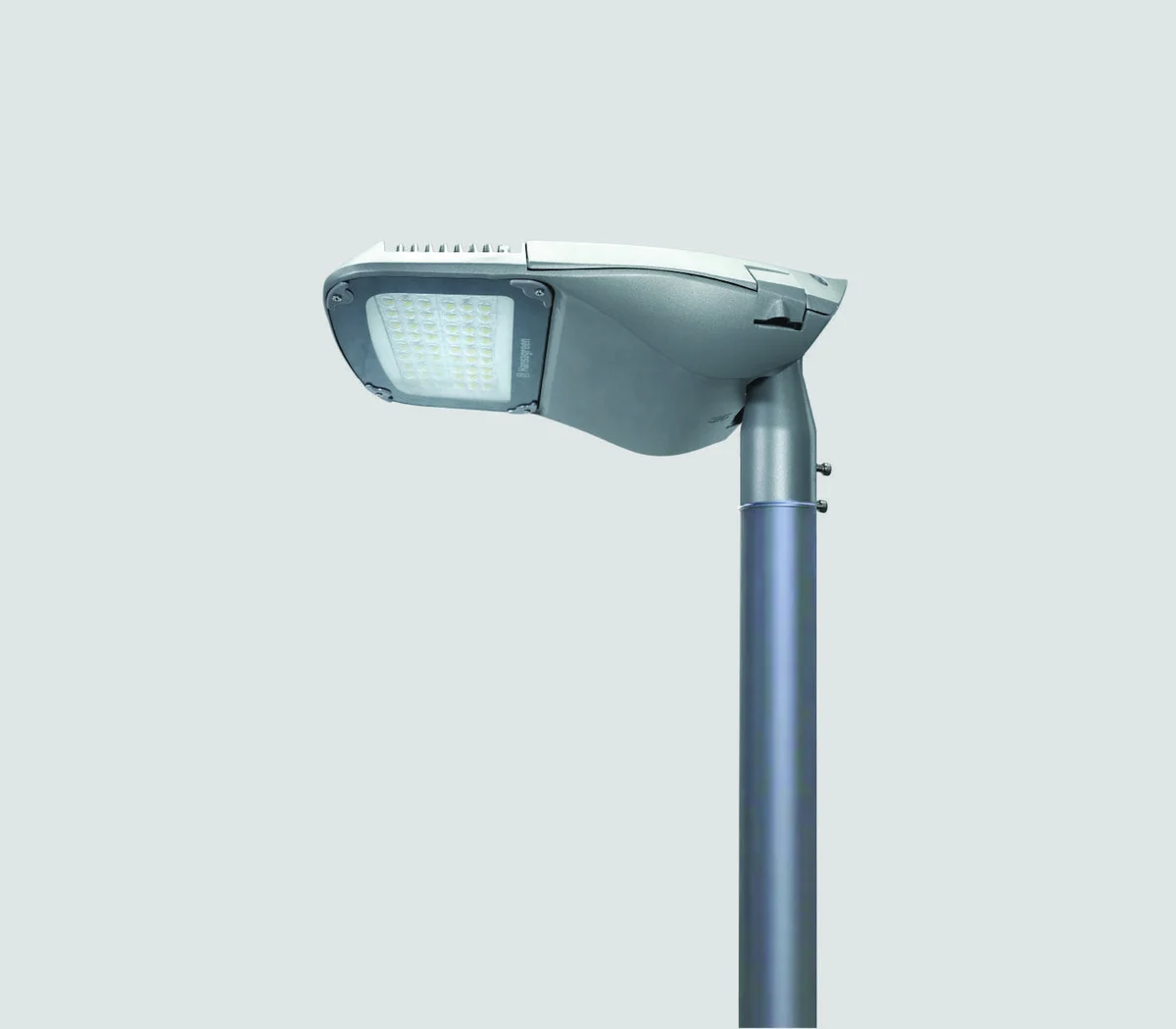

Road lighting is built on the Meridian platform: the D road luminaire offers Type I to V distributions at 145 lm/W, the G reaches 160 lm/W and up to 38,400 lm for main corridors, and the compact S shares the same optics with IP66 sealing. Tunnel Pro 200W and 300W luminaires deliver 28,574 lm and 45,600 lm with IK10 impact resistance and ON/OFF, 1-10V or DALI dimming, and an HPS street light with LED E39 equivalents supports staged retrofit programmes.

Downlights and Spotlights

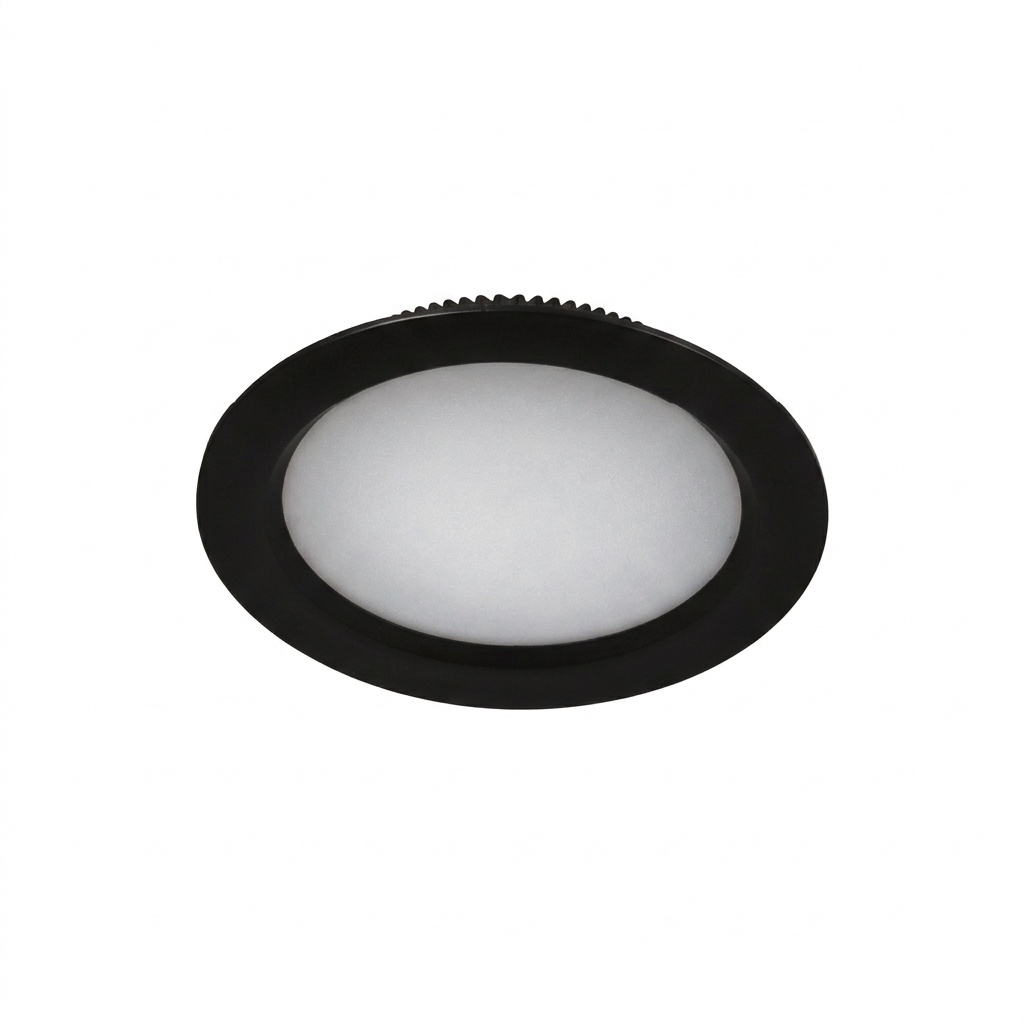

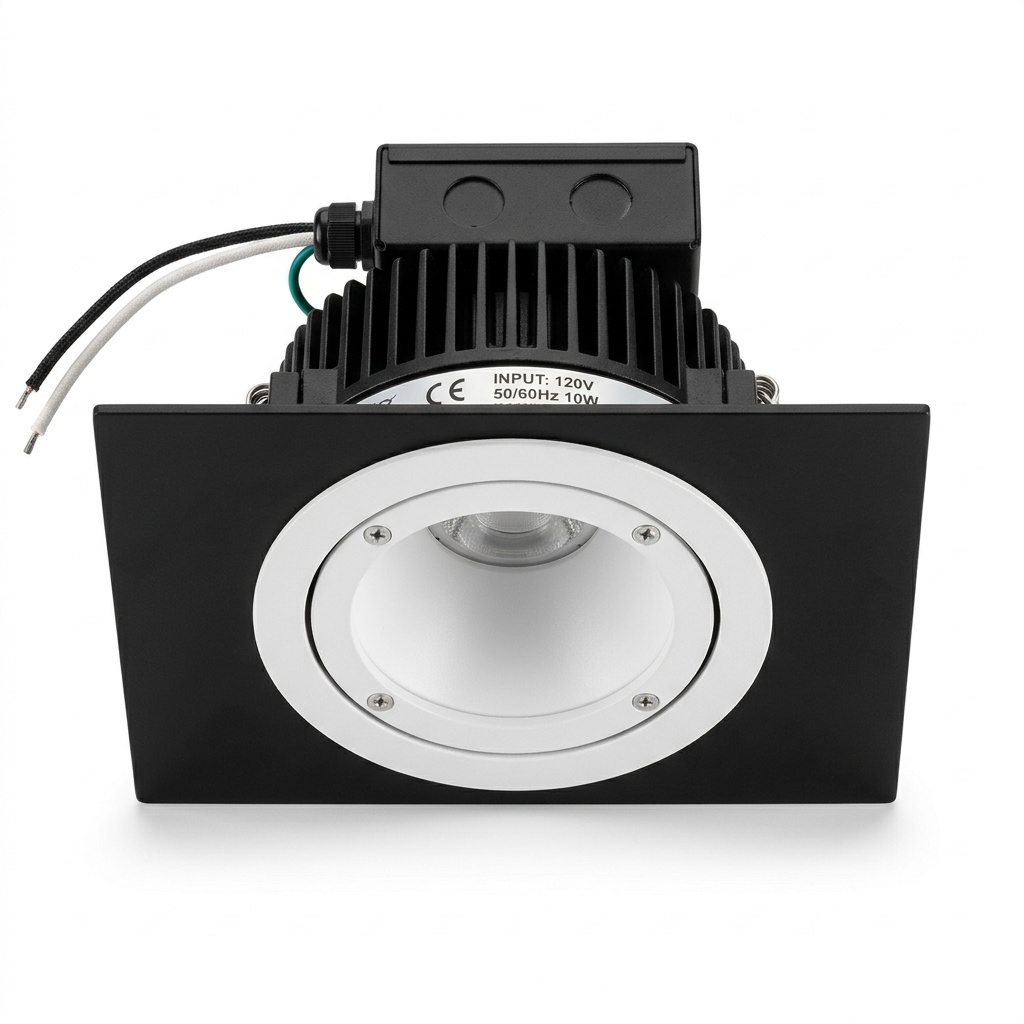

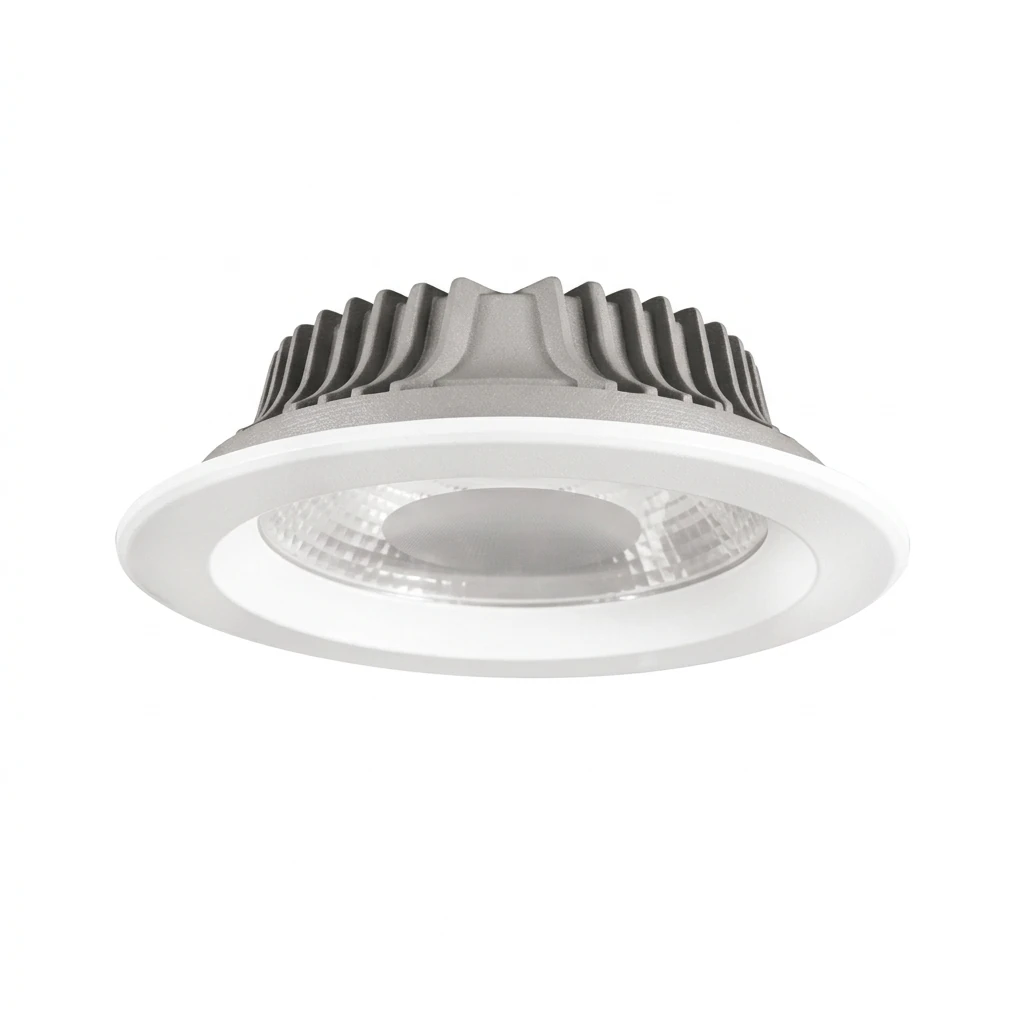

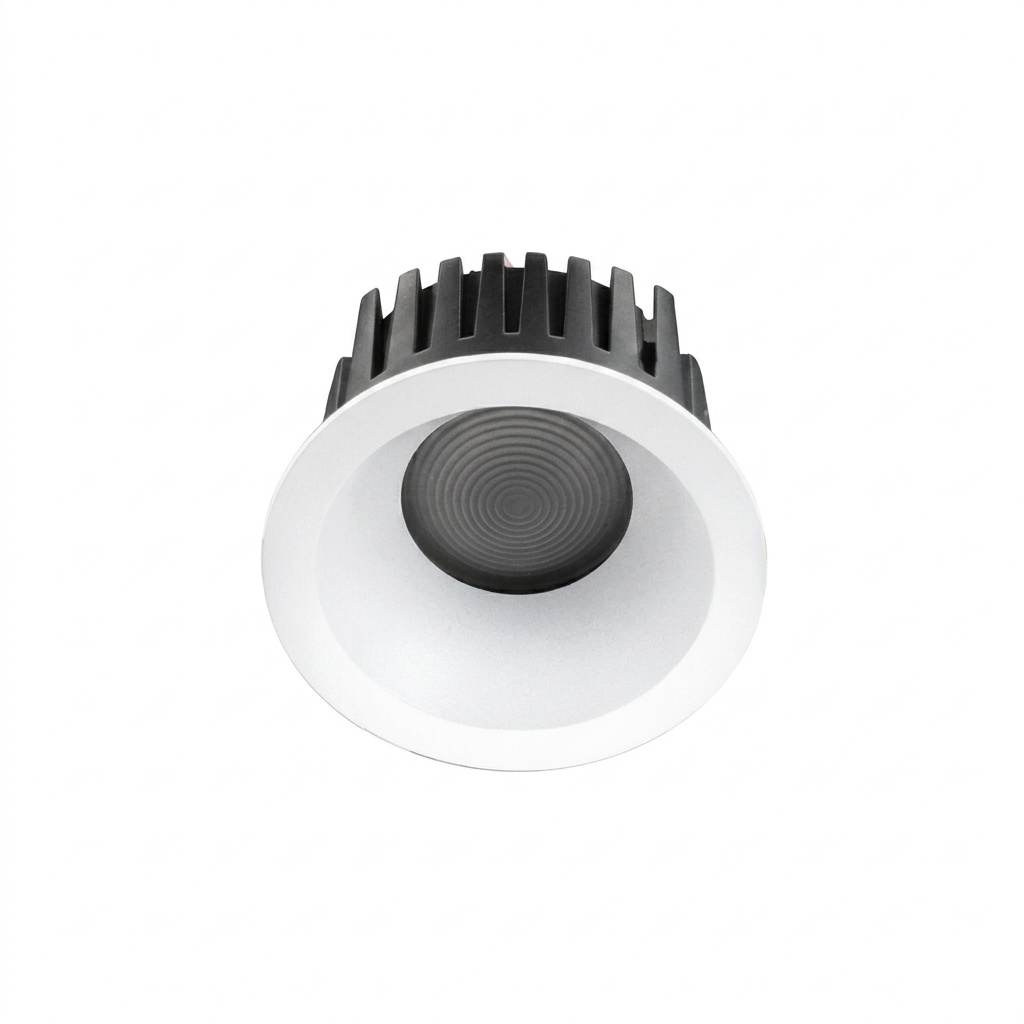

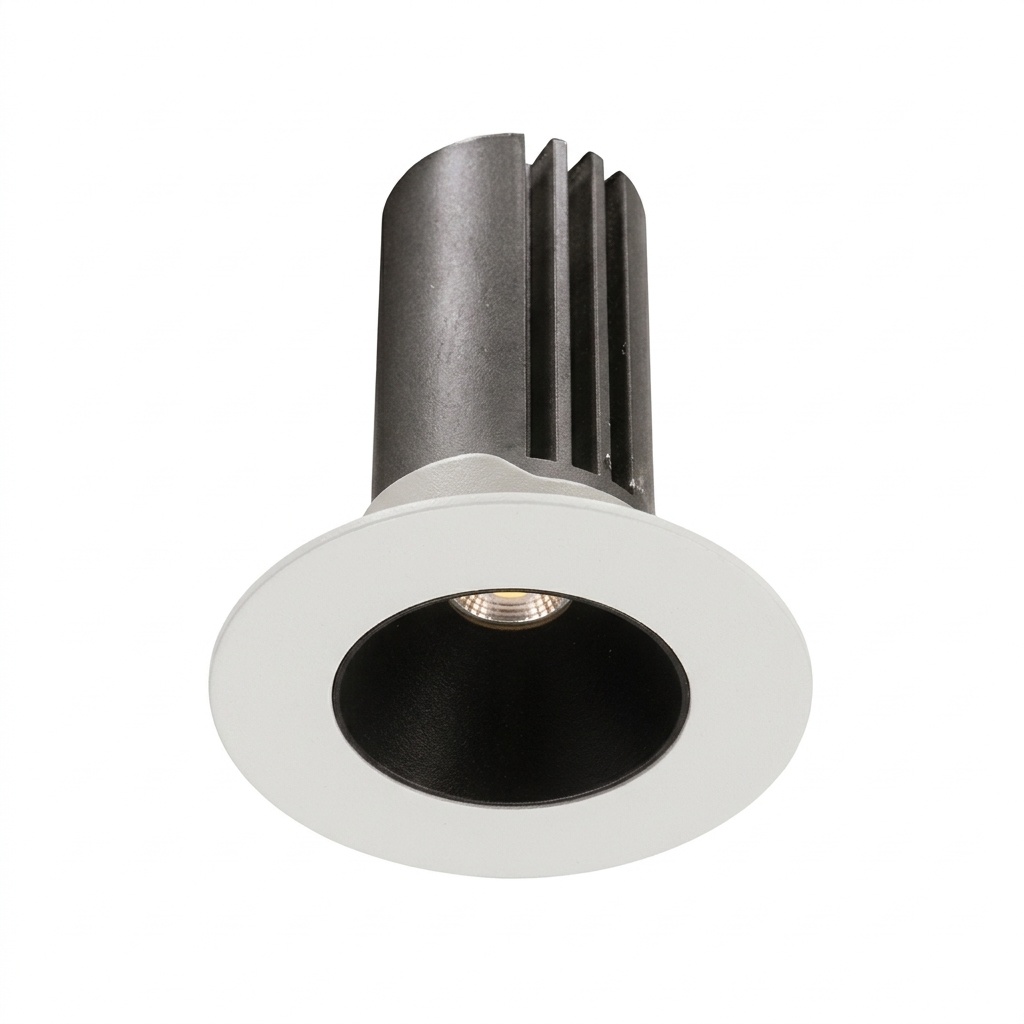

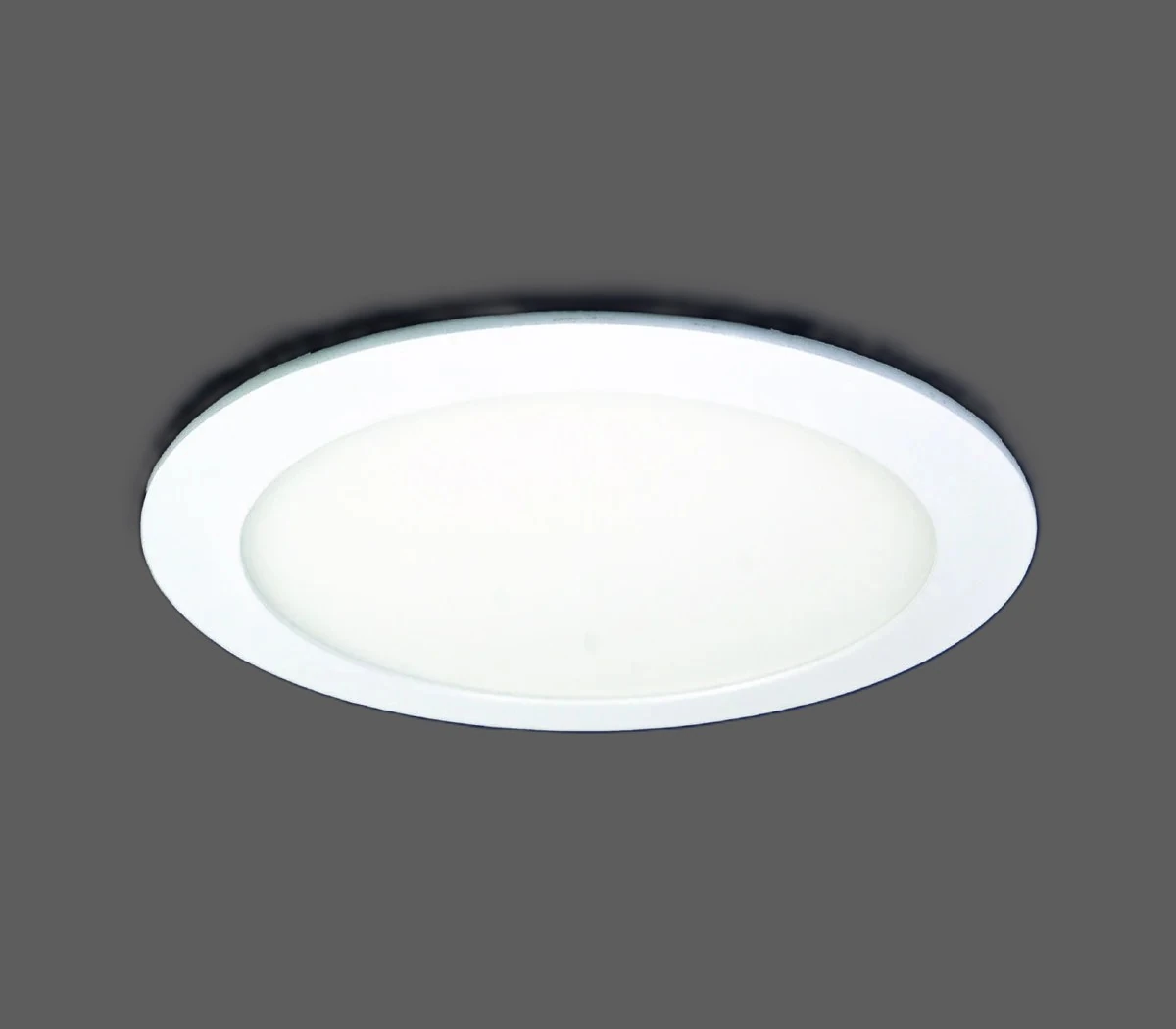

The Halo range handles interiors: the CB recessed downlight gives 700 to 1,200 lm behind a frosted glass diffuser, the RD slim and Grandeur RD models cover 300 to 1,800 lm in edge-lit forms, and the Petra DC1 brings IP65 protection at 1,000 to 1,500 lm. Spotlights include the Merit COB spot with a TIR lens at 120 lm/W, the Silver Line, the dual-source Tri-Optics, the curved-trim Quadrila RD and the Shield vandal-proof 4 in downlight.

Lighting, containment and connection are specified together, so Alzab coordinates fixture schedules with trays and enclosures on one project. Where a second brand is called for, HansaGreen supplies the matching industrial lights and road and street lights categories, and the Barqan junction boxes category covers the connection points behind the fixtures. Request a quote for your schedule.
