Junction Boxes

Barqan junction boxes are organised into five enclosure series plus a fire-rated FireBox line, and Alzab Algharbiyah supplies them across Saudi Arabia from our Dammam base. The A series covers standard indoor duty at IP55, the T series is the all-rounder at IP66, the X series is waterproof at IP67 for outdoor work, the MX series is aluminium for extreme duty, and the B series spans IP54 to IP67 for professional installations. All of it is indexed on the Barqan brand page inside our products directory.

A Series - Standard Indoor (IP55)

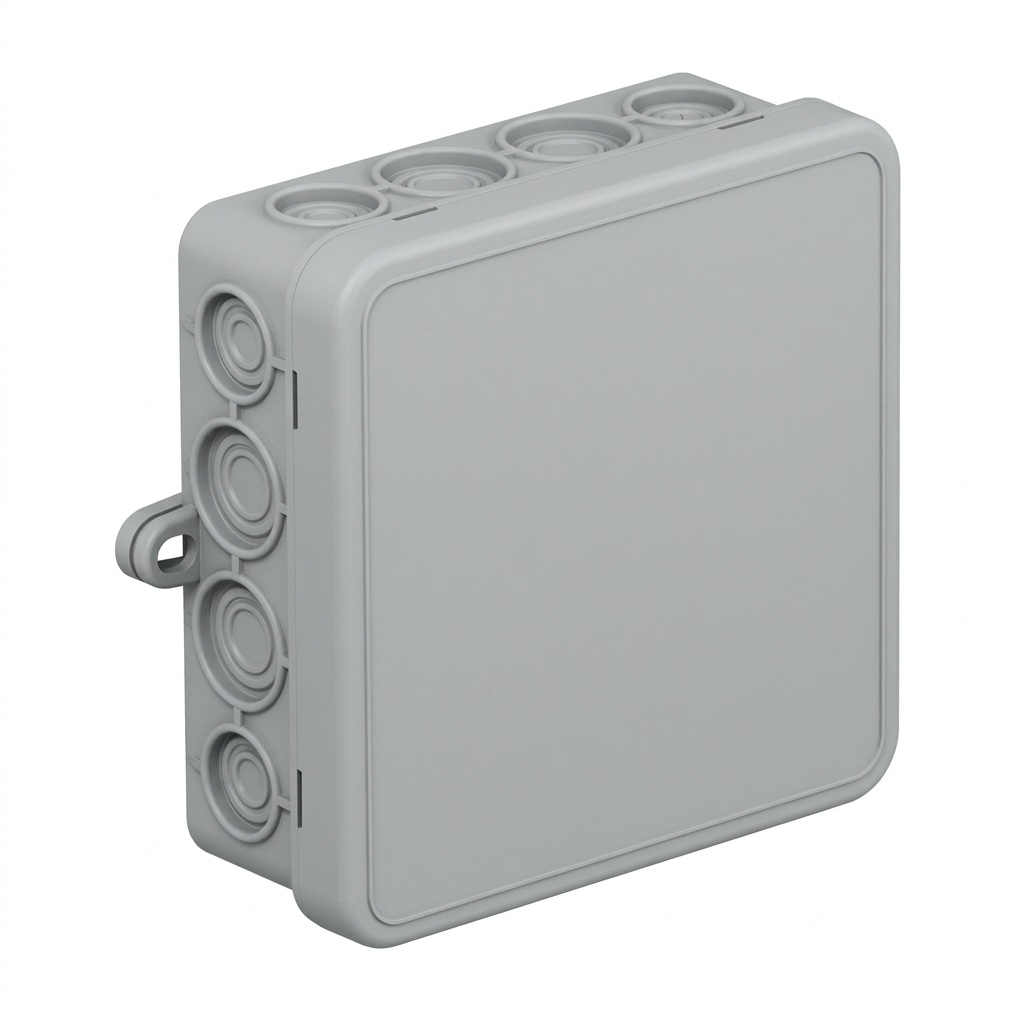

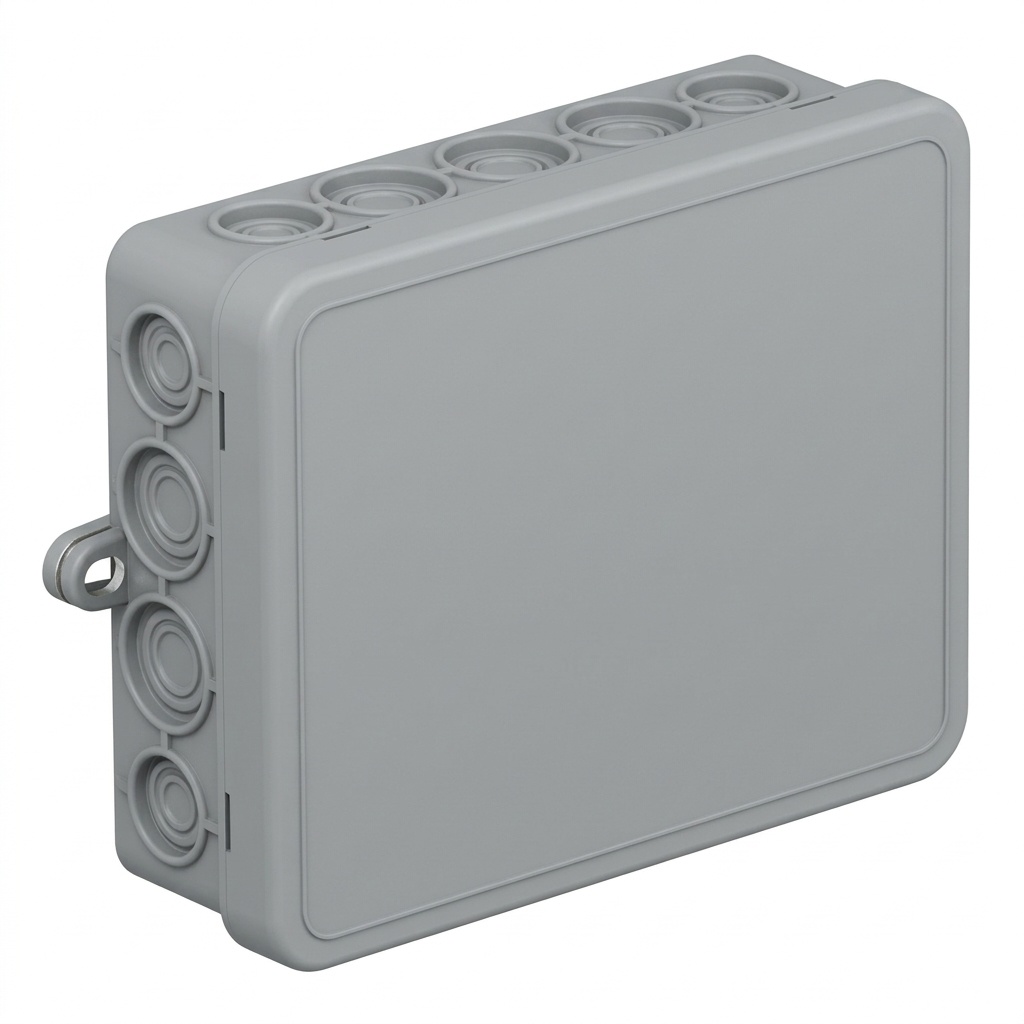

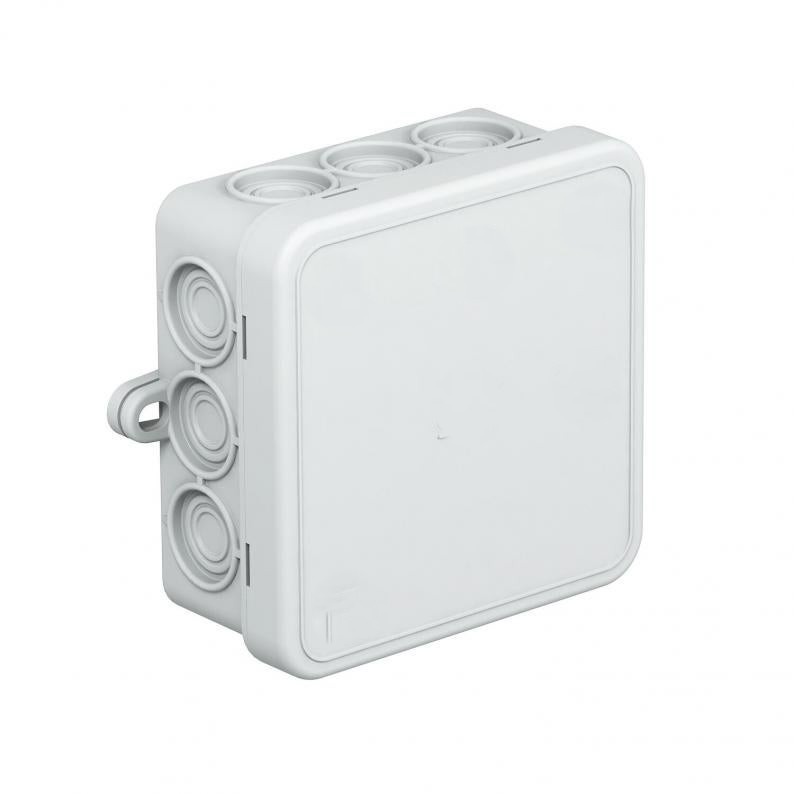

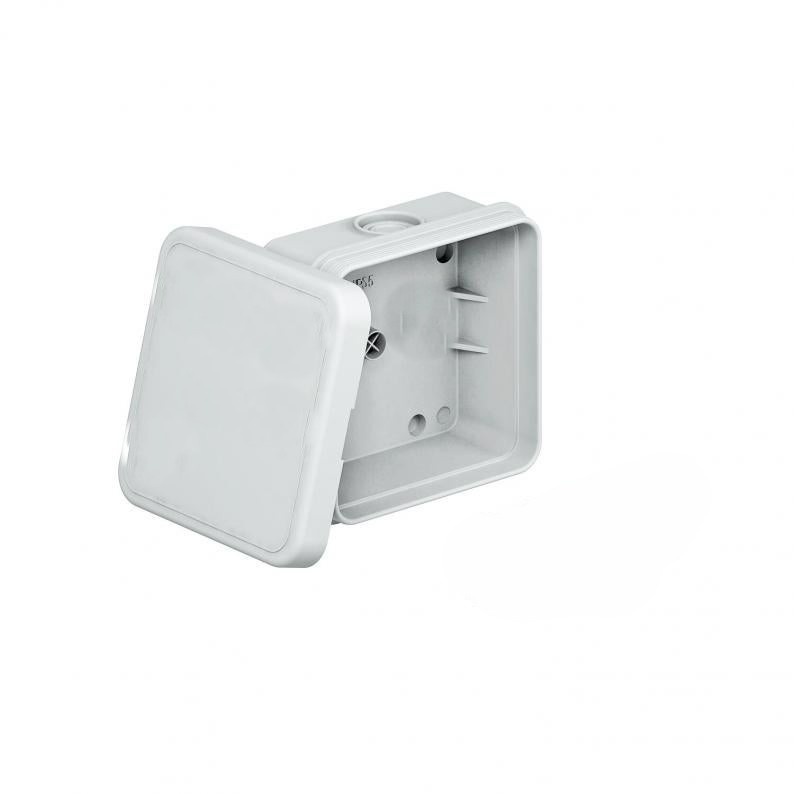

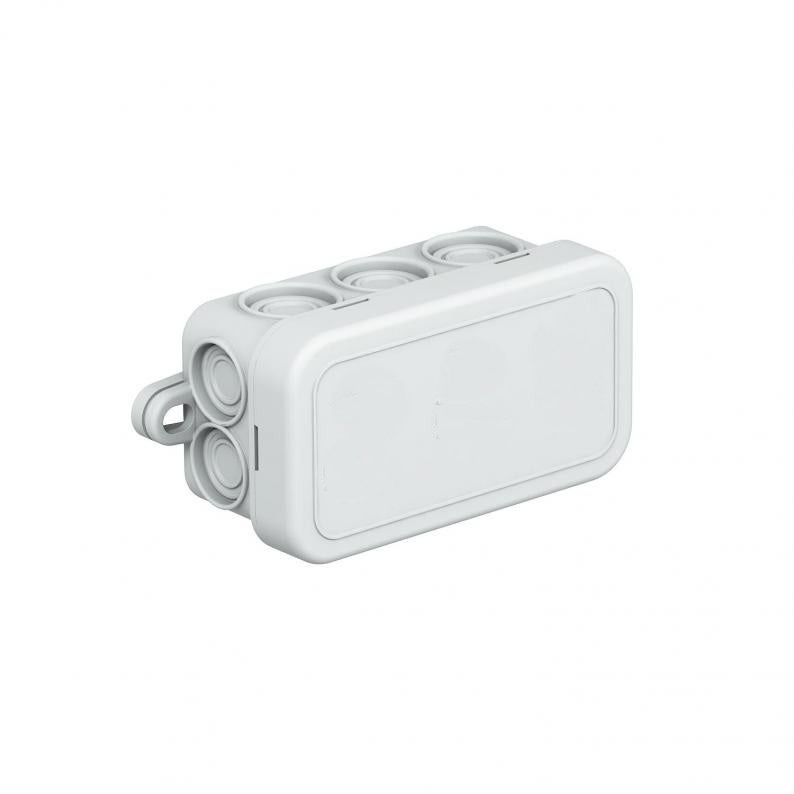

The A series runs from the compact A6 at 69x32x30 mm with ten cable entries to the A18 at 115x90x35 mm with eighteen, with A8, A8-T, A11 and A14 filling the sizes between. Every box is moulded in halogen-free thermoplastic and finished in light grey RAL 7035, and the A8-T adds a pre-installed terminal strip so circuits can be terminated without extra hardware on site.

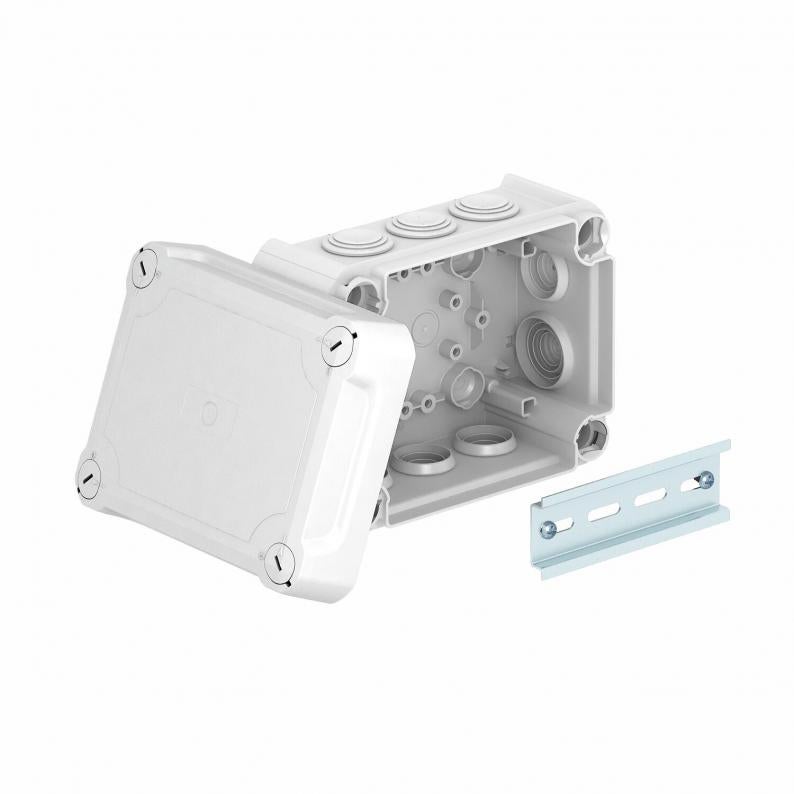

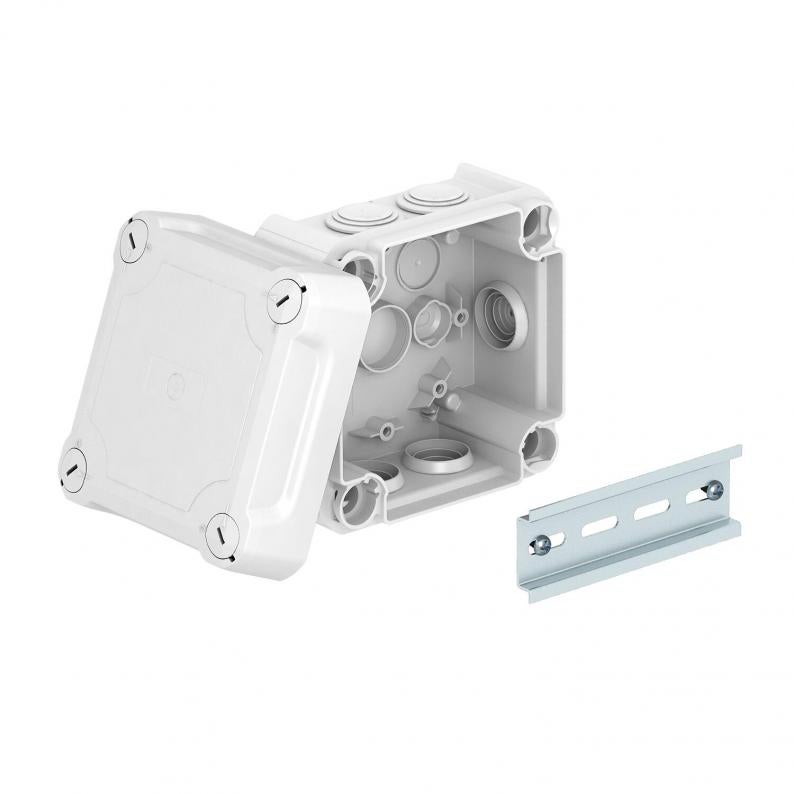

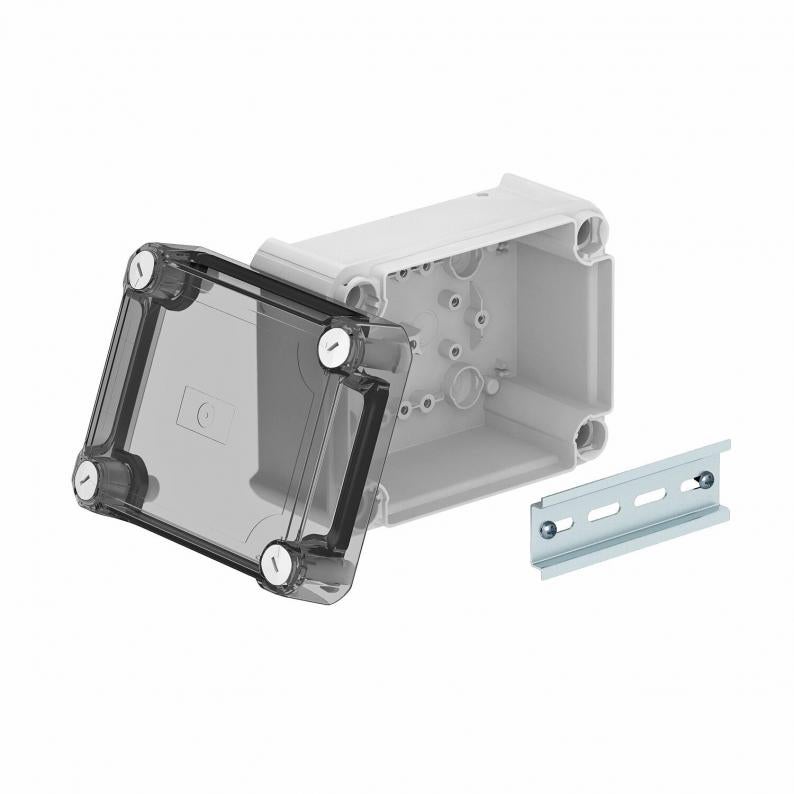

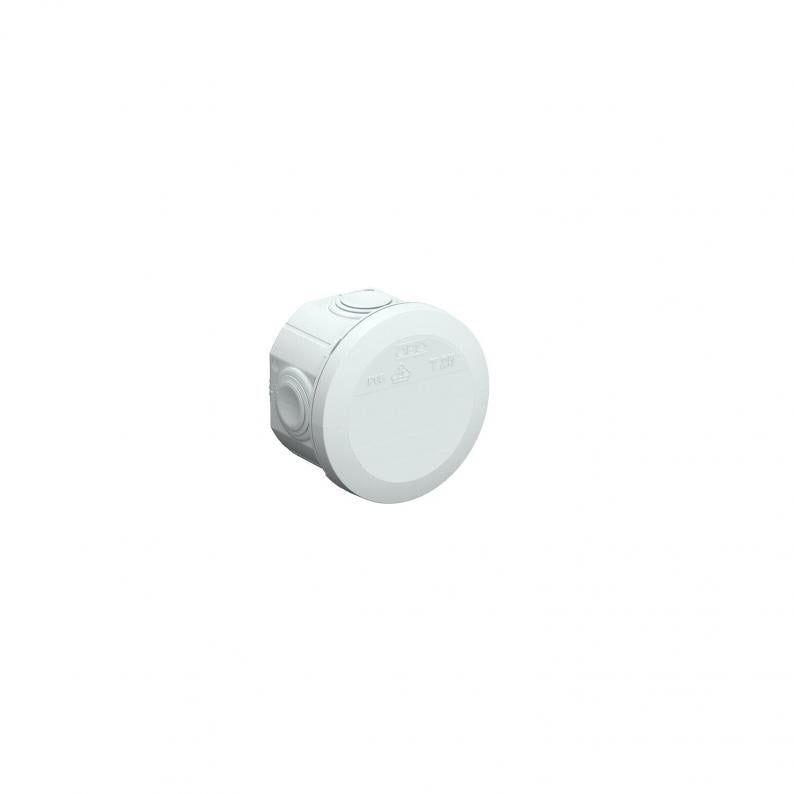

T Series - All-Rounders (IP66)

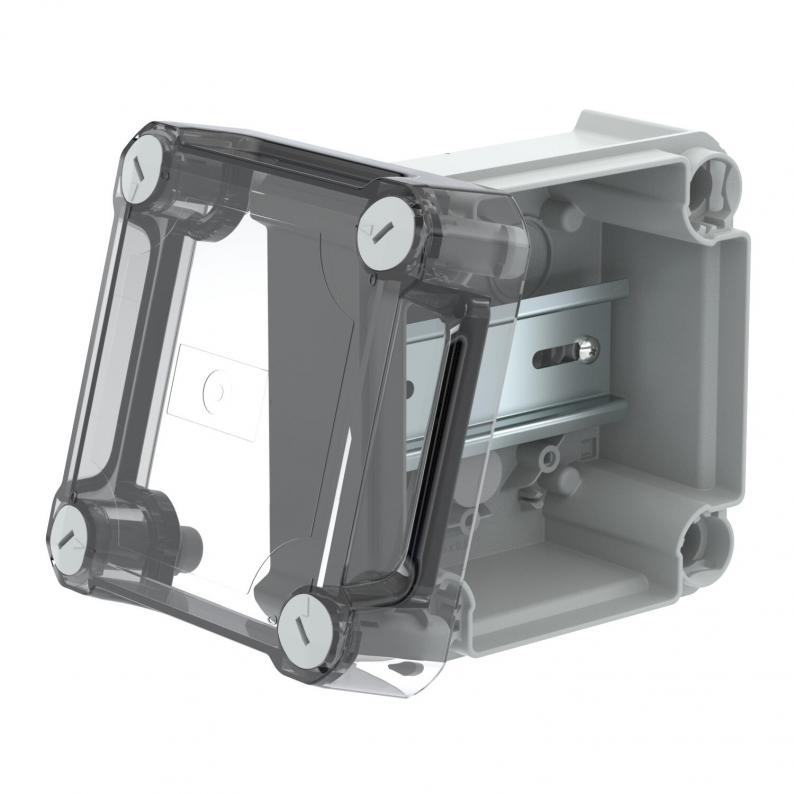

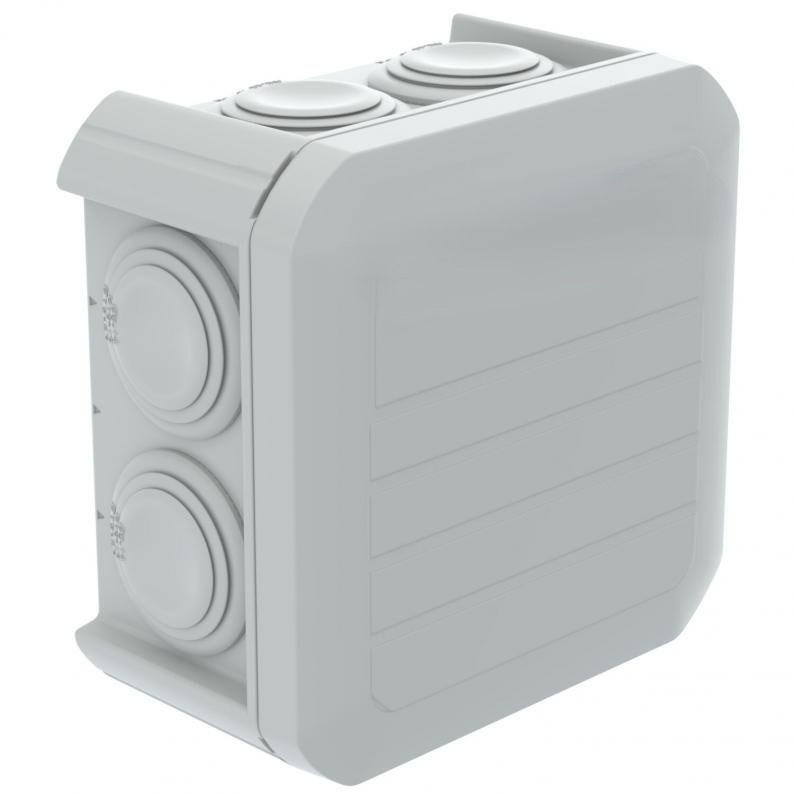

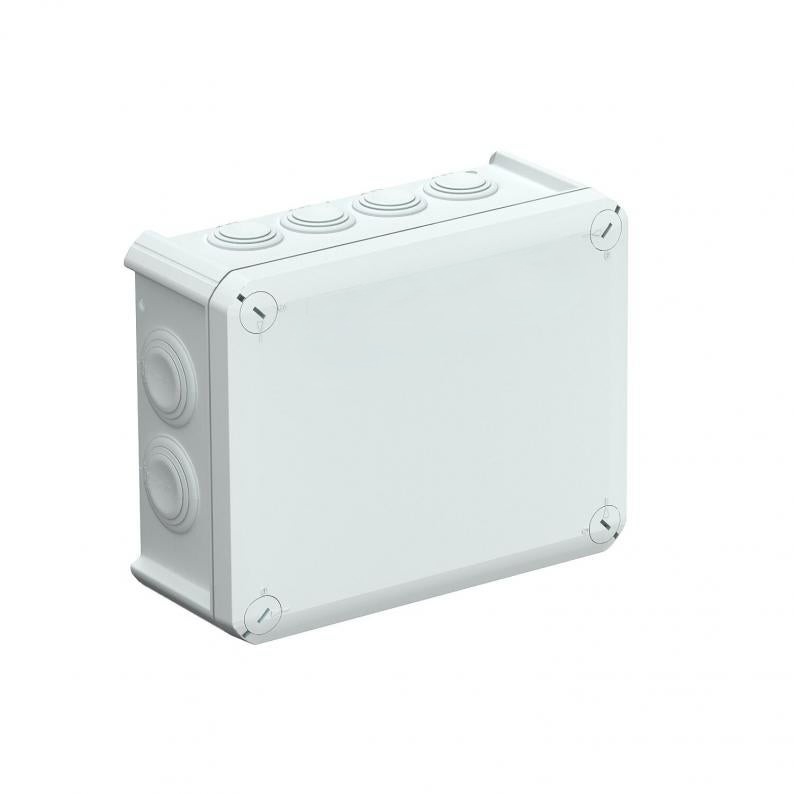

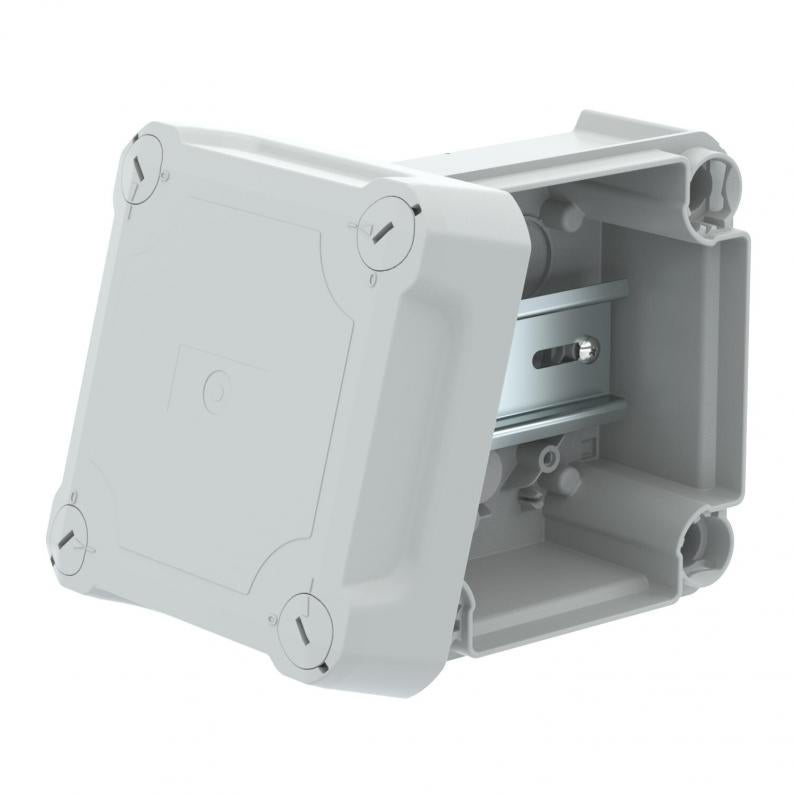

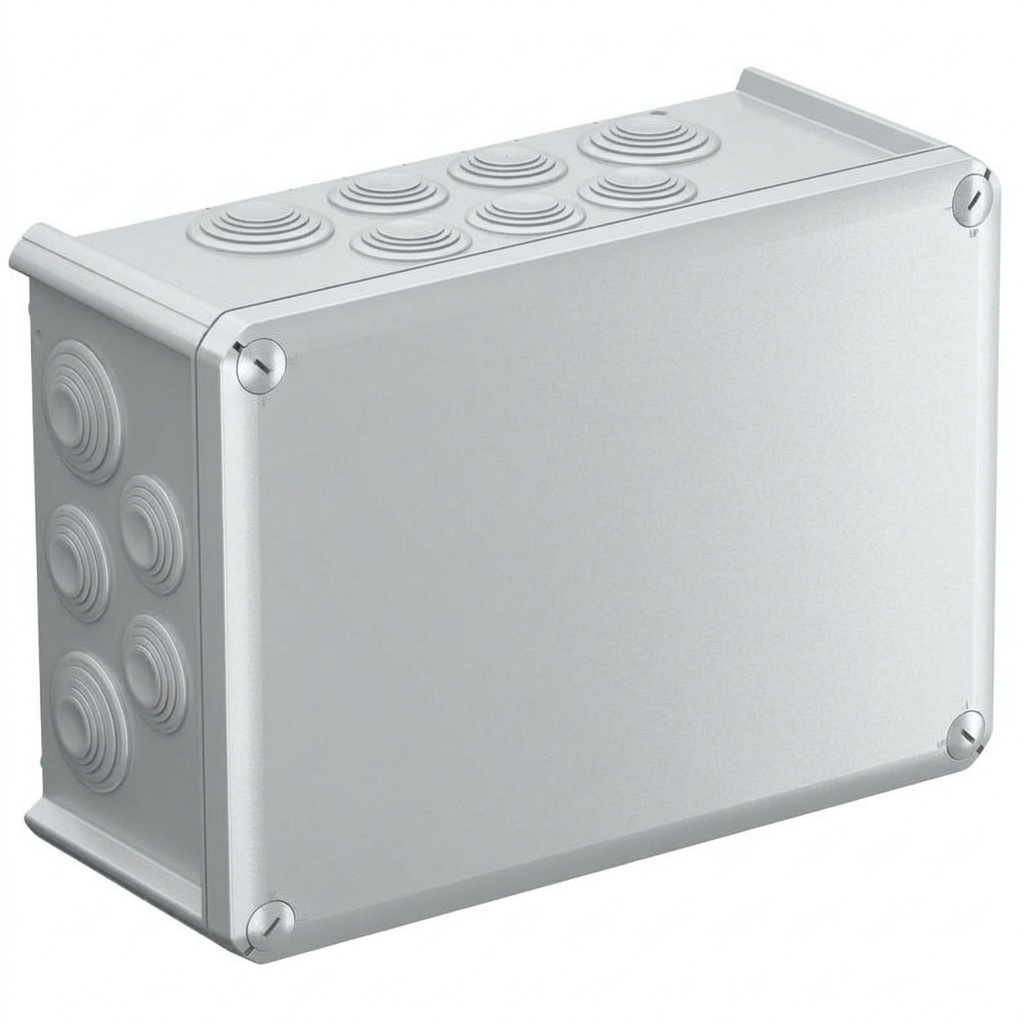

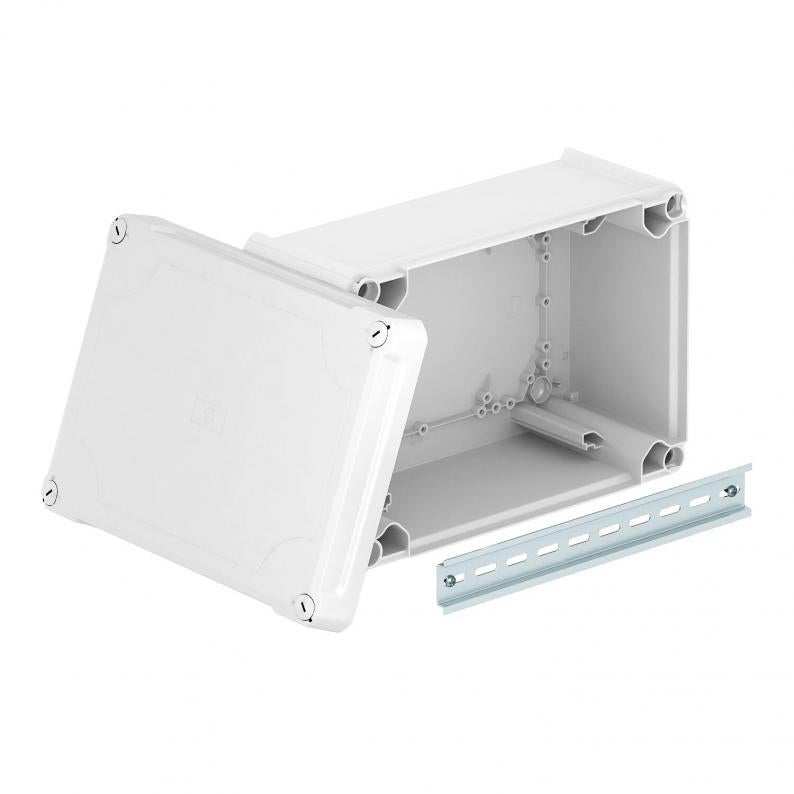

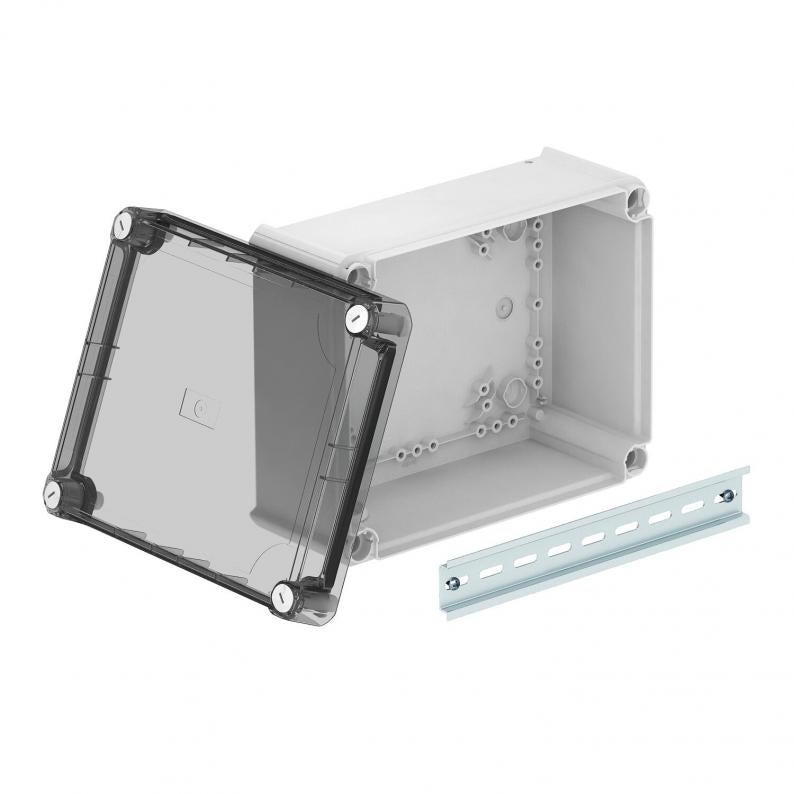

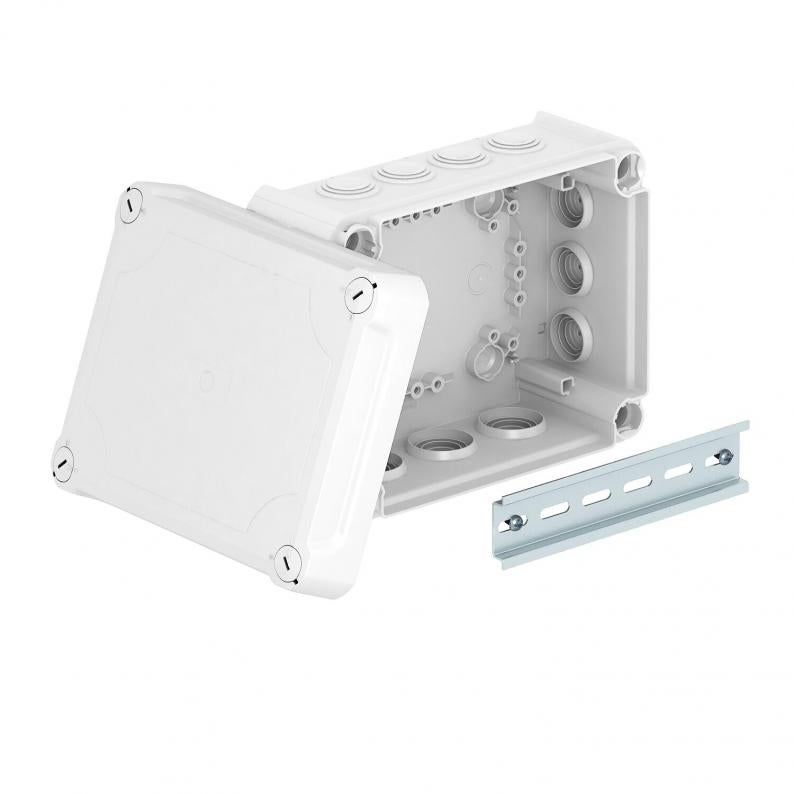

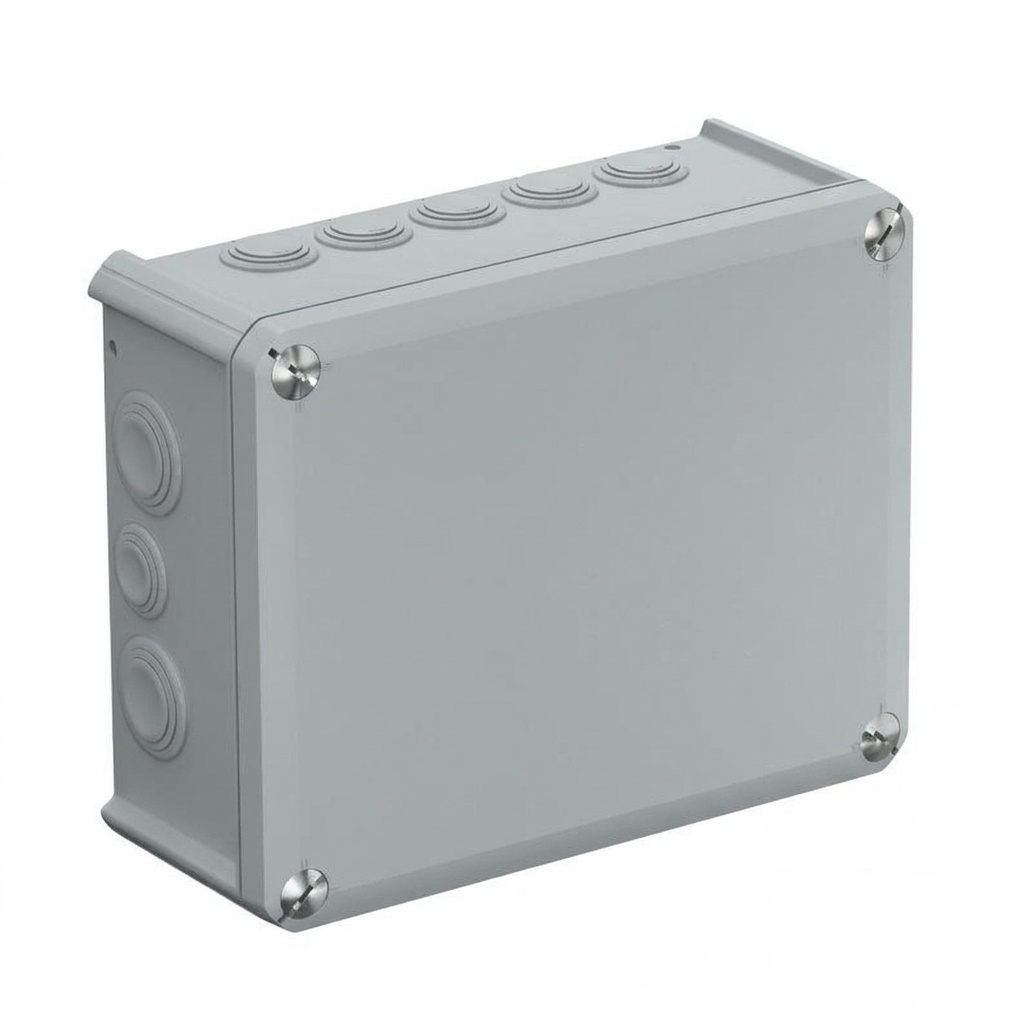

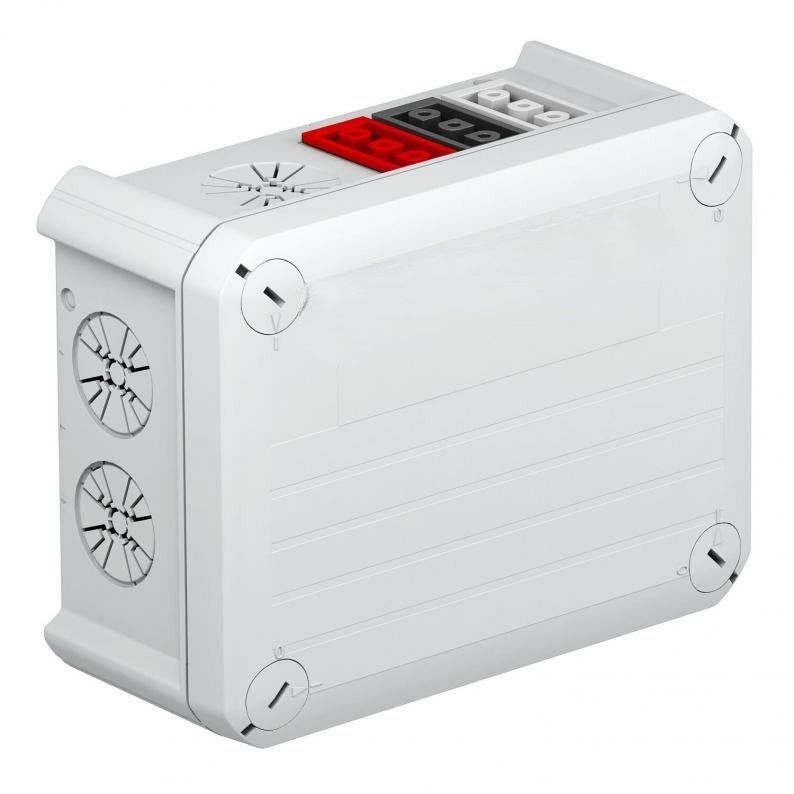

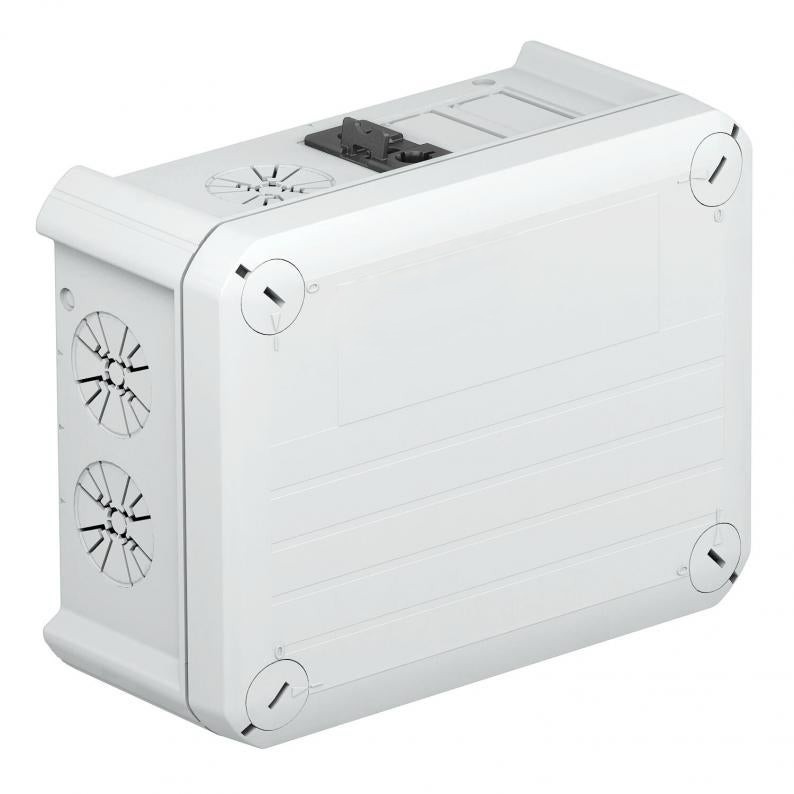

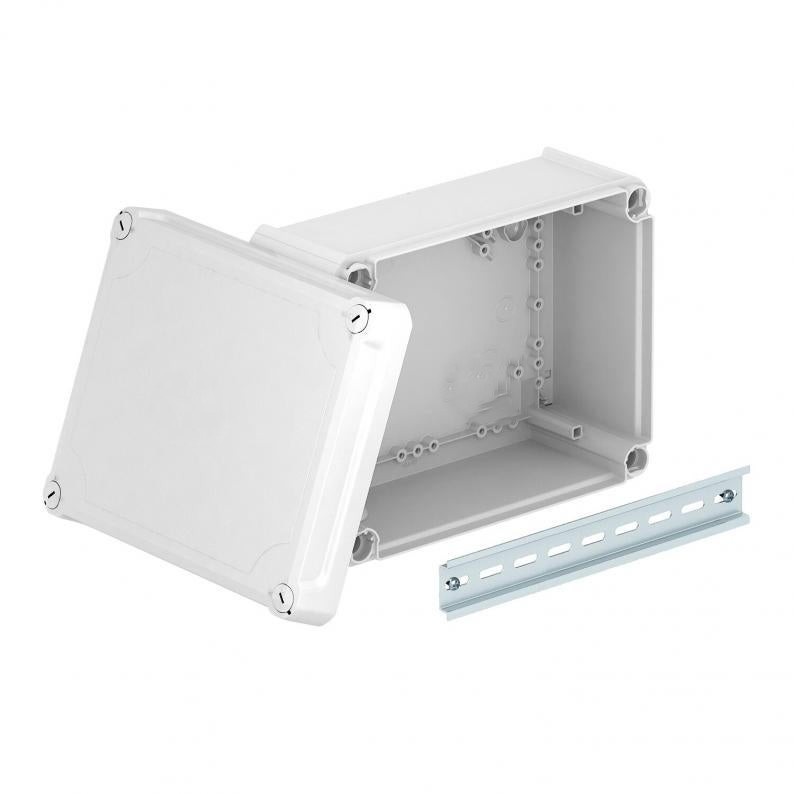

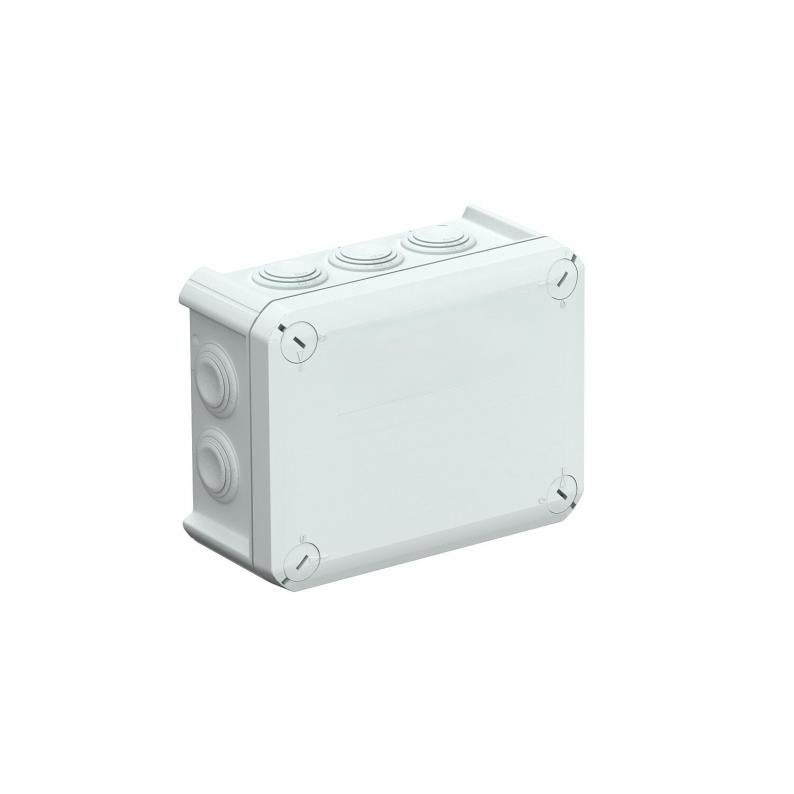

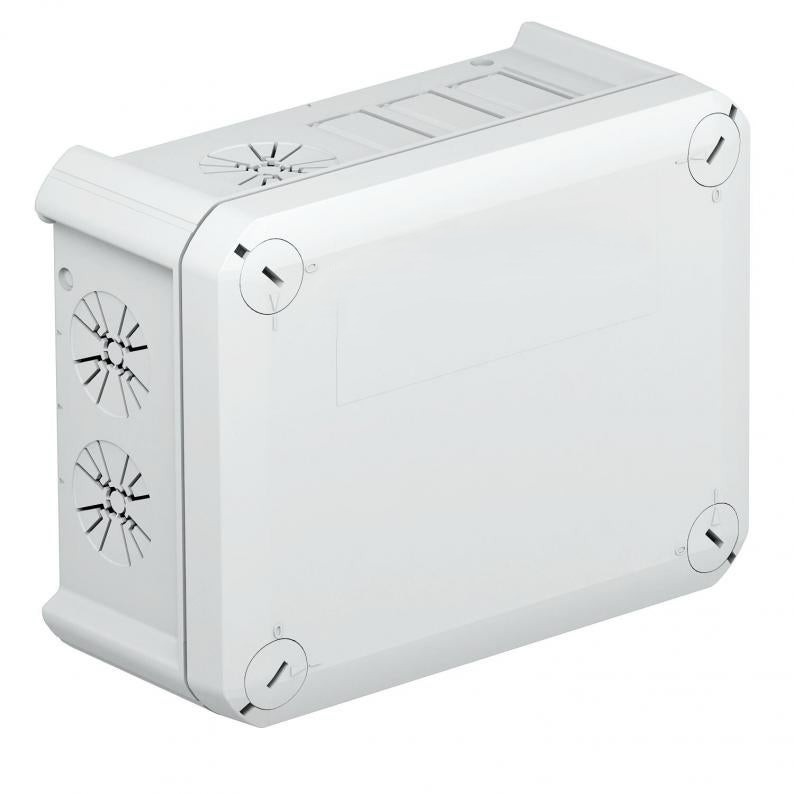

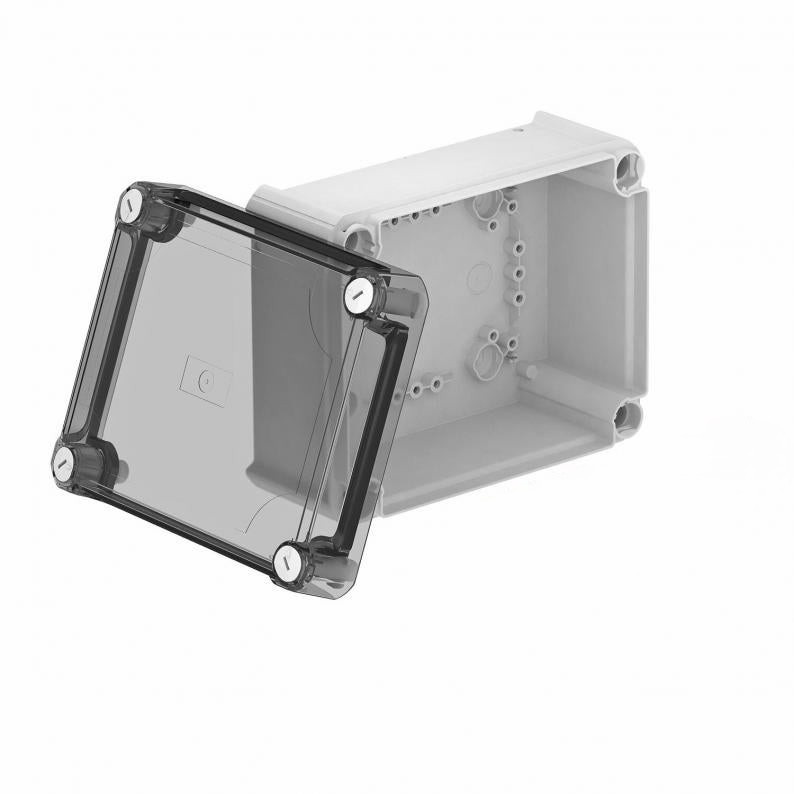

The T series is the largest family, covering T25 through T350 with UV-stabilised bodies, plug-in seals and RAL 7035 finishes. Elevated covers, closed covers and transparent covers let the same footprint be ordered for extra wiring space, sealed runs or quick inspection, while Wieland-prepared versions such as the T100-W3, T100-WS and T100-WC bring plug-in power to fit-out work.

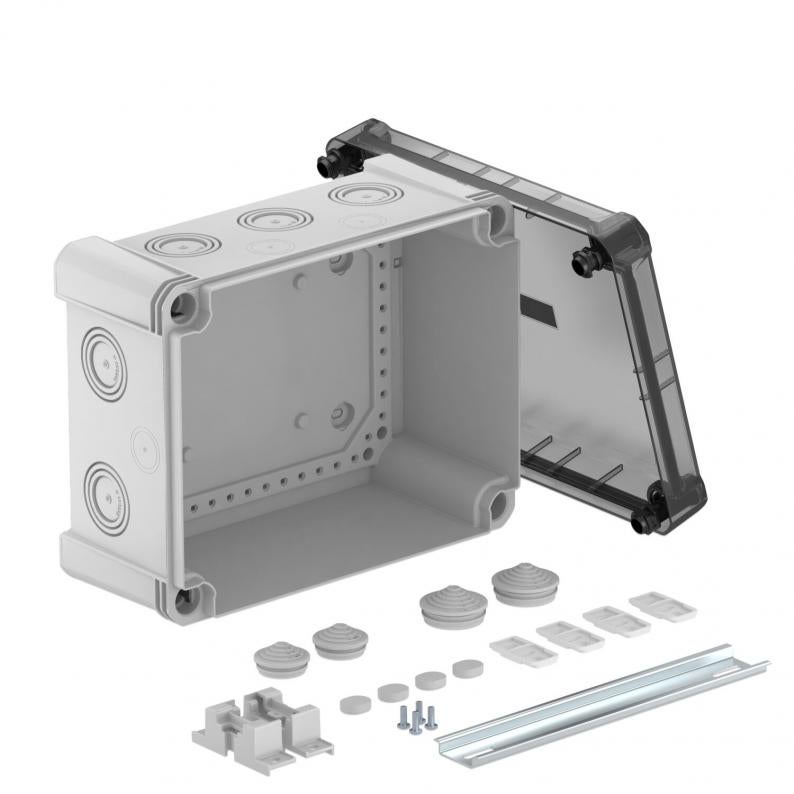

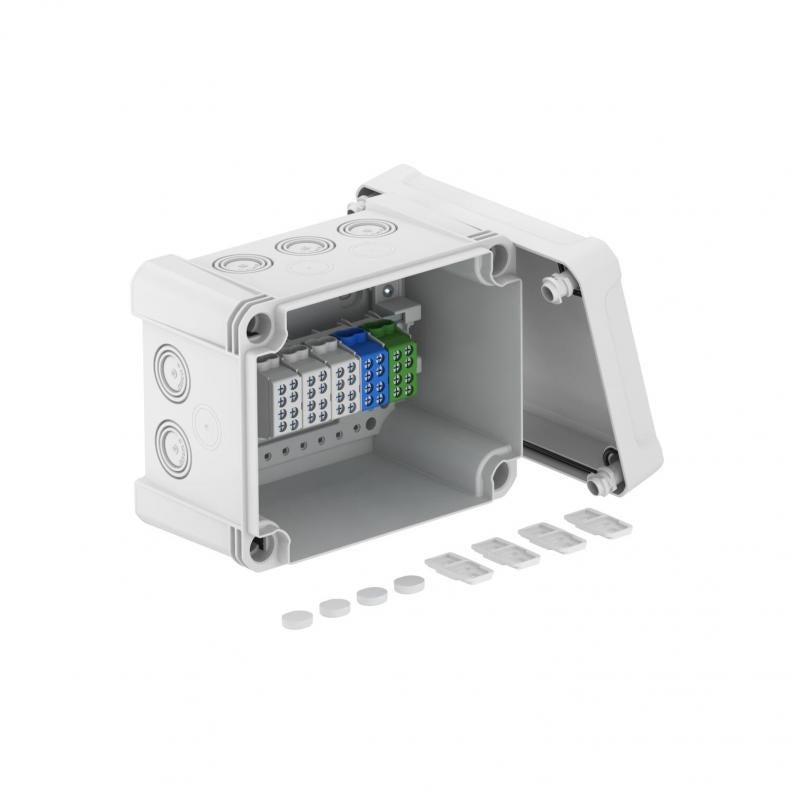

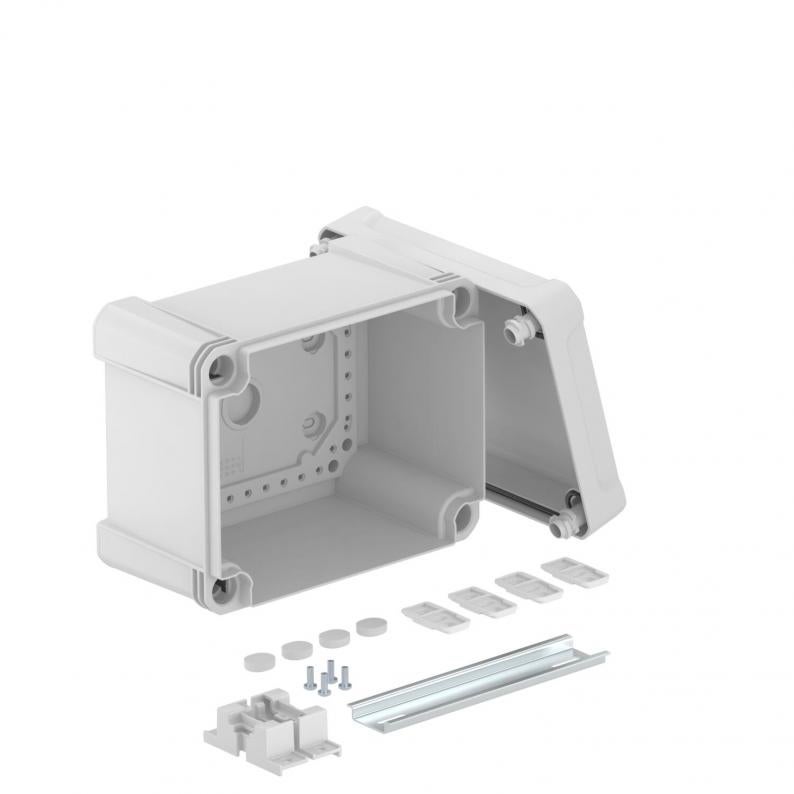

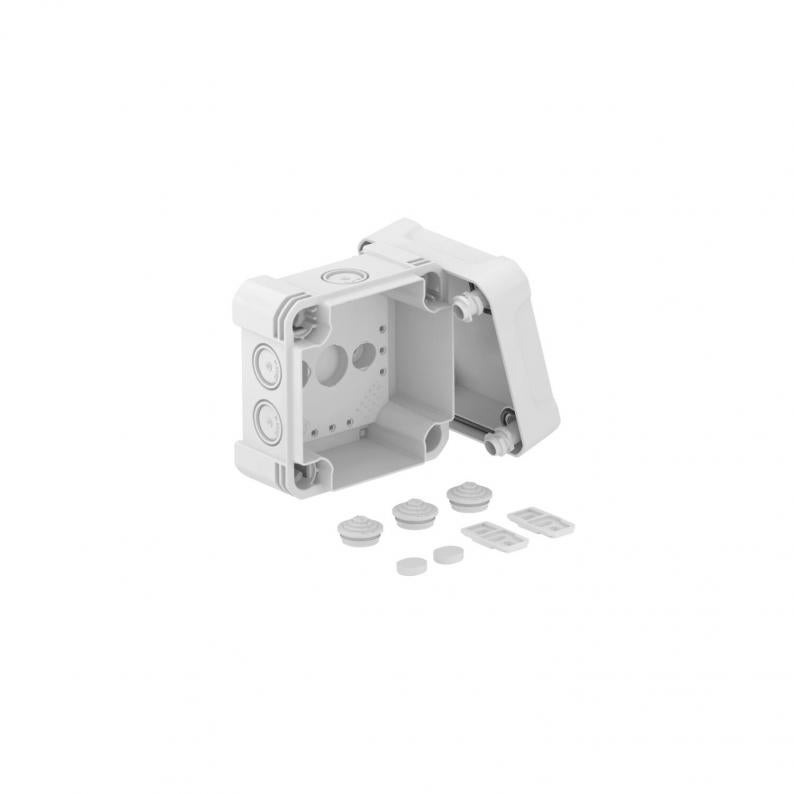

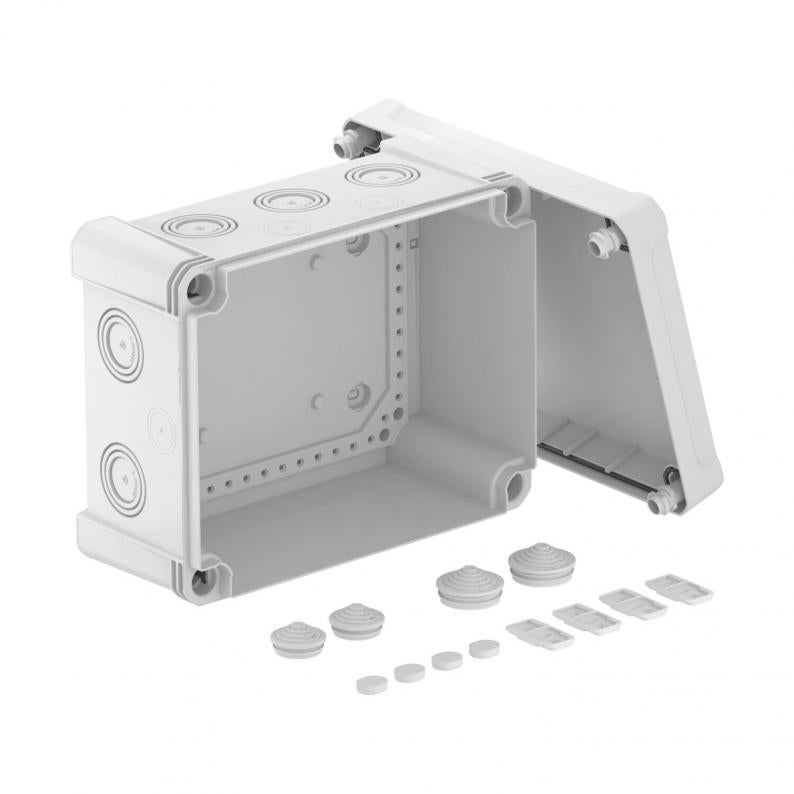

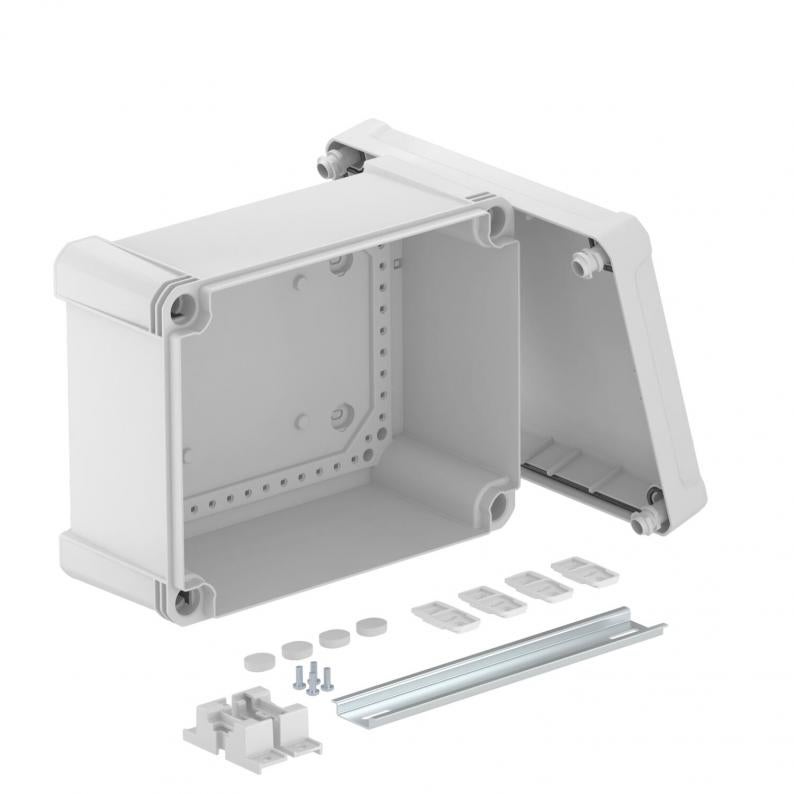

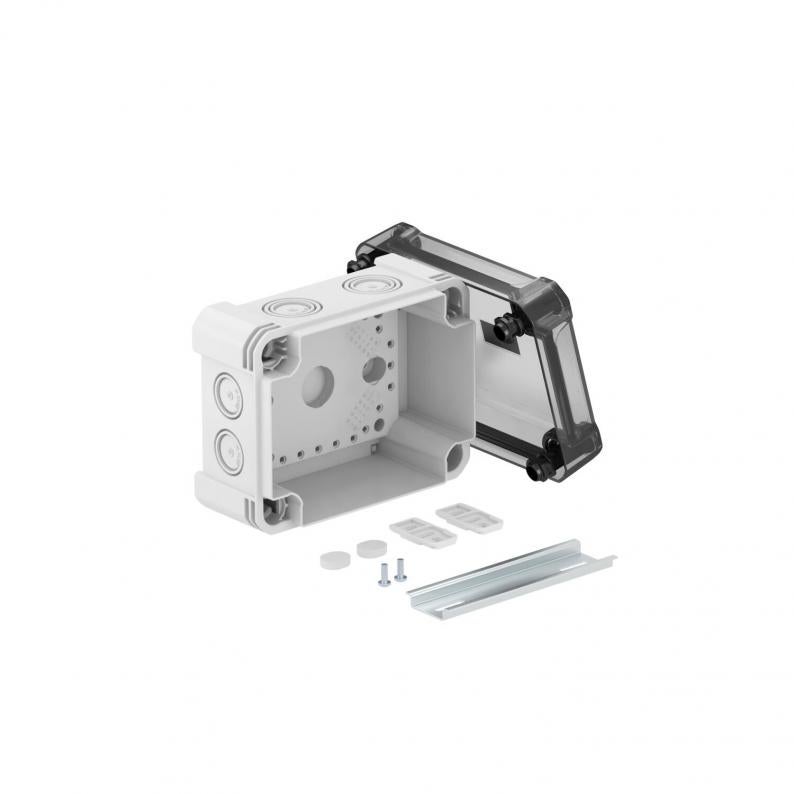

X Series - Waterproof Outdoor (IP67)

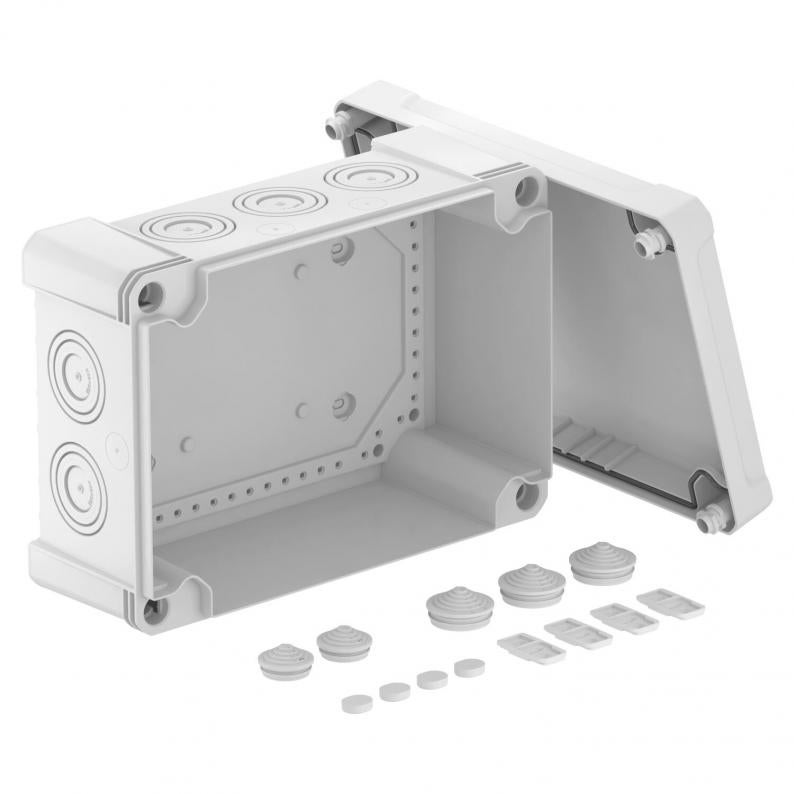

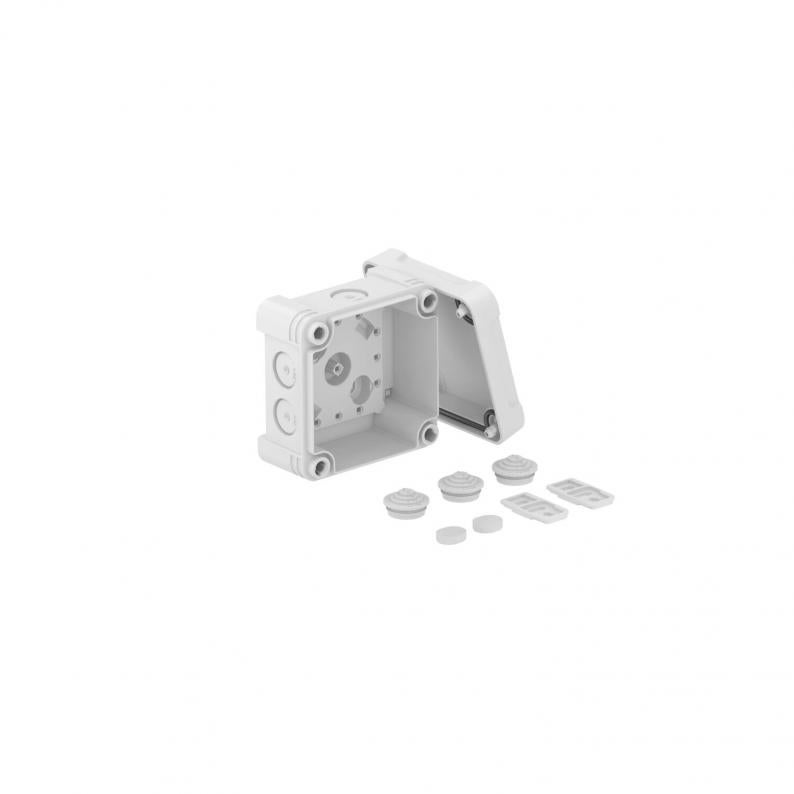

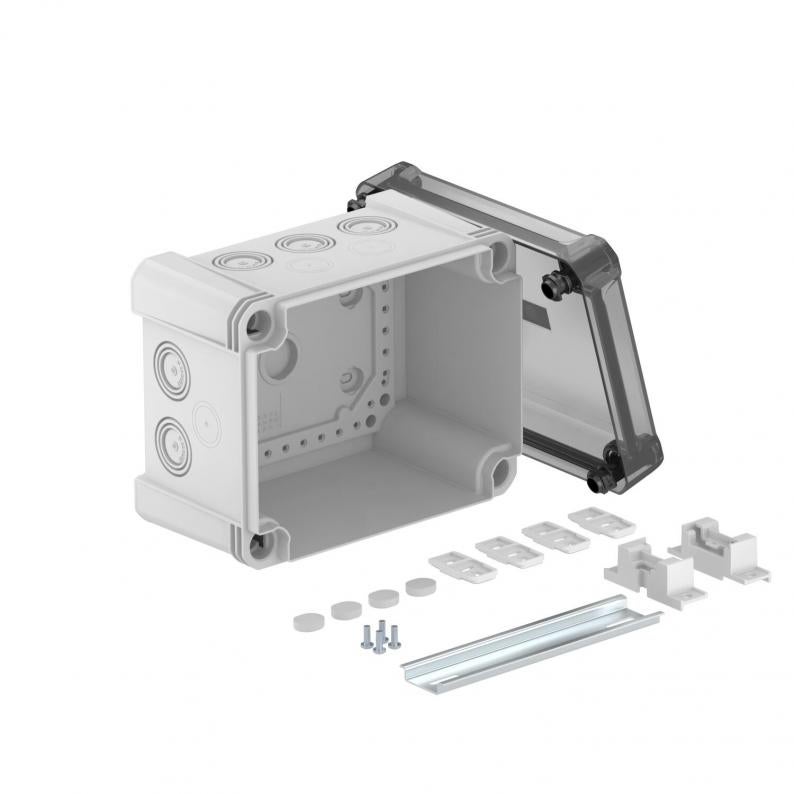

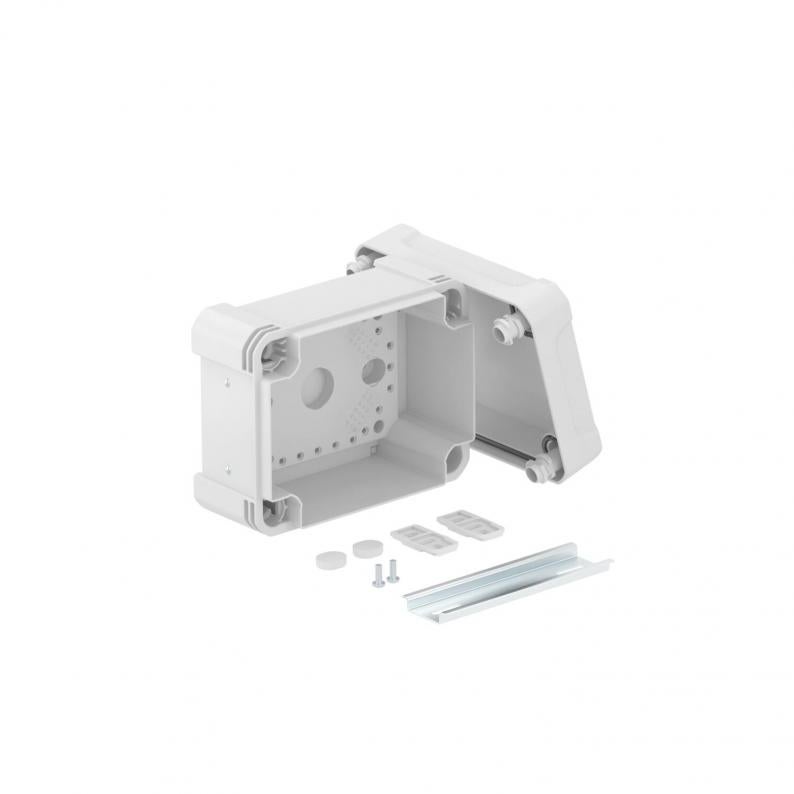

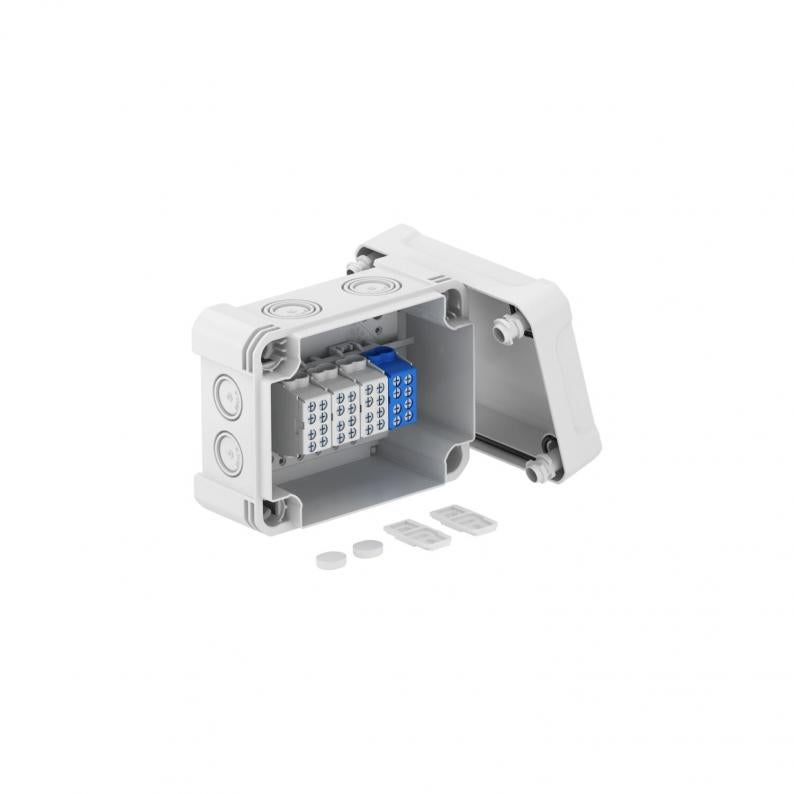

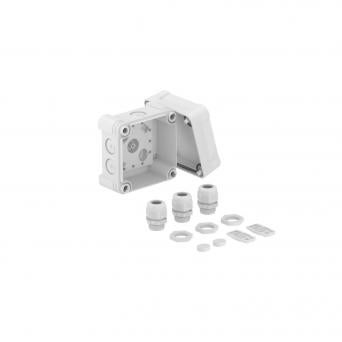

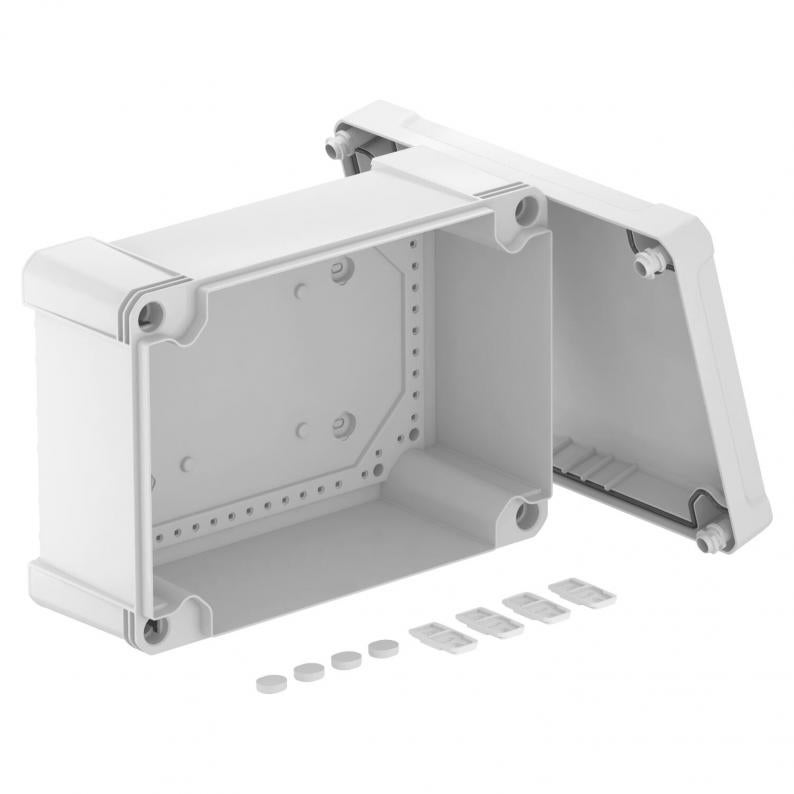

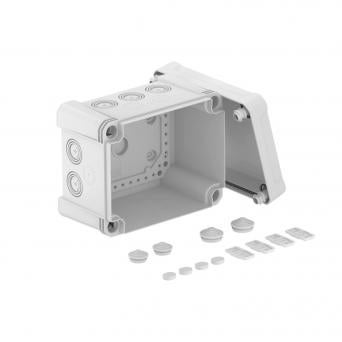

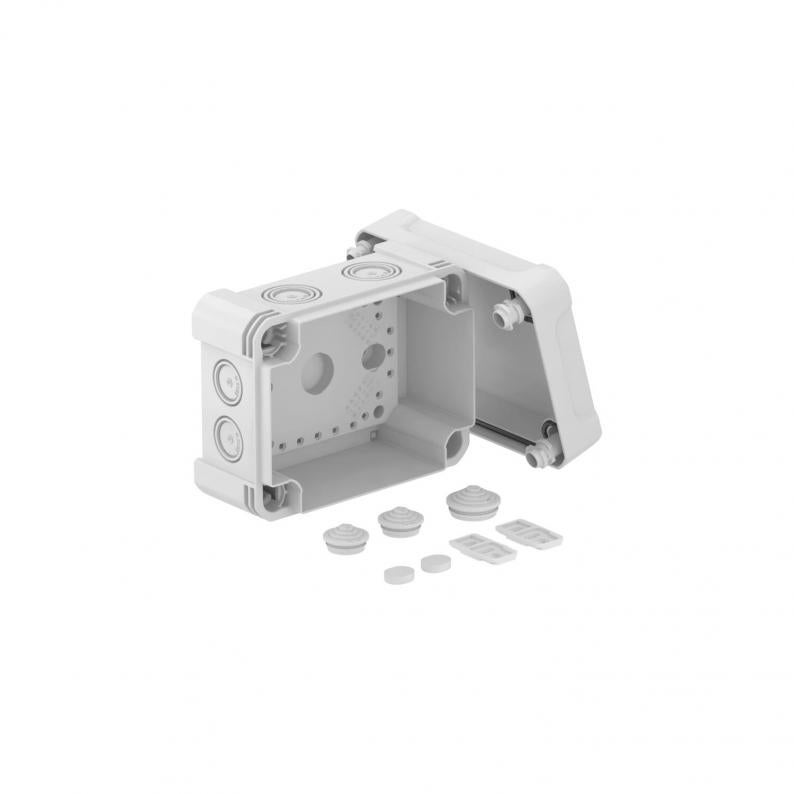

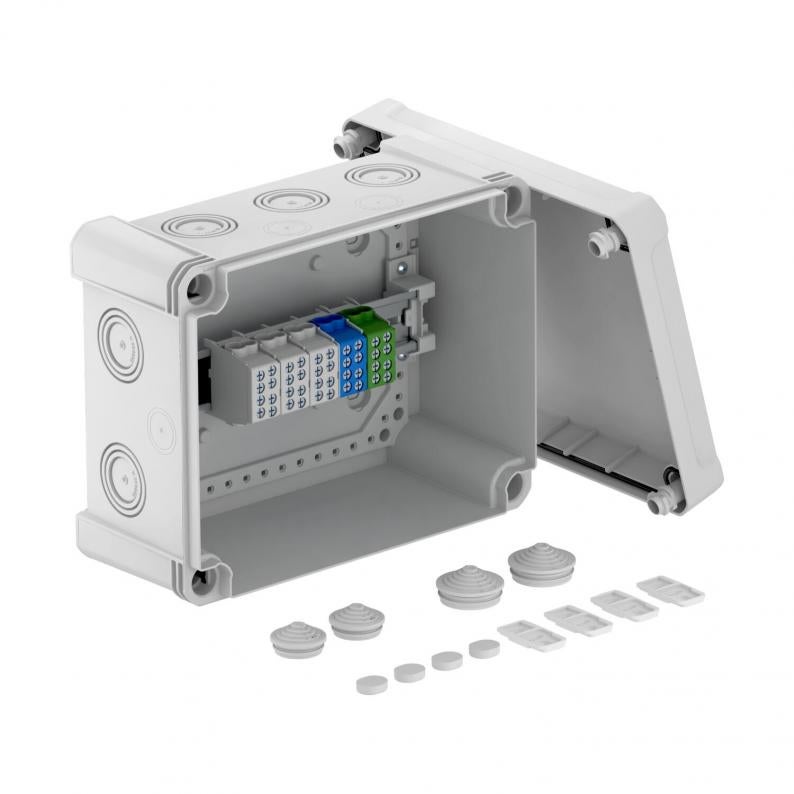

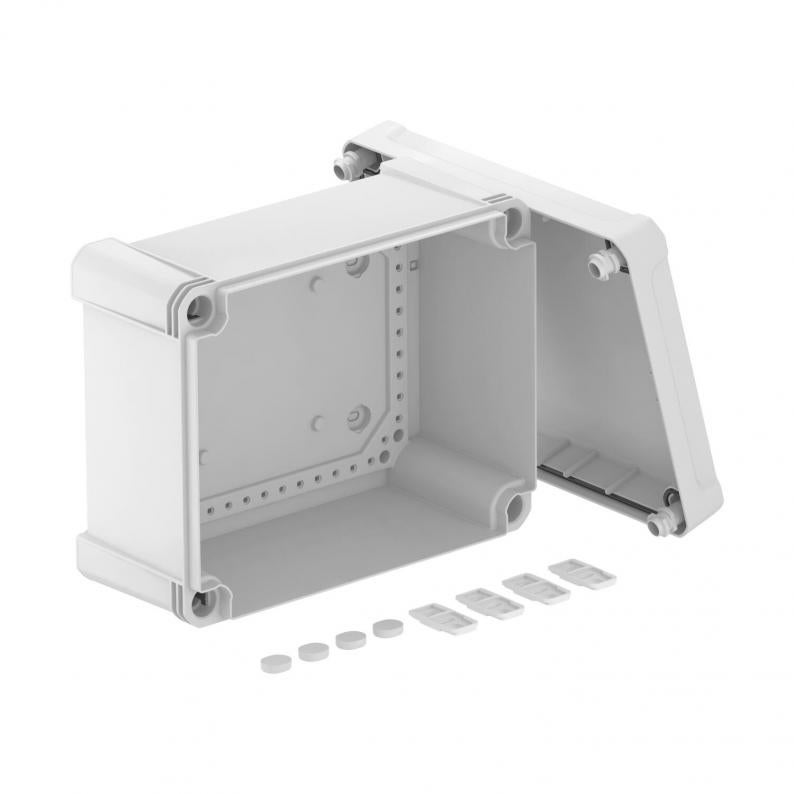

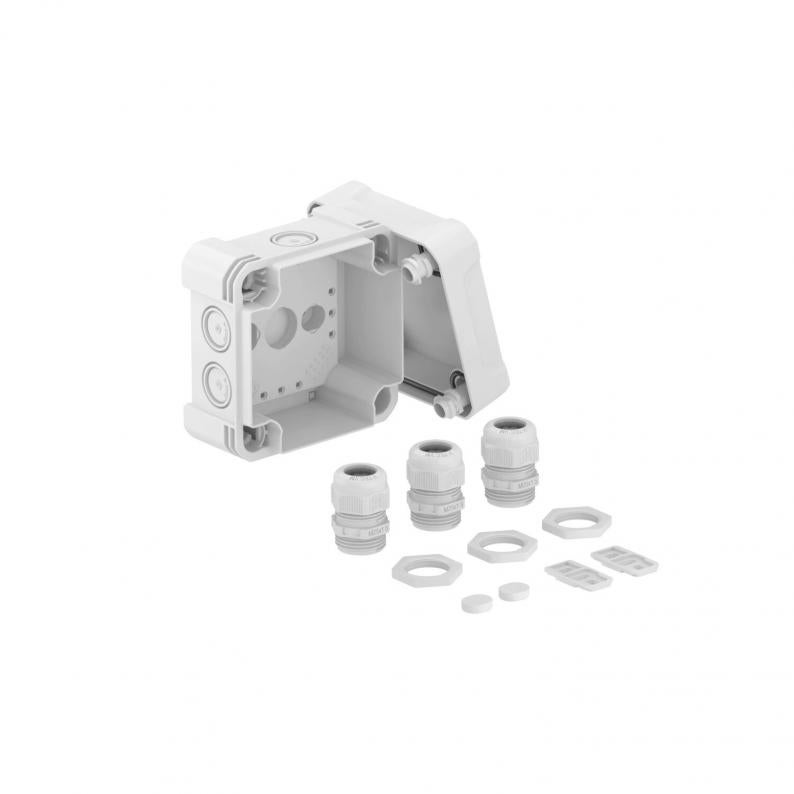

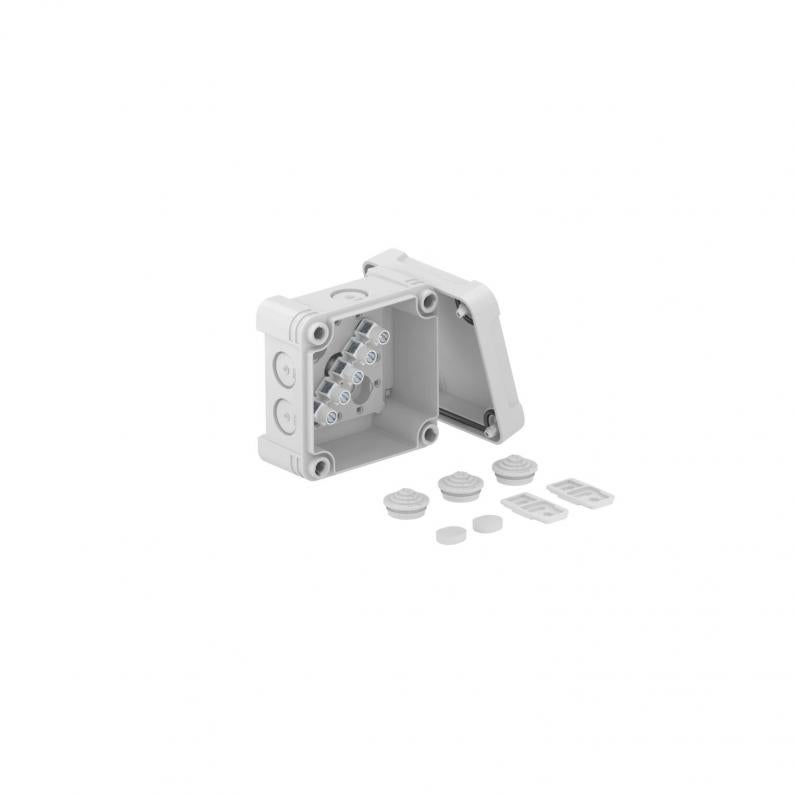

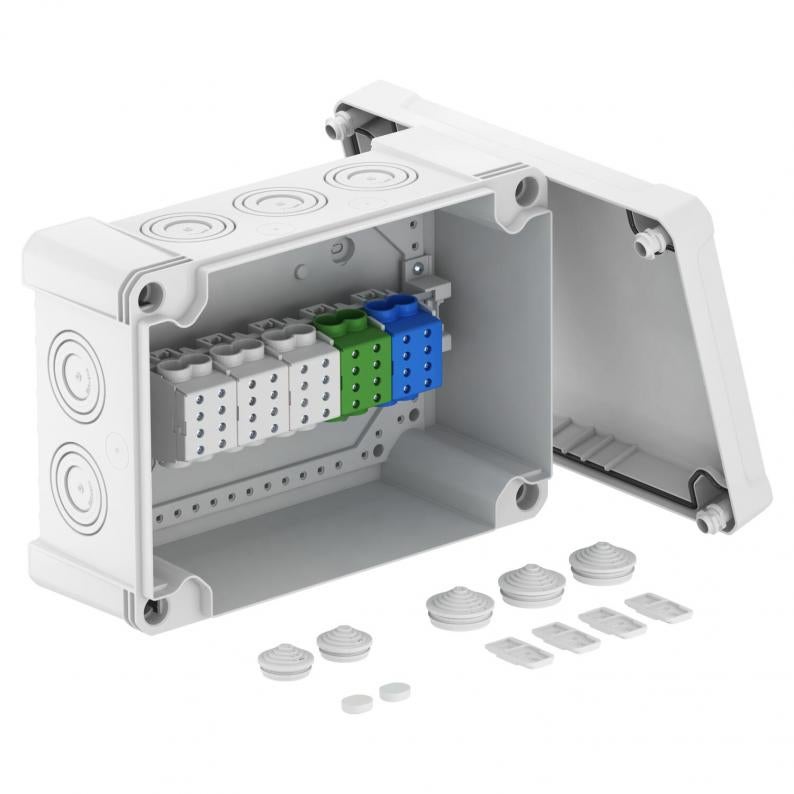

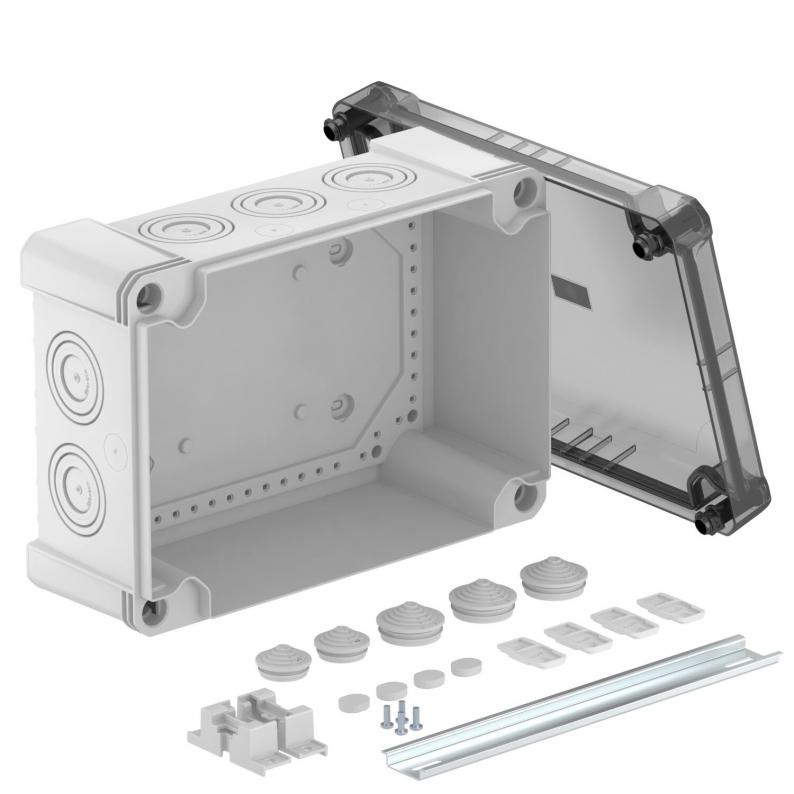

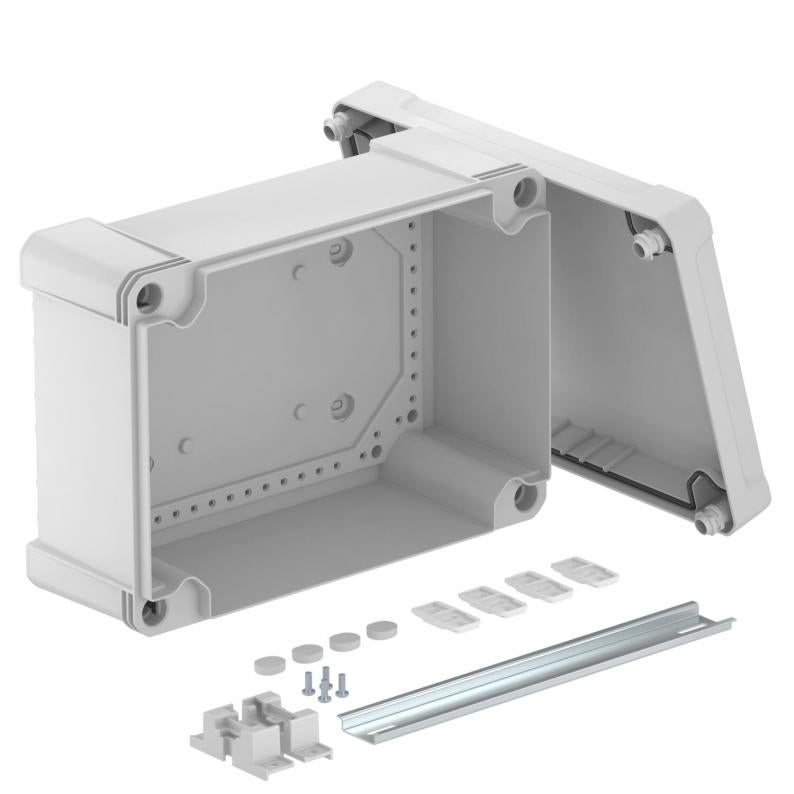

The X series spans X01 to X25 in halogen-free IK09 housings from 85x85x45 mm to 271x187x110 mm. Options include pre-installed terminal strips, factory cable glands, main terminal blocks, grey transparent hat-profile rails and empty housings for contractors who build their own assemblies to a project schedule.

MX Series - Aluminium Extreme-Duty (IP66)

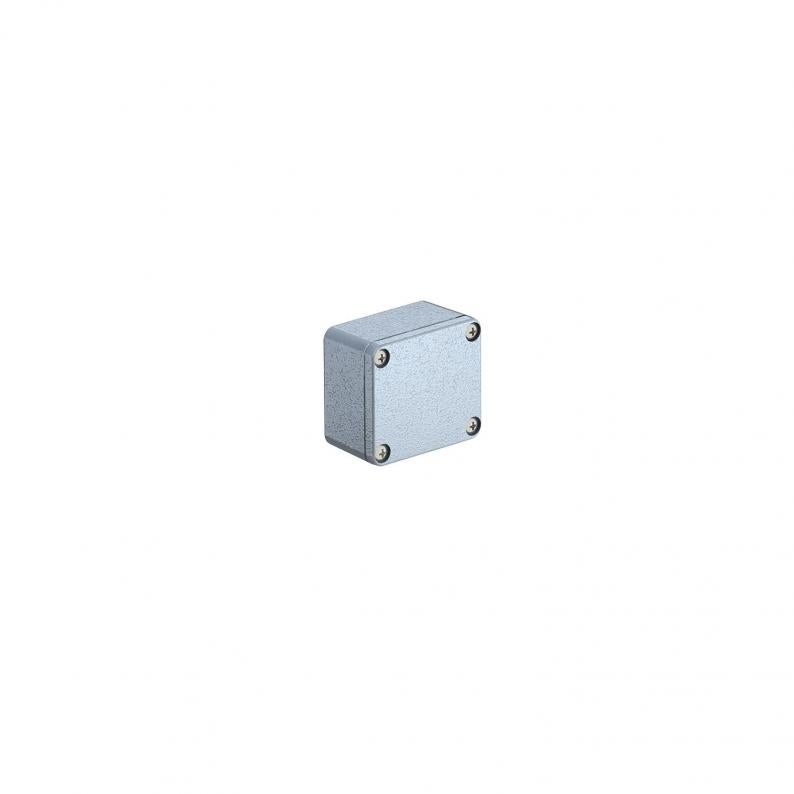

The MX aluminium junction box is supplied in eight sizes from MX06 to MX36 for service from -40 to +125 degrees, with EMC protection and a powder-coated or paintable finish for plants, energy and process environments where a thermoplastic box will not last.

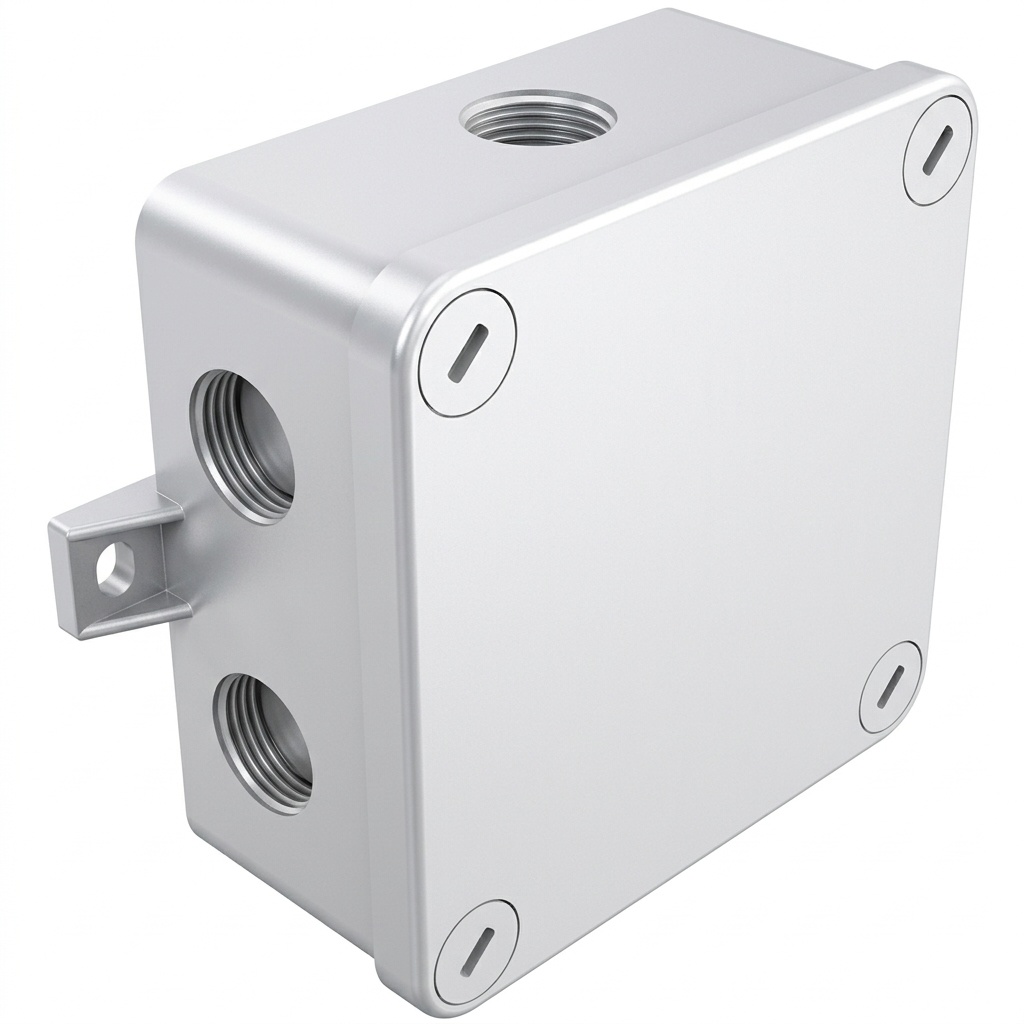

B Series - Professional (IP54-IP67)

The B series is the general specification line for contractors who need one enclosure family that can move from indoor panels to exposed outdoor positions without switching brands or re-approving a second manufacturer.

FireBox - Fire-Rated (E30/E60/E90)

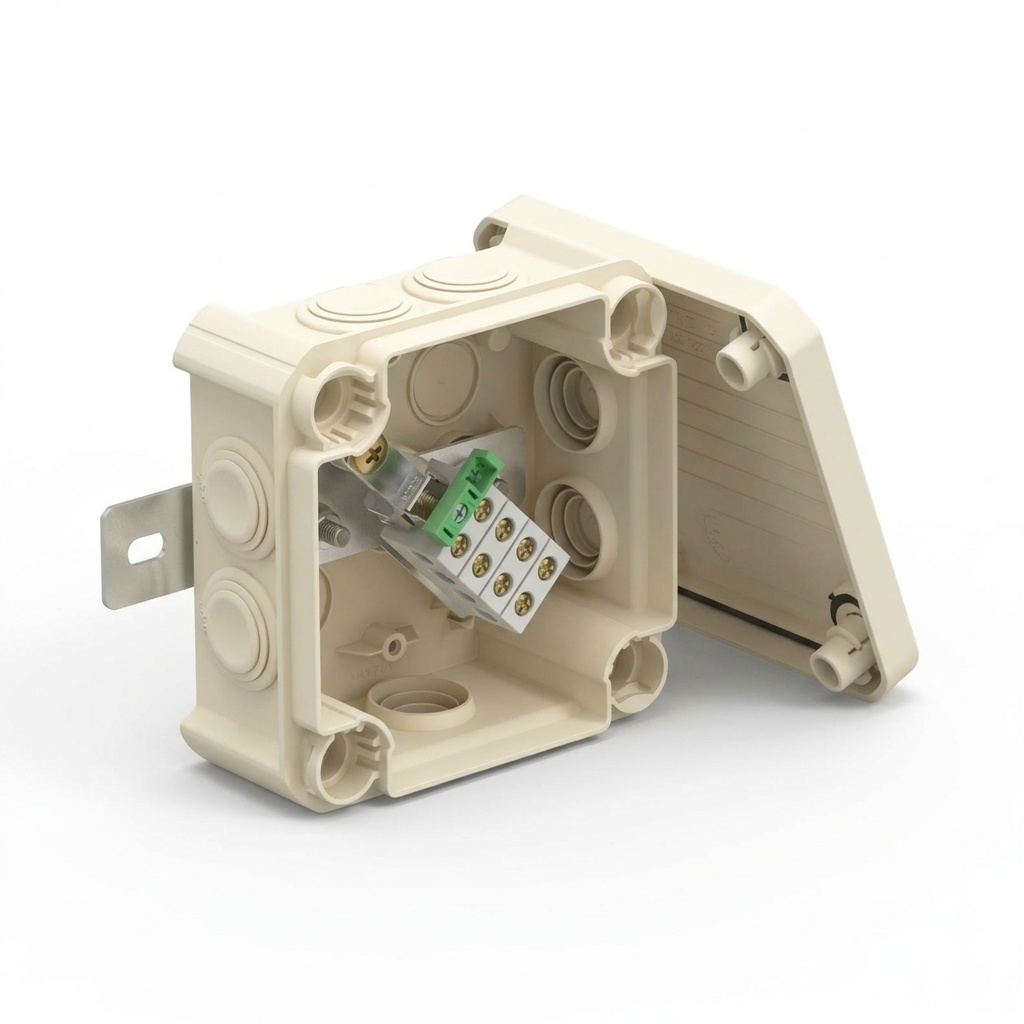

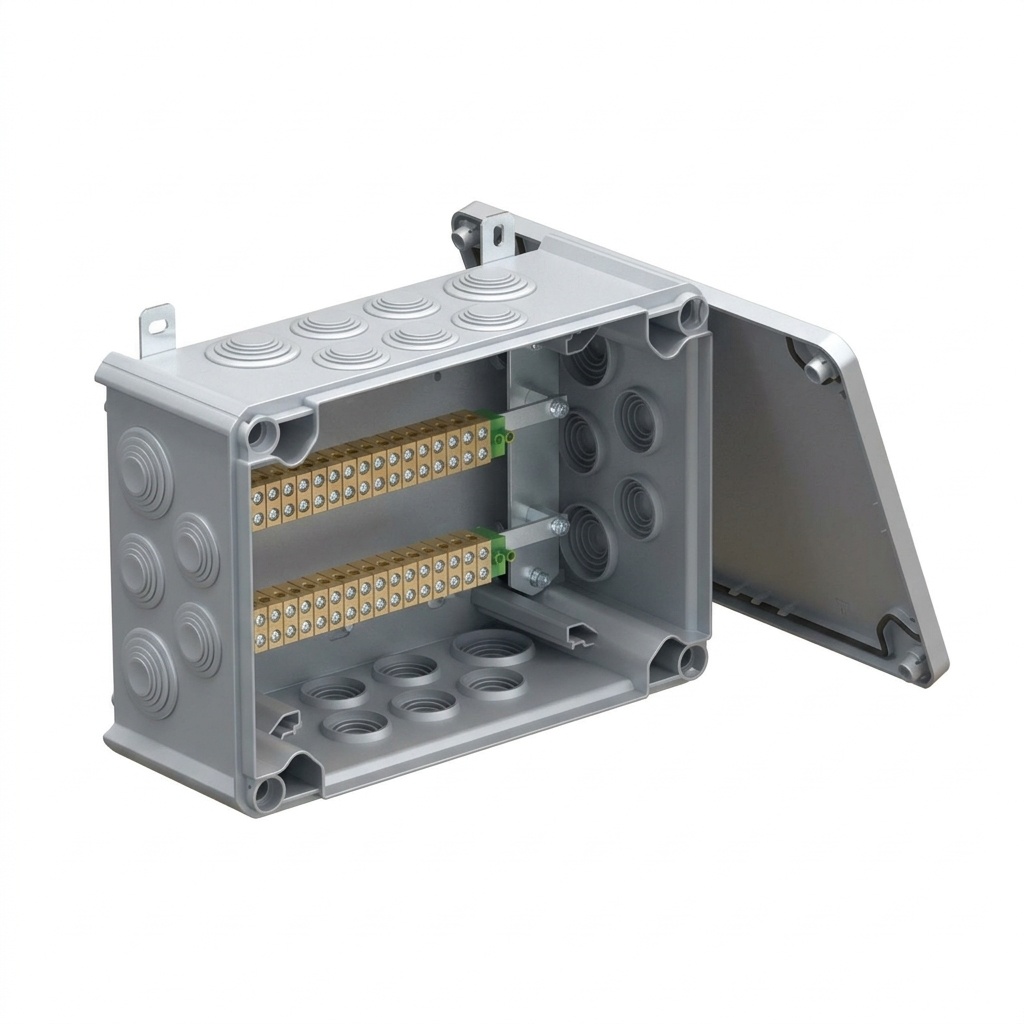

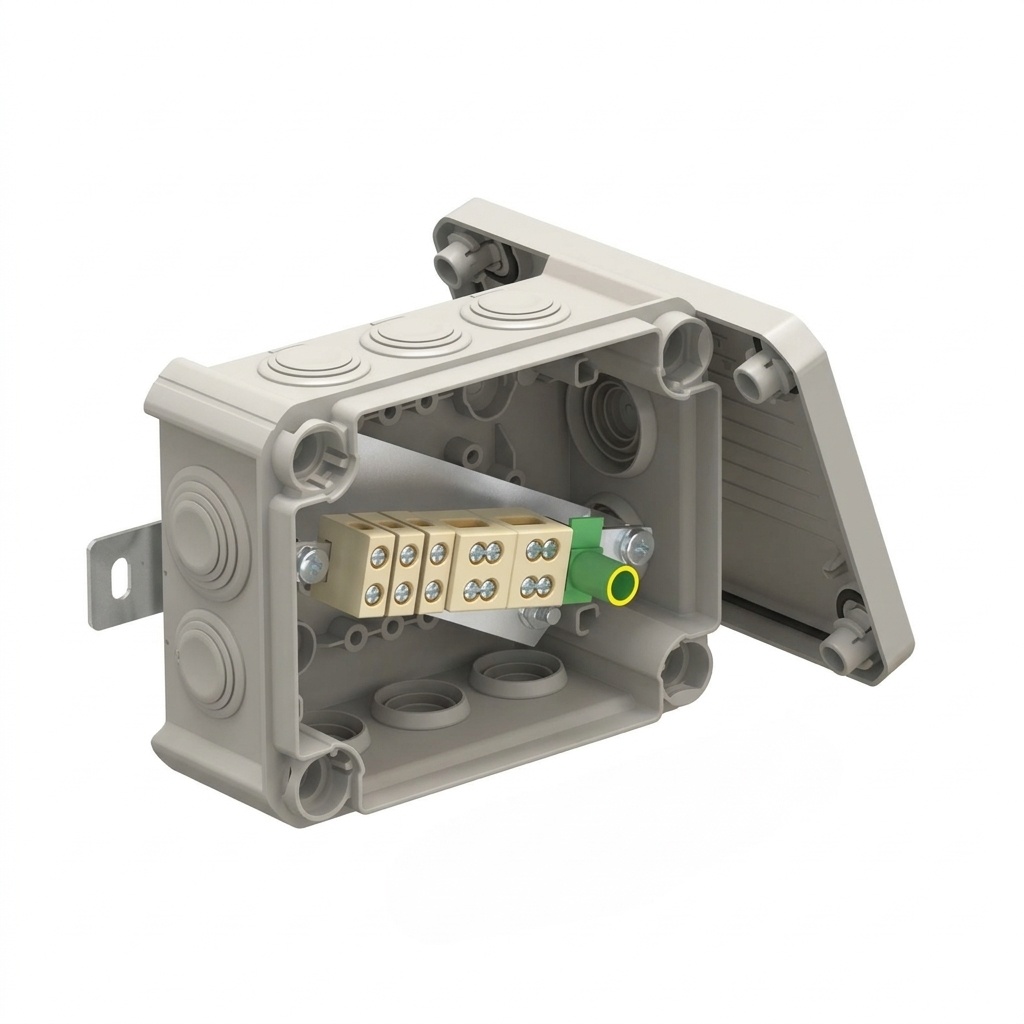

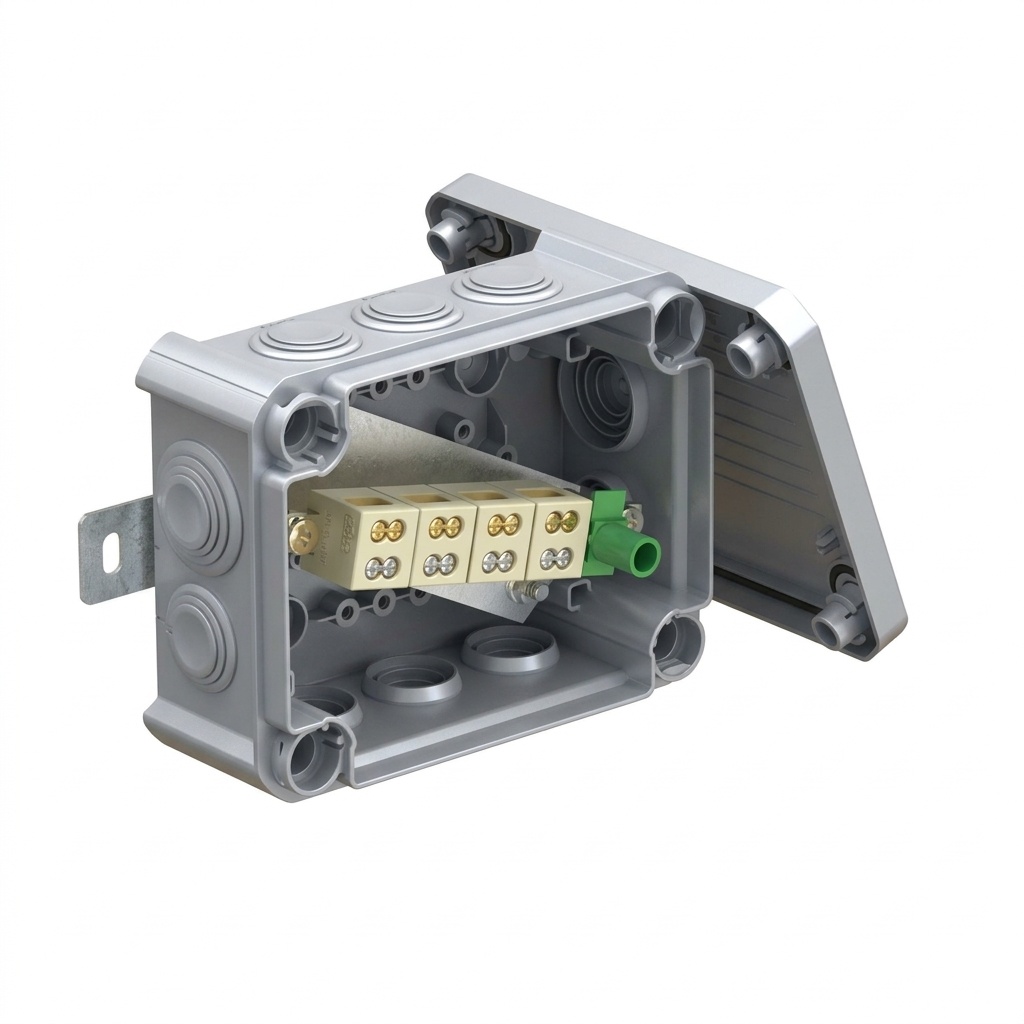

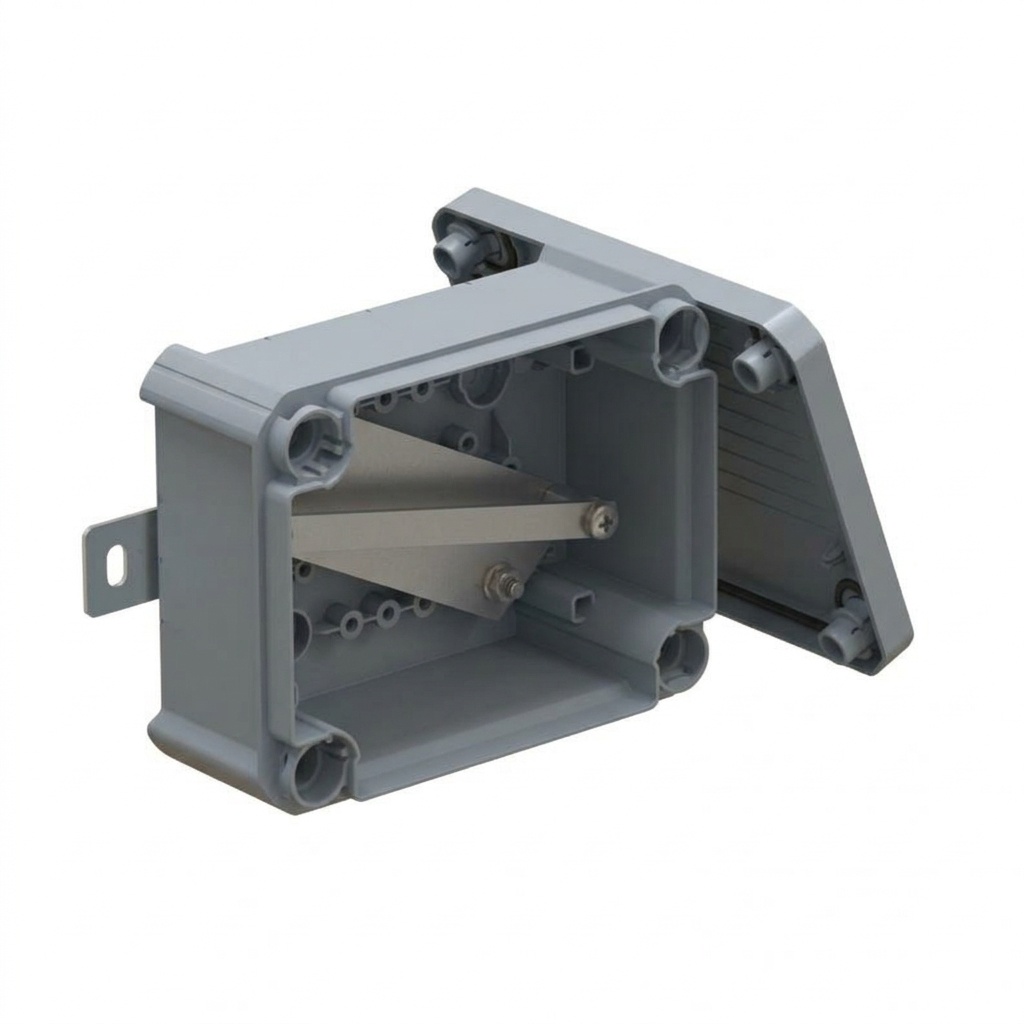

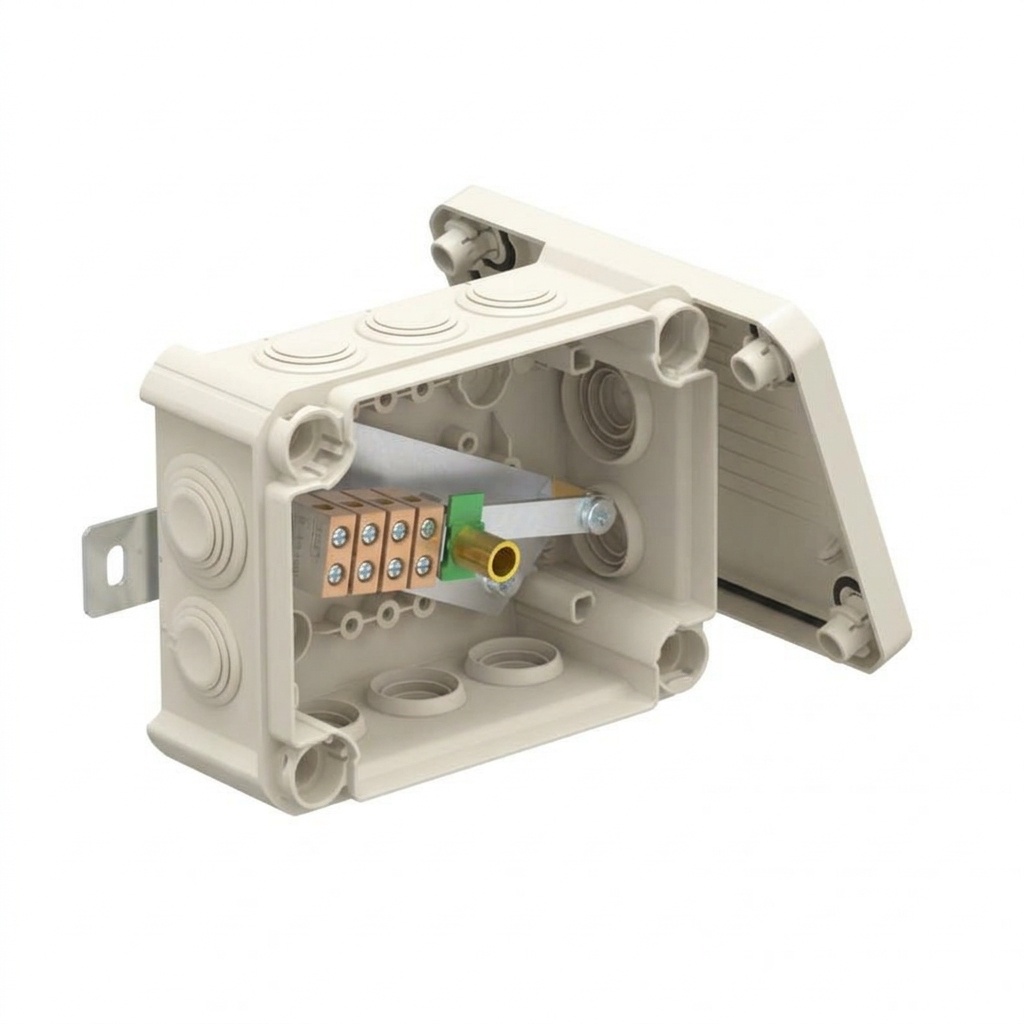

FireBox enclosures keep circuits alive through a fire period: the FireBox T60 and the T100-S, T100-D and T100-F1 with its fuse holder use ceramic terminals, the T100-E is a closed empty box for maintained function, and the T350-DT handles data technology at 4x32. They are the Barqan answer where a project must satisfy Saudi Civil Defense requirements, and they pair with OBO Bettermann BSS fire protection systems for ducts, false ceiling mounting and fire-stop insulation.

Alzab has supported connection and fastening packages on more than 500 projects since 1989, and we can pair an enclosure series with glands, terminals and trays from the OBO Bettermann VBS connection and fastening systems on the same take-off. Compare the Barqan floor boxes category for office and commercial floors, or request a quote through our contact page.
