Floor Boxes

Complete range of Barqan floor boxes and floor sockets for power and data delivery in screed, cavity and raised floors — indoor and outdoor variants.

Back to Barqan

UDHOME Floor Sockets & Floor Boxes

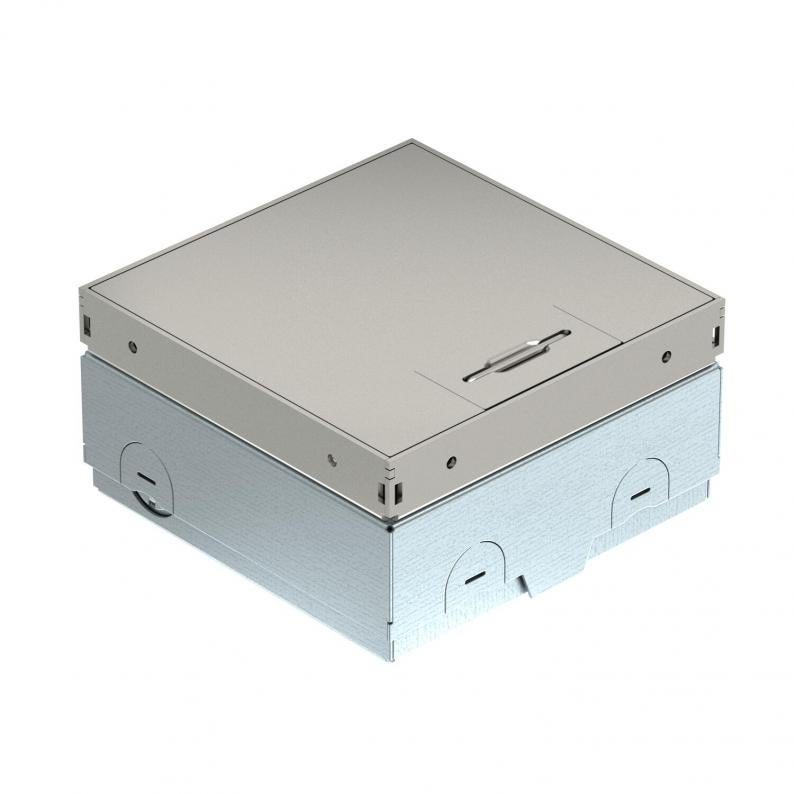

Barqan Compact Floor Socket 140

Barqan Compact Floor Socket 140

140×140 mm compact floor socket for 1 Modul 45 device + 1 data connection; stainless steel or brass cover; cord-outlet and brush-outlet versions.

140×140 mmSS / Brass
Barqan Double Floor Socket 140

Barqan Double Floor Socket 140

140×140 mm double floor socket for 2 Modul 45 devices + 2 data connections; freely equippable, VDE or NF versions; six designer finishes.

140×140 mm2× Modul 45
Barqan Double Floor Socket 140 Tube Body

Barqan Double Floor Socket 140 Tube Body

140×140 mm wet-care floor socket with height-adjustable tube body and lowerable cable exit; pre-installed double VDE socket; stainless steel decorative plate; IK10; IP20/IP65; 3000/15000 N load.

140×140 mmDouble VDEWet-care

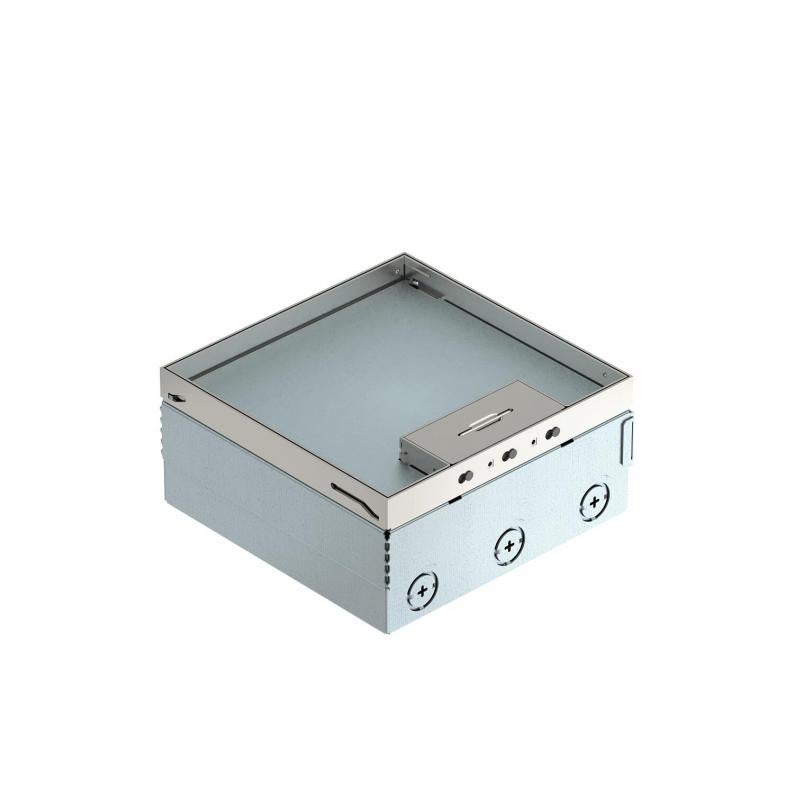

Barqan Floor Box 202 UT V

Barqan Floor Box 202 UT V

202×202 mm floor box with two UT3 45 3 universal supports and pre-installed triple VDE socket; stainless steel cover; screed height 95–110 mm; IK10; 3000/5000 N vertical load.

202×202 mmUT3 45 3Triple VDE

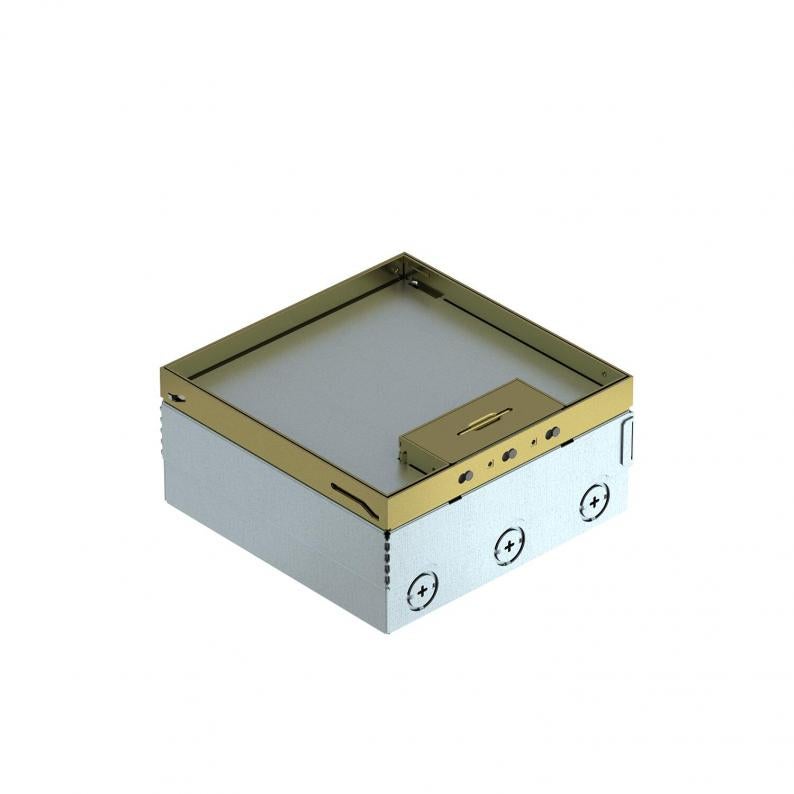

Barqan Floor Box 202 Brass

Barqan Floor Box 202 Brass

202×202 mm floor box, freely equippable empty housing for 2× UT3 universal supports / 6 Modul 45 devices; brass cover; screed height 95–110 mm; IK10; 3000/5000 N vertical load.

202×202 mmBrassFreely equippable

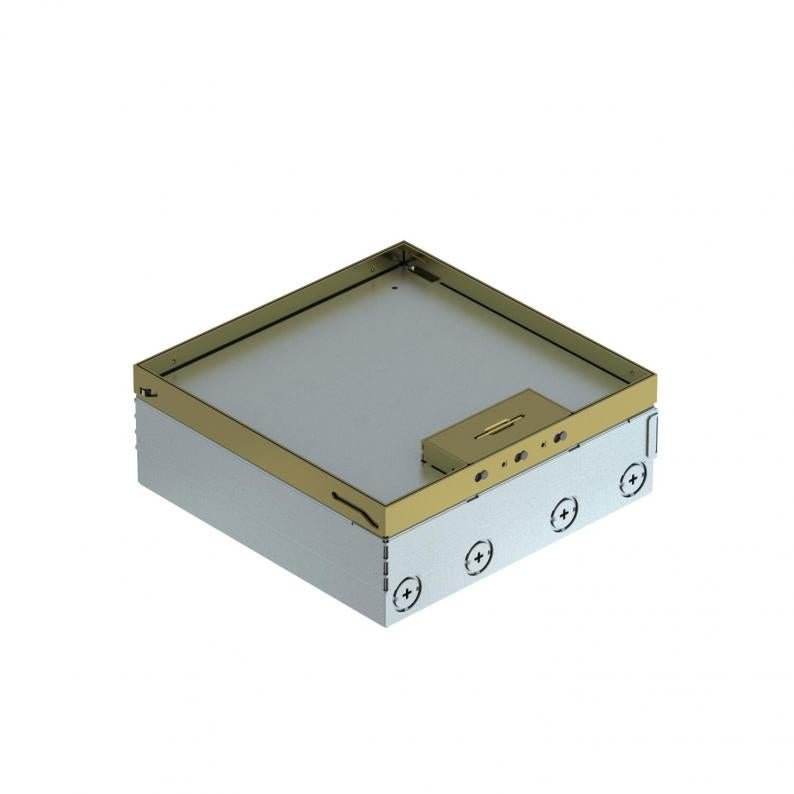

Barqan Floor Box 264 Brass

Barqan Floor Box 264 Brass

246×246 mm floor box, freely equippable empty housing for 3× UT4 universal supports / 12 Modul 45 devices; brass cover; screed height 95–110 mm; IK10; 3000/5000 N vertical load.

246×246 mmBrassFreely equippable

Barqan floor boxes deliver power and data through raised, screed and finished floors in offices, hotels, conference rooms and commercial spaces, and Alzab Algharbiyah supplies the range across Saudi Arabia from our Dammam base. Five families cover the work: UDHome floor sockets and floor boxes, UDS underfloor boxes, UK-style service outlets, GES R2 round floor sockets and the GES9 screed box. Each family sits under the Barqan brand page inside our products directory, and every enclosure can be scheduled through our team.

UDHome Floor Sockets and Floor Boxes

UDHOME starts with the compact floor socket 140 and the double floor socket 140, a 140x140 mm unit taking two Modul 45 devices plus two data connections, freely equippable in VDE or NF versions and offered in six designer finishes. The double socket tube body variant suits deeper floor build-ups, while the Floor Box 202 UT V and the 202 and 264 brass boxes specify metal covers for premium interiors where the floor finish is part of the design.

UDS Underfloor Boxes

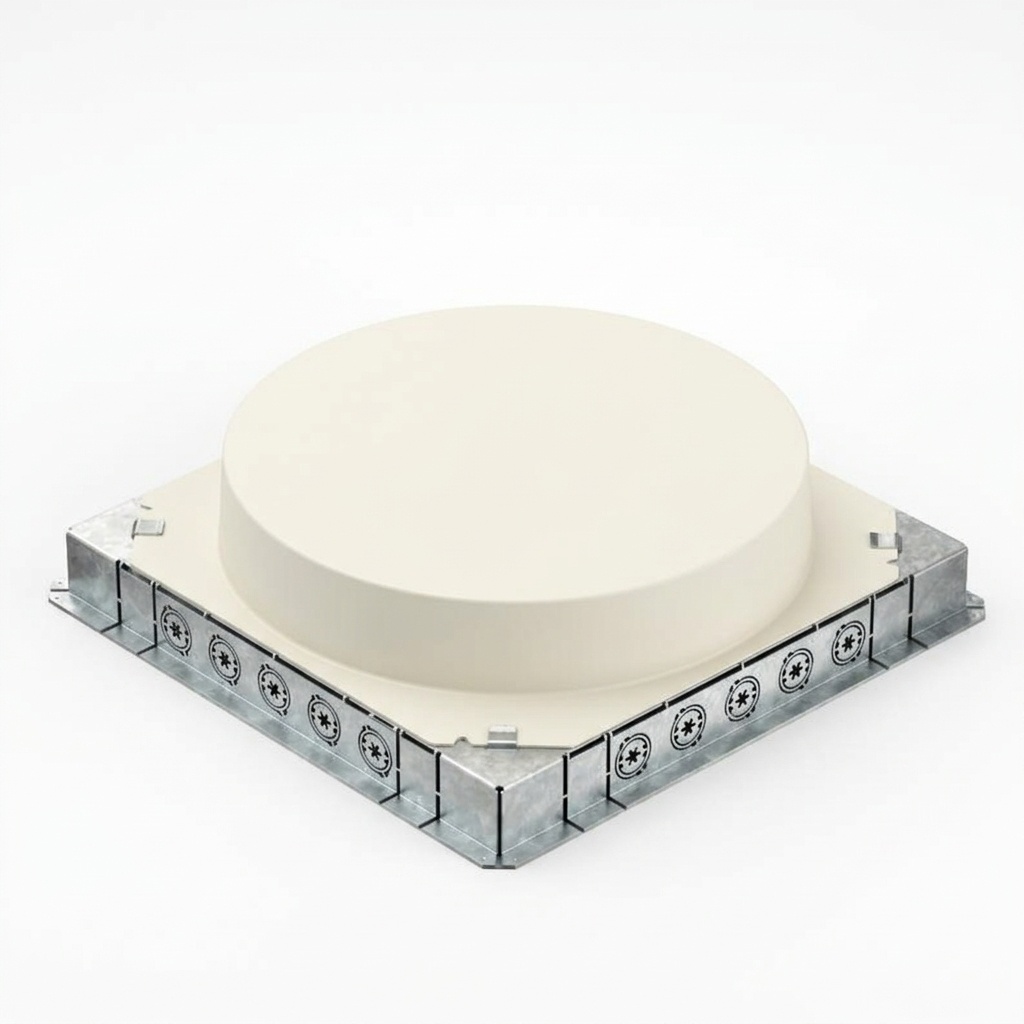

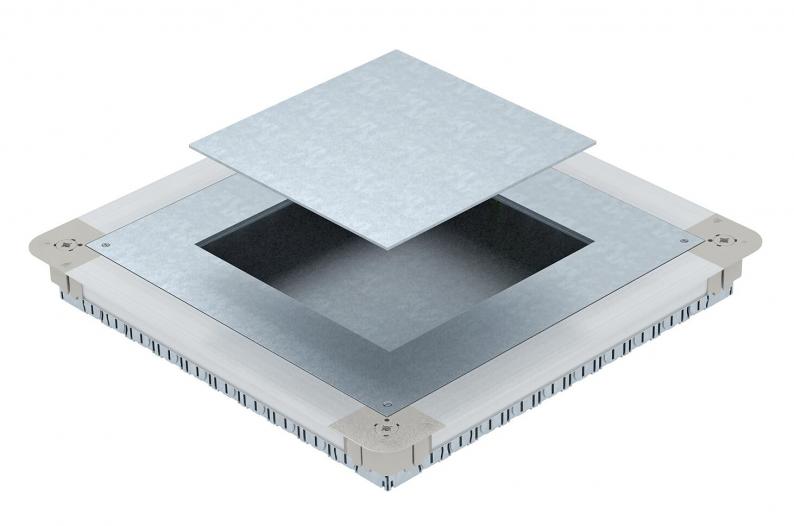

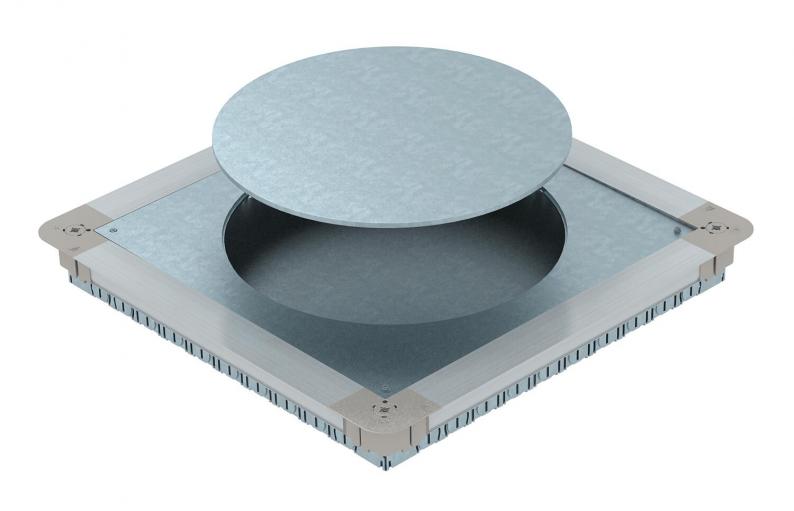

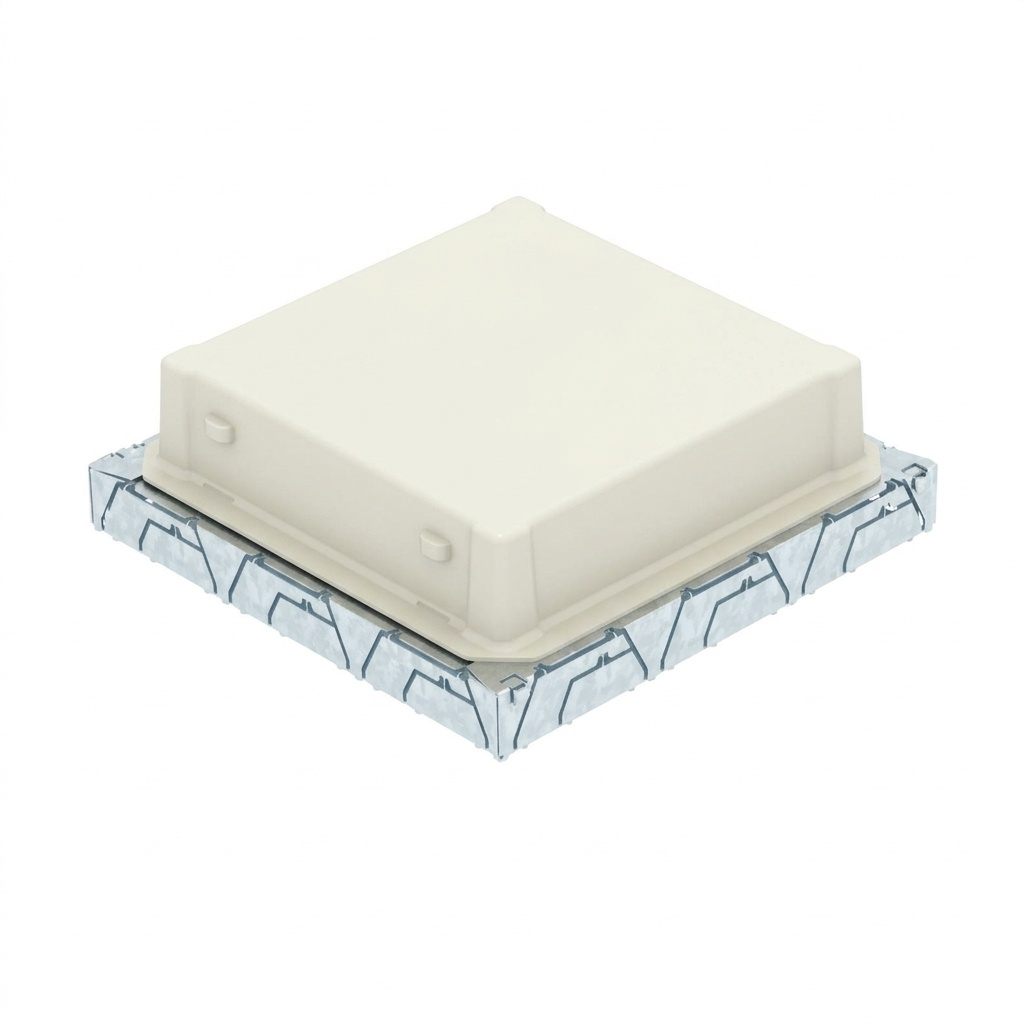

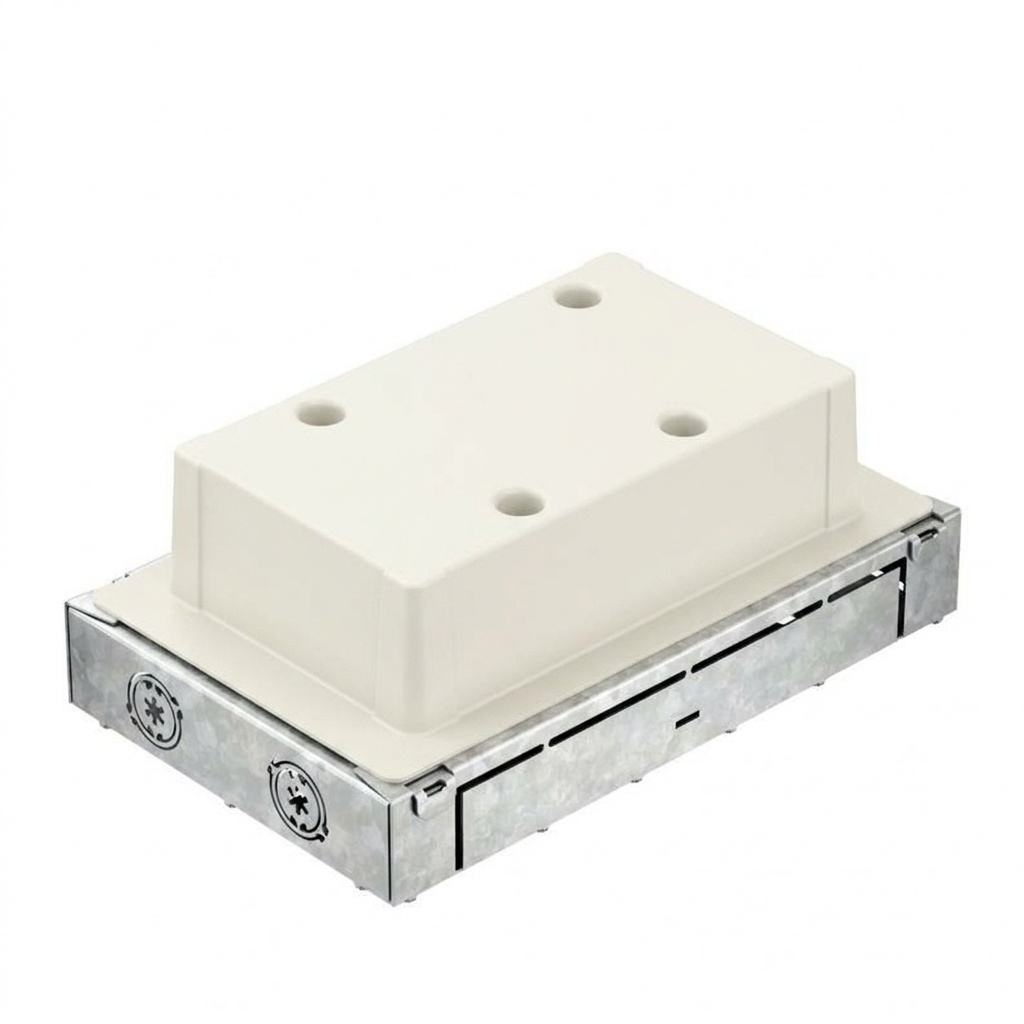

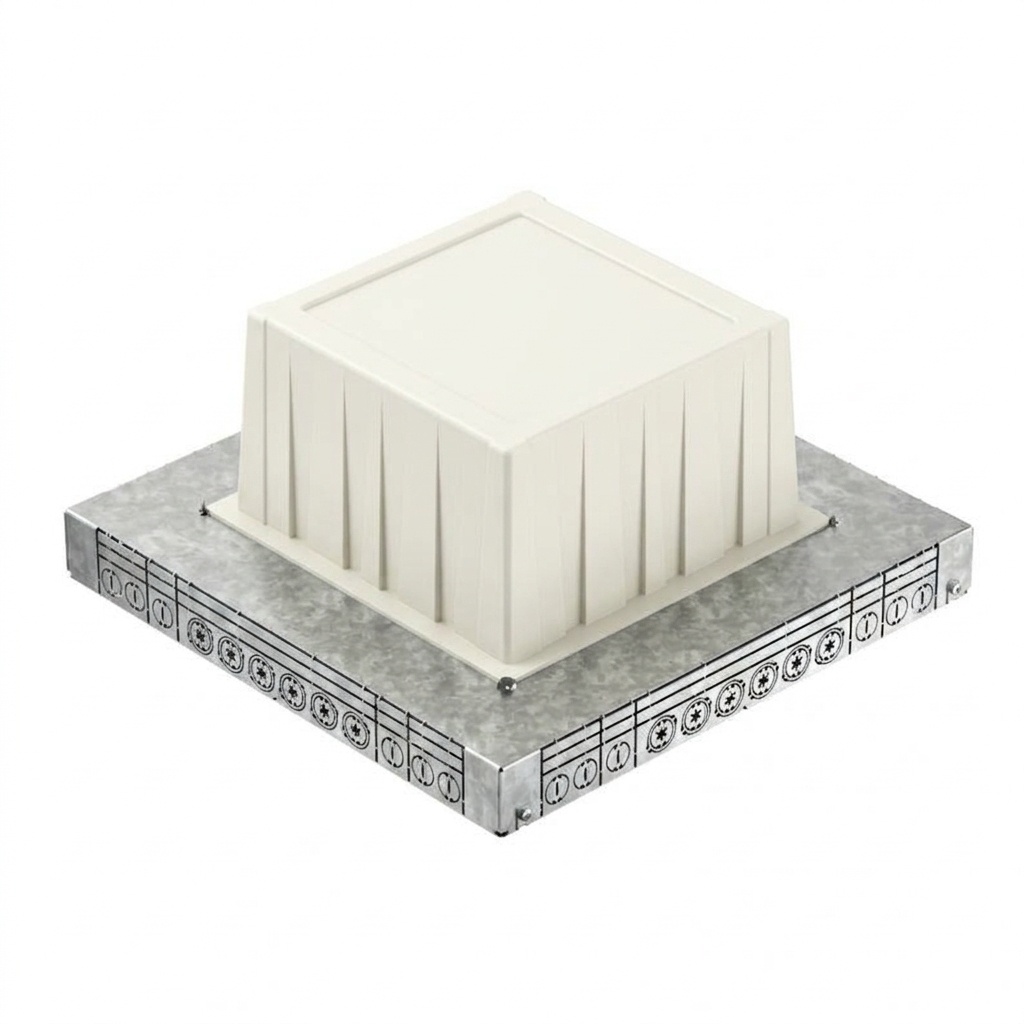

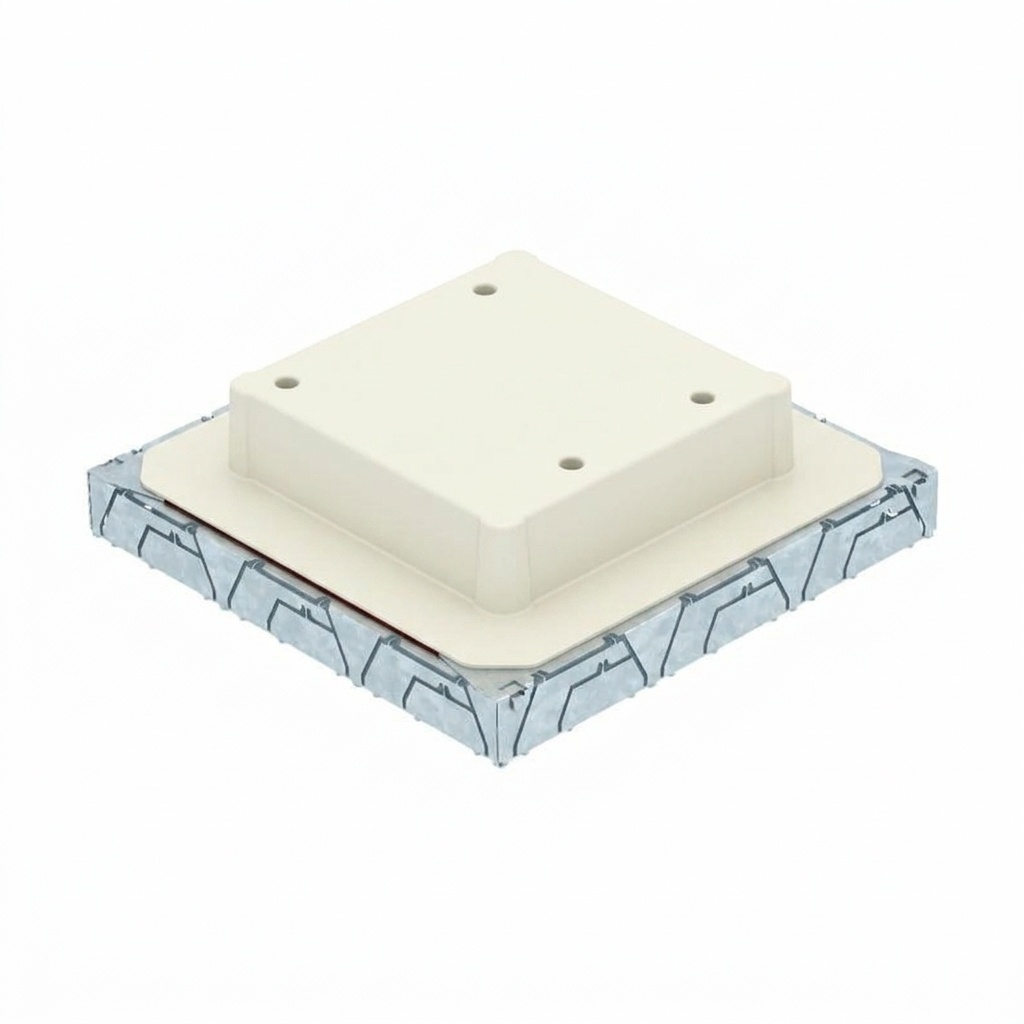

UDS underfloor boxes are screed-covered enclosures: nominal sizes U2 and U4 take installation pipe or metal duct, U9 and the round UR9 take larger duct banks, the underfloor connection socket closes runs in screed floors, and the UGD350-3 R9 and UGD350-3 9 extend the same platform for larger distributions beneath screed and raised floors.

Service Outlets

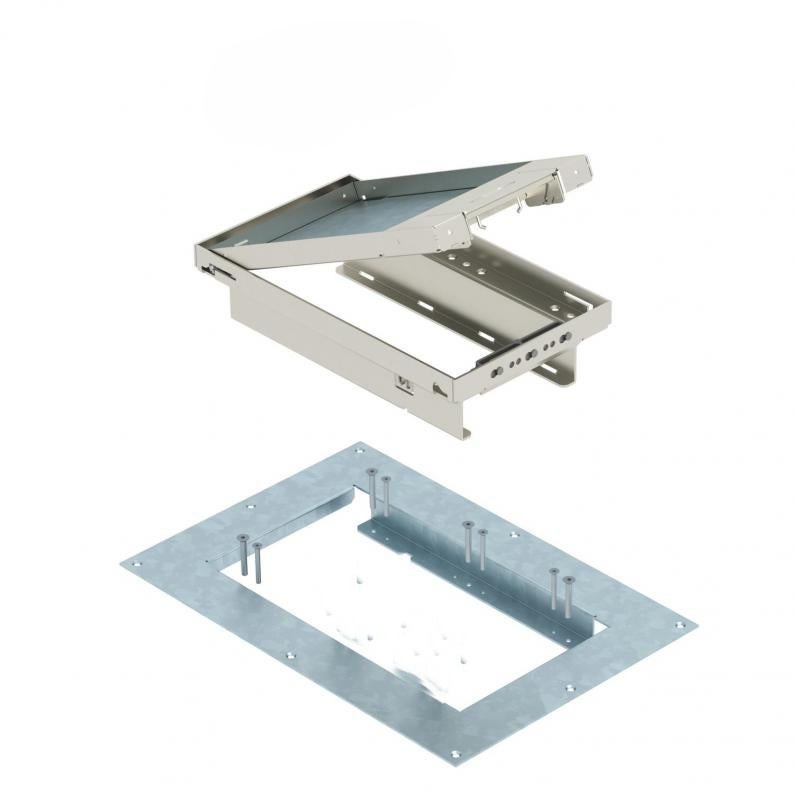

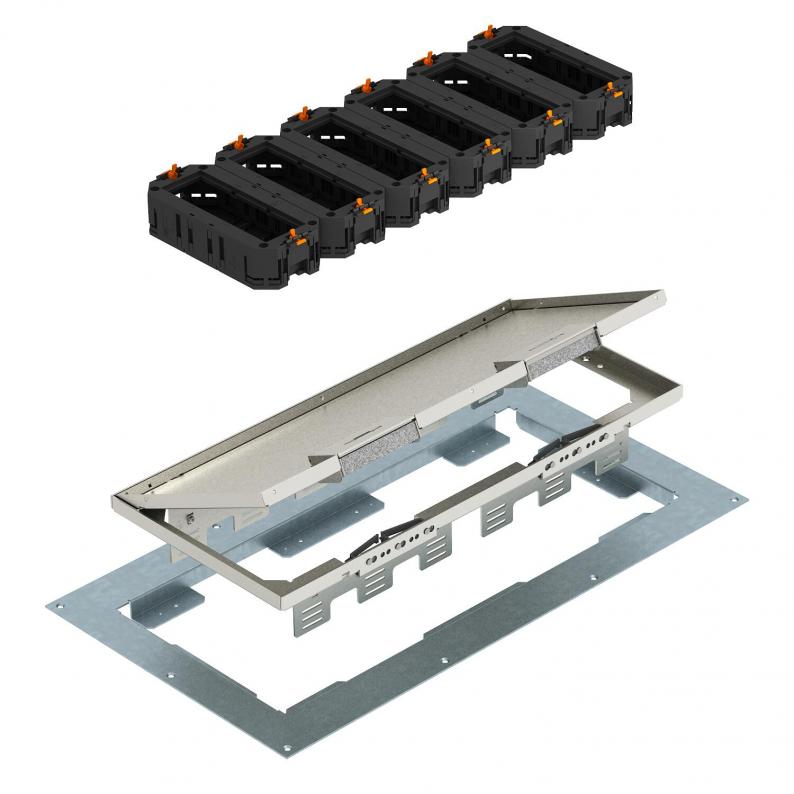

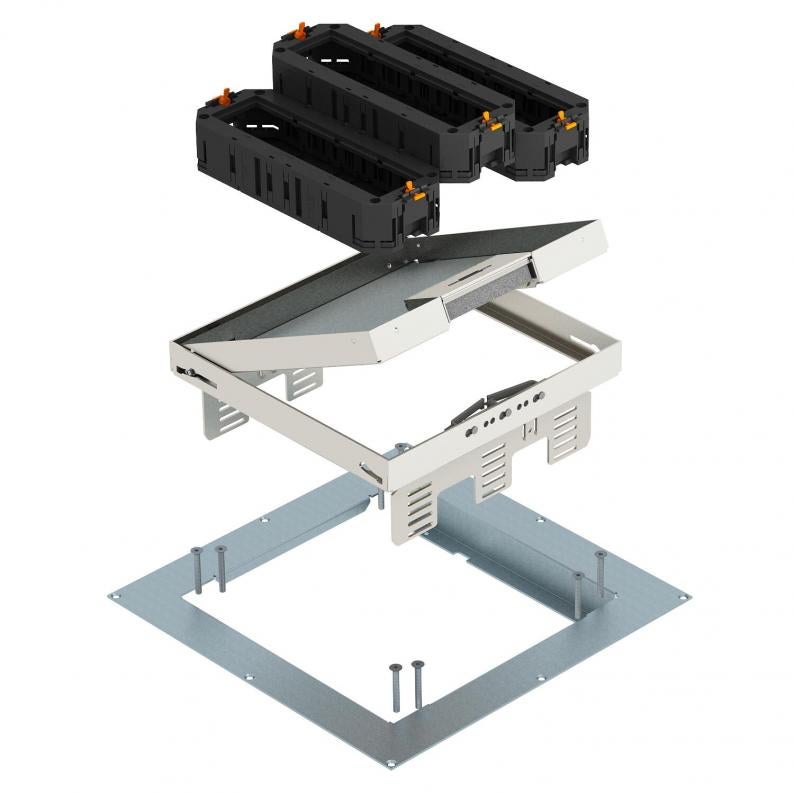

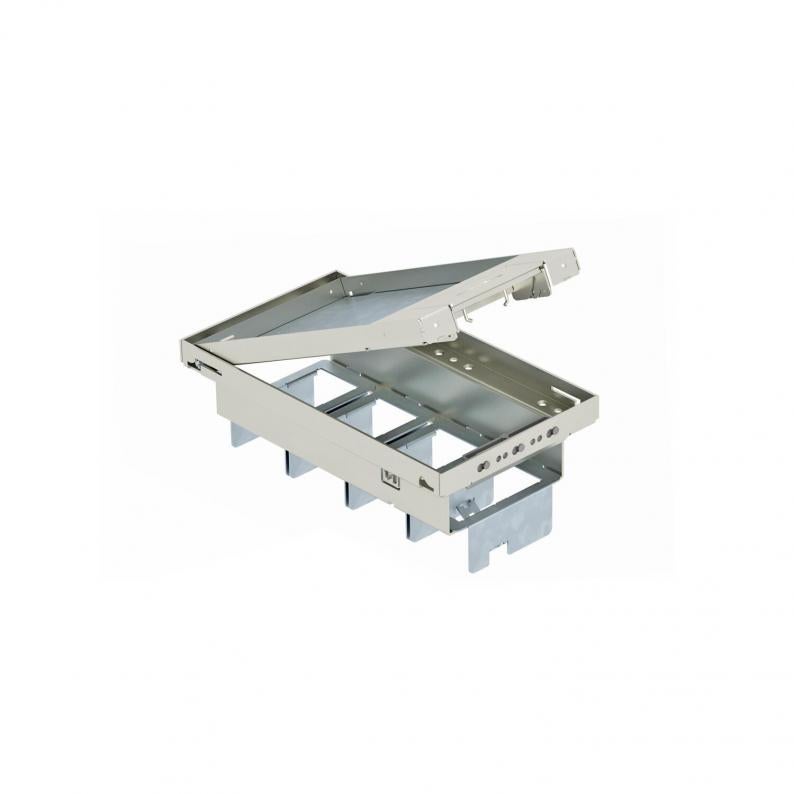

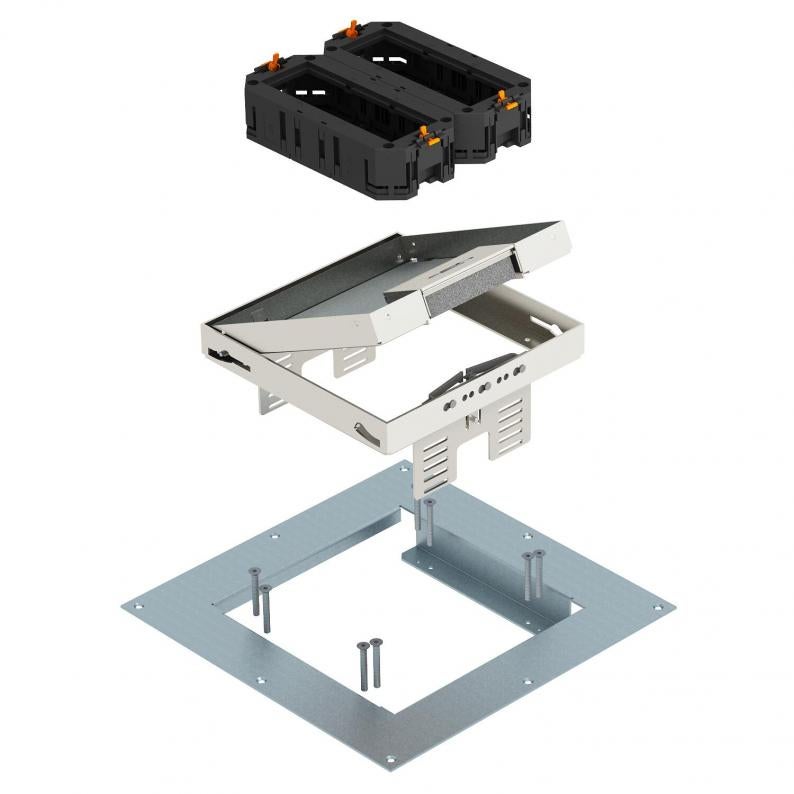

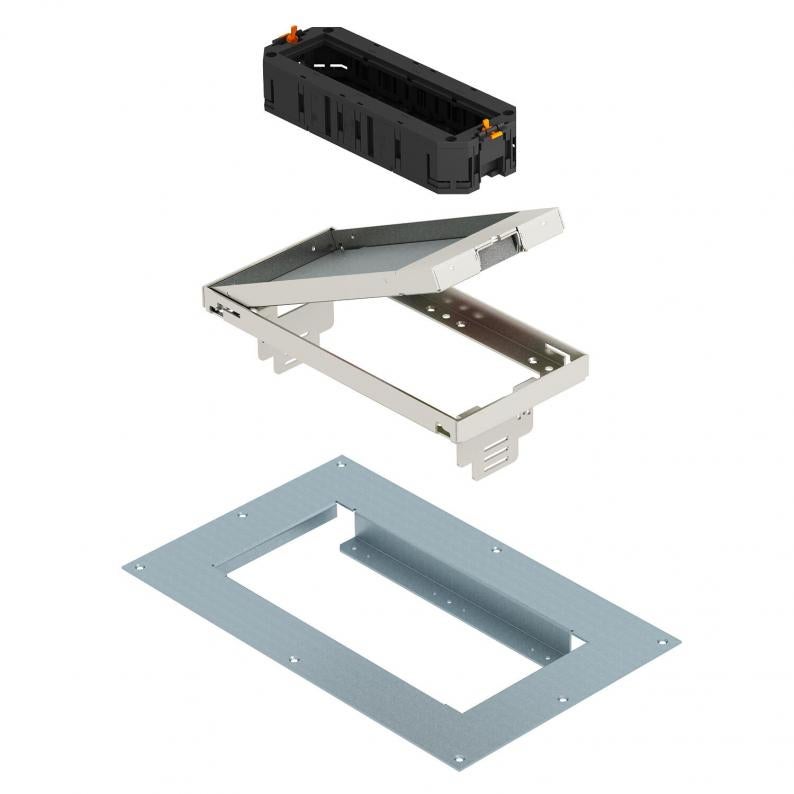

The UK service outlet group covers BQ4 and BQ8 units in BQL4 and BQL8 sizing, the BQ4-T with a UT4 45 device support, the BQ8-KR with four mounting supports for secure floor fixing, the BQ-2 500 for 500-series raised floors, and RK4 and RK9 outlets supplied with UT3 and UT4 device supports.

GES R2 Round Floor Sockets

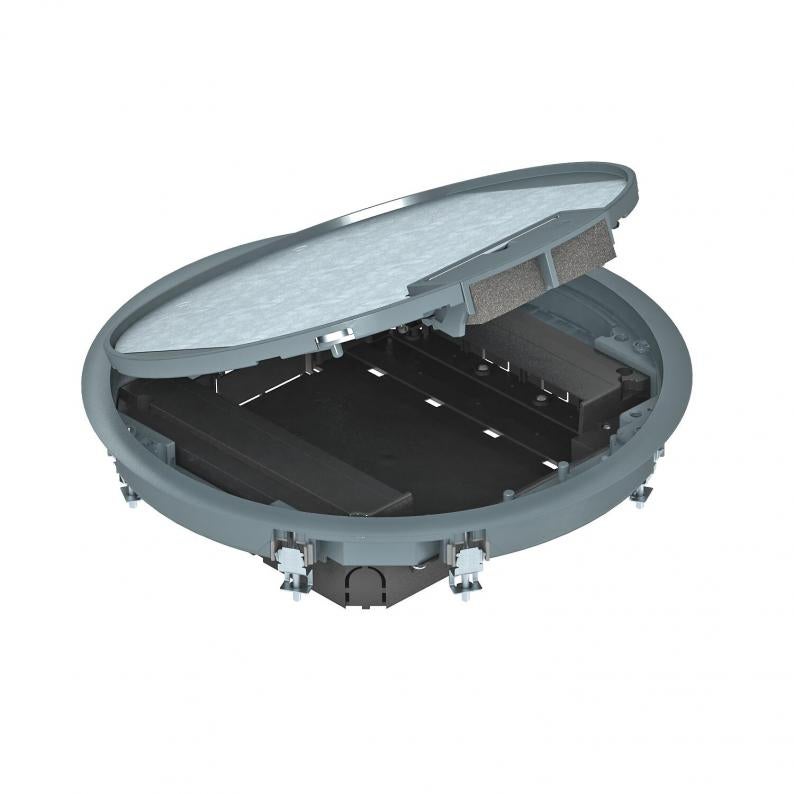

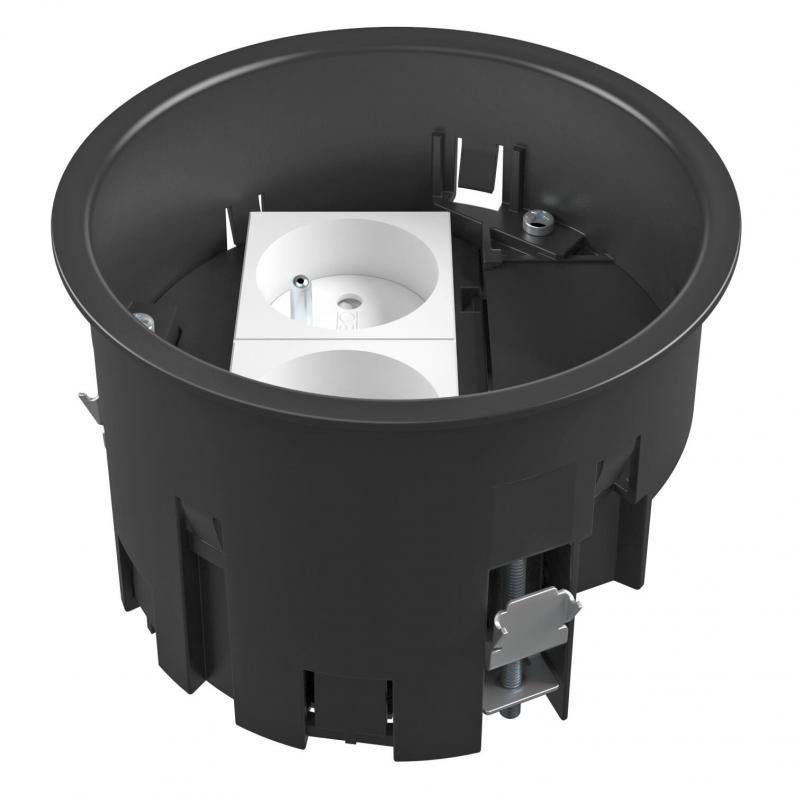

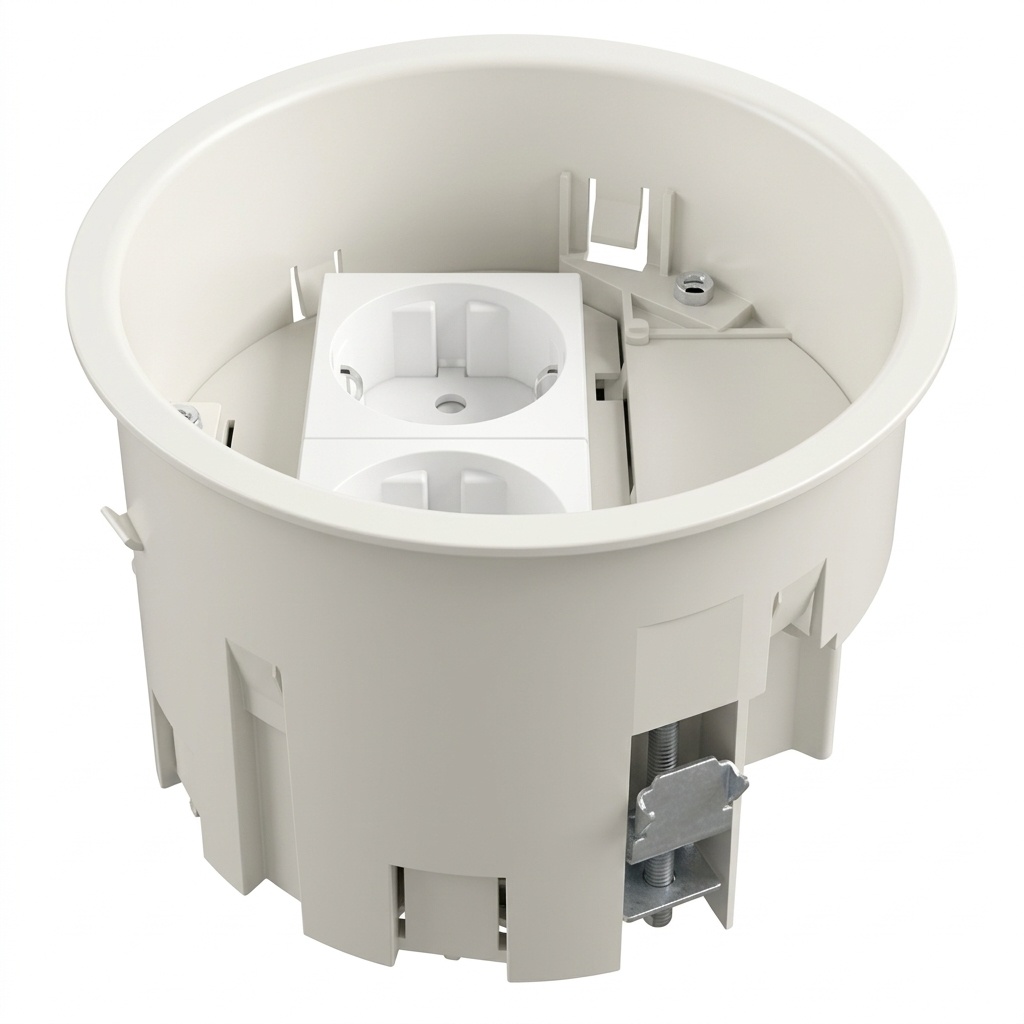

GES R2 round floor sockets ship pre-equipped: the 2V carries two VDE protective-contact sockets, the 2N carries two NF sockets, and the R9 Screed 55 variant closes deeper screed builds. A matching replacement lid keeps finished floors consistent when devices are changed during a refit.

GES9 Screed Box

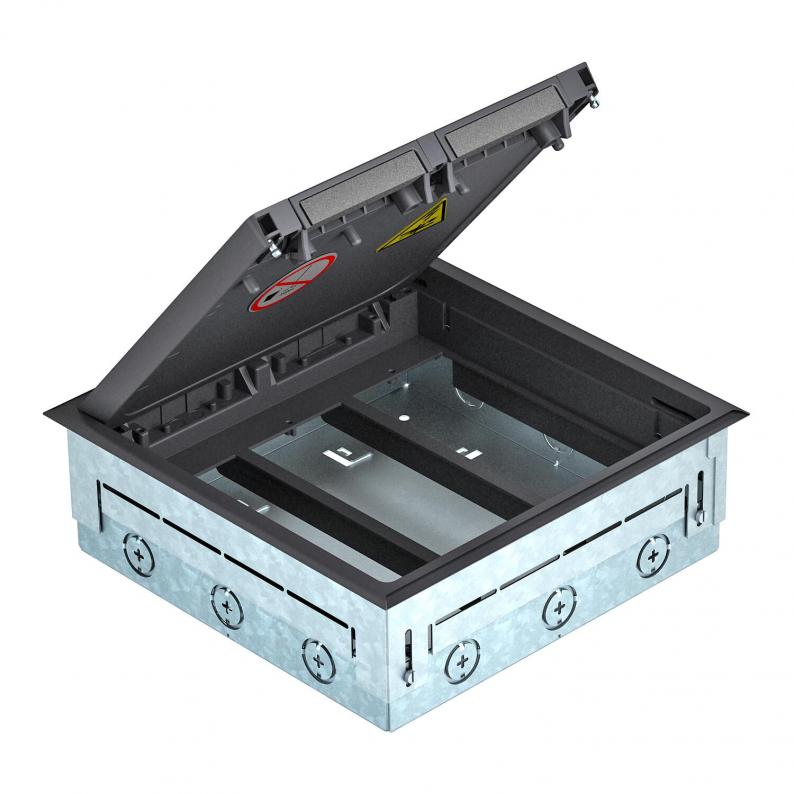

The GES9 screed box is a 264x264x135 mm enclosure with three UT4 universal supports accepting up to twelve devices, rated IK08 and IP20/IP40, and the G9 screed box is the matching enclosure for the same layout.

Underfloor work rarely ships on its own, so Alzab can combine floor boxes with the Barqan junction boxes category for the connection points above them, and with OBO Bettermann UFS underfloor systems, where plastic and metal service outlets, floor sockets and underfloor ducts sit alongside. For specialty floorboxes, power towers and cover materials engineered in Italy, see VMR, and request a quote for your floor plan.
